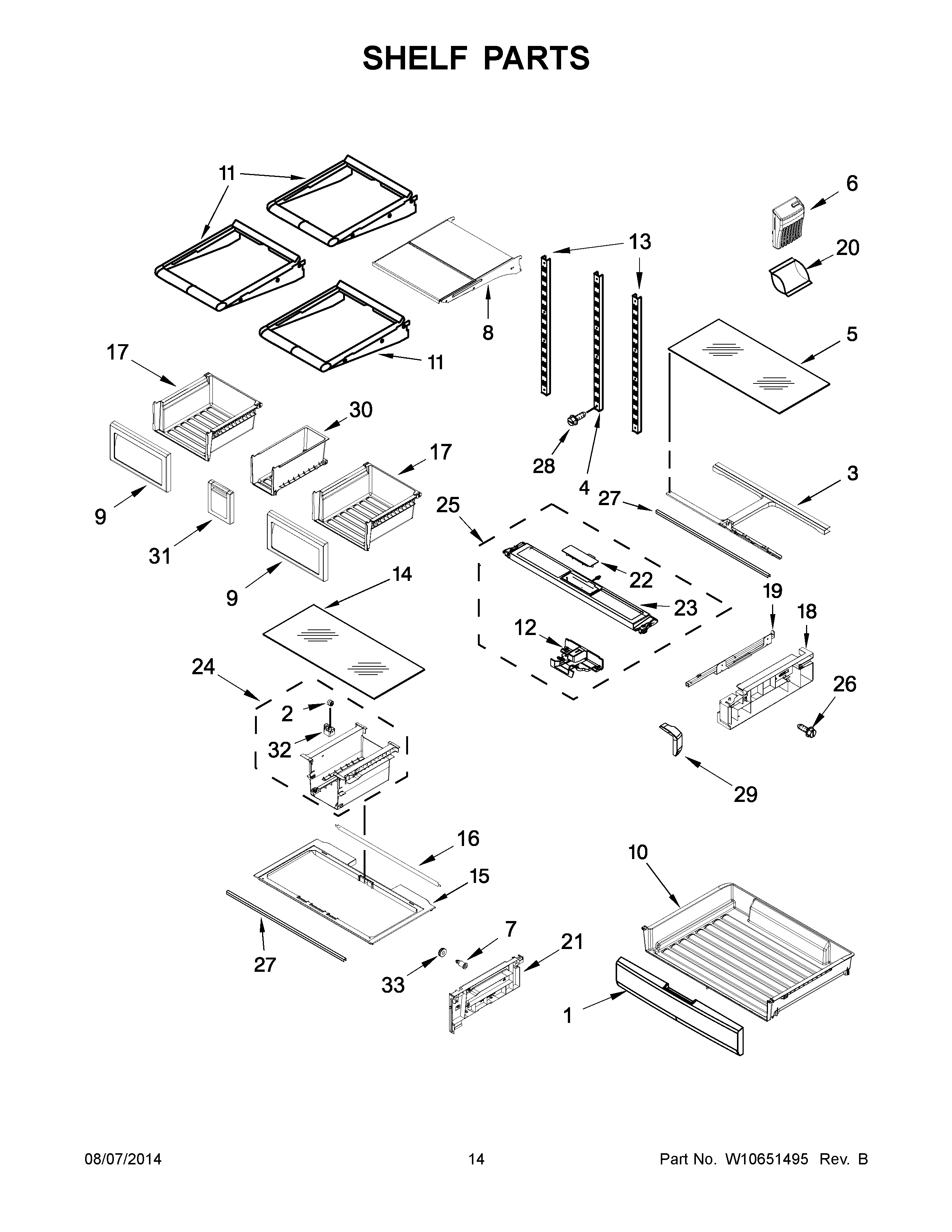

WRF736SDAF12 08 – SHELF PARTS

WRF736SDAF12 08 – SHELF PARTS

Written by

in

WRF736SDAF12 08 – SHELF PARTS

Products

PositionProduct
1WPW10510417 Whirlpool Refrigerator Front Pan
2W10248789 Whirlpool Refrigerator Roller
3W10515051 Whirlpool Refrigerator Support
4W11690685 Whirlpool Ladder
5WPW10628815 Whirlpool Refrigerator Glass Shelf
6WPW10408747 Whirlpool Refrigerator Housing
7WPW10257246 Whirlpool Refrigerator Axle
8TOP SHELF ASSEMBLY
9WPW10688114 Whirlpool Drawer Front
10WPW10654844 Whirlpool Storage Drawer
11W11540779 Whirlpool Glass Shelf
12W10512596 Whirlpool Refrigerator Knob
13LADDER
14GLASS, CRISPER
15WPW10423799 Whirlpool Refrigerator Crisper Cover
16WPW10248967 Whirlpool Refrigerator Support
17PAN-CRISPR
18AW10248796 Whirlpool Refrigerator Plate
18PLATE, SIDE PANTRY (LEFT HAND)
19W10508327 Whirlpool Refrigerator Slide
19AW10508326 Whirlpool Refrigerator Slide
20W10346771A Whirlpool Fresh Flow Produce Preserver
21W11173721 Whirlpool Refrigerator Plate
21AW11209881 Whirlpool Support Drawer
22HOUSING, PANTRY TEMP CONTROL
23WPW10554285 Whirlpool Refrigerator Cover
24W10662015 Whirlpool Drawer Support Assembly
25W10554293 Whirlpool Refrigerator Cover
26W10185612 Whirlpool Screw
27WPW10236512 Whirlpool Refrigerator Support
28W10423560 Whirlpool Refrigerator Screw
29W10248852 Whirlpool Refrigerator Trim
29AW10248851 Whirlpool Refrigerator Trim
30WPW10387778 Whirlpool Refrigerator Crisper Pan
31W11218695 Whirlpool Refrigerator Front Pan
32W10530314 Whirlpool Refrigerator Housing
33WPW10248544 Whirlpool Refrigerator Roller
