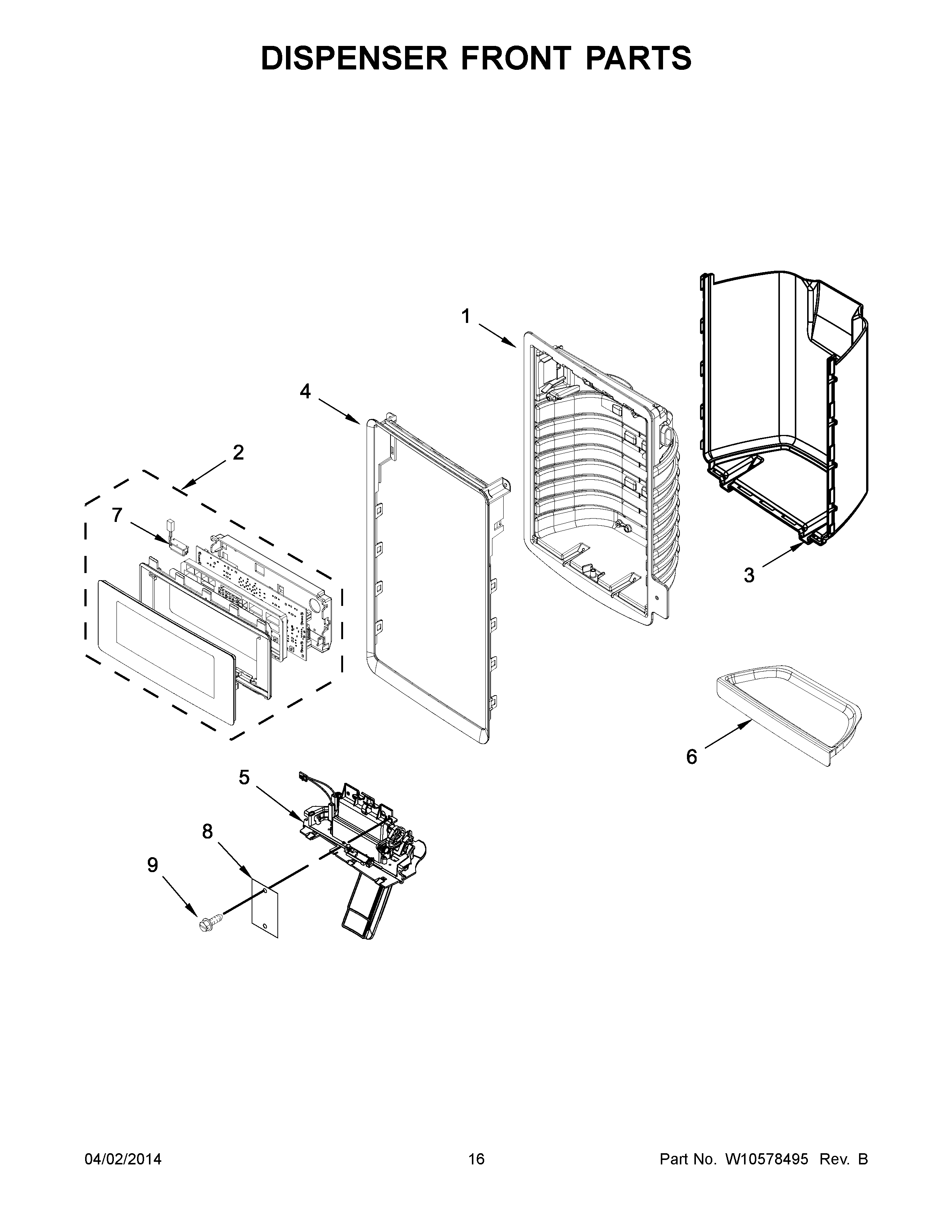

WRF736SDAM10 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10865870 Whirlpool Refrigerator Electronic Control Board + Core
2	W10864261-includeCORE Whirlpool W10864261 Refrigerator Electronic Control Board + Core
3	FALSE WALL, DISPENSER (GREY)
3	W10488322 Whirlpool Refrigerator Separator
3	WALL, DISPENSER FALSE (WHITE)
4	W10462438 Whirlpool Refrigerator Ring Connector
4	W10462439 Whirlpool Refrigerator Trim
4	W10424567 Whirlpool Refrigerator Display Trim
5	W11175839 Whirlpool Refrigerator Ice Door
5	WPW10616133 Whirlpool Refrigerator Separator
5	WPW10616134 Whirlpool Refrigerator Ice Door
6	W10606644 Whirlpool Refrigerator Drip Tray
6	TRAY, DRIP (BLACK)
6	WPW10606639 Whirlpool Refrigerator Drip Tray
7	W11290115 Whirlpool Refrigerator Light
8	SHIELD, SEPARATOR
9	WPW10272364 Whirlpool Refrigerator Screw
