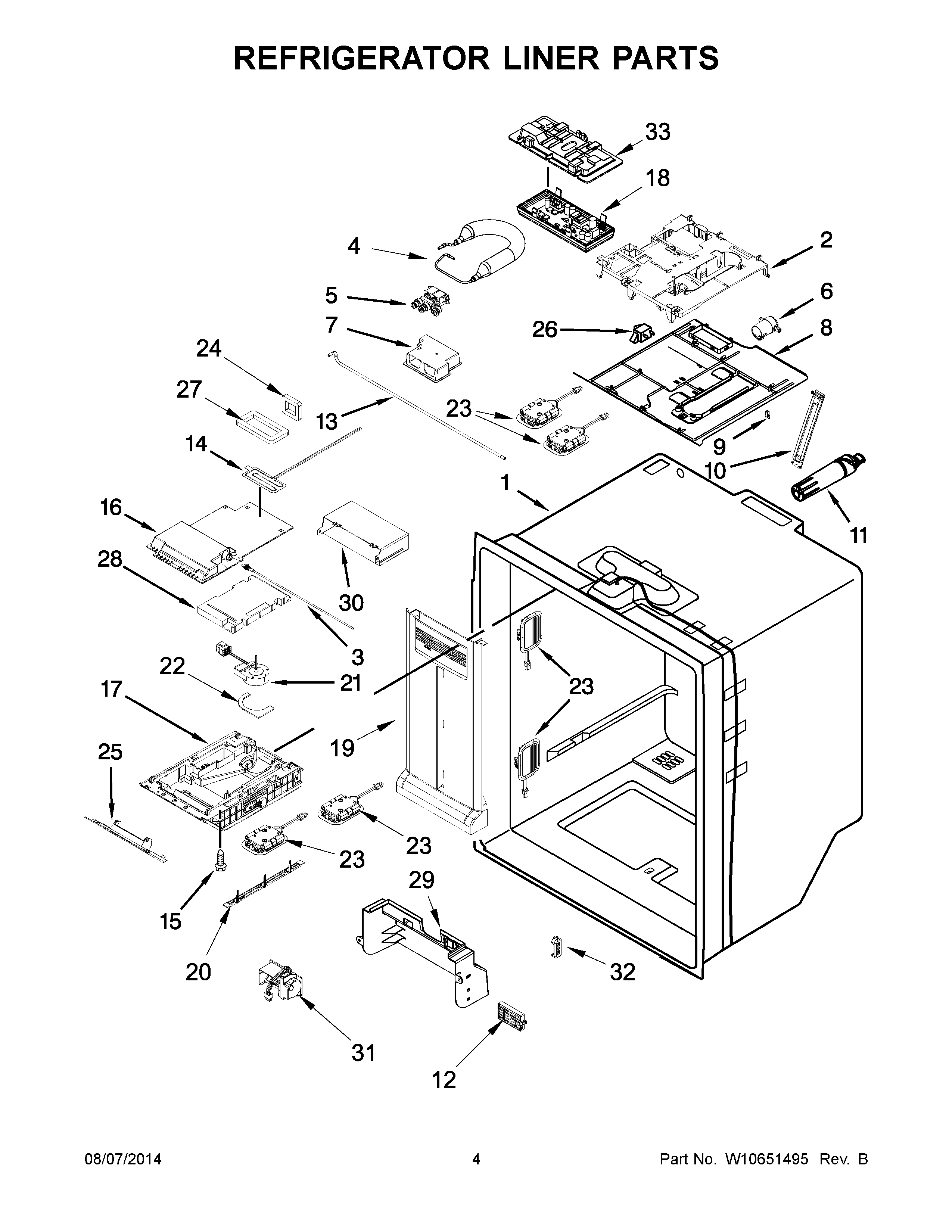

WRF736SDAM12 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W10570726 Whirlpool Refrigerator Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10859326 Whirlpool Refrigerator Wire Harness
2	W10842950 Whirlpool Refrigerator Housing
3	W11686799 Whirlpool Refrigerator Water Tube
4	W11168758 Whirlpool Reservoir
5	WPW10341329 Whirlpool Refrigerator Water Valve Assembly
6	W11194438 Whirlpool Water Filter Housing
7	W10811115 Whirlpool Refrigerator Cover
8	COVER, WATER BOX
9	WP2223877 Whirlpool Door Hook
10	WPW10277949 Whirlpool Refrigerator Filter Cover
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11686800 Whirlpool Water Tube
14	HEATER
15	WP67006908 Whirlpool Refrigerator Screw
16	WPW10598013 Whirlpool Refrigerator Cover
17	ICEBOX ASSEMBLY
18	WPW10524406-includeCORE Whirlpool WPW10524406 Refrigerator Electronic Control Board + Core
19	W11373854 Whirlpool Refrigerator Air Tower
20	W10515072 Whirlpool Refrigerator Trim
21	FAN-EVAPORATOR
22	WPW10392172 Whirlpool Refrigerator Gasket
23	WPW10456436 Whirlpool Refrigerator Module
24	WPW10320706 Whirlpool Refrigerator Gasket
25	W11637688 Whirlpool Heater
26	W11384469 Whirlpool Door Switch
27	WPW10280988 Whirlpool Refrigerator Gasket
28	WPW10280983 Whirlpool Refrigerator Insulation
29	COVER, DAMPER
30	WPW10635023 Whirlpool Refrigerator Adapter
31	CONTROL
32	W11238397 Whirlpool Refrigerator Cover
33	W11416813 Whirlpool Microwave Housing
