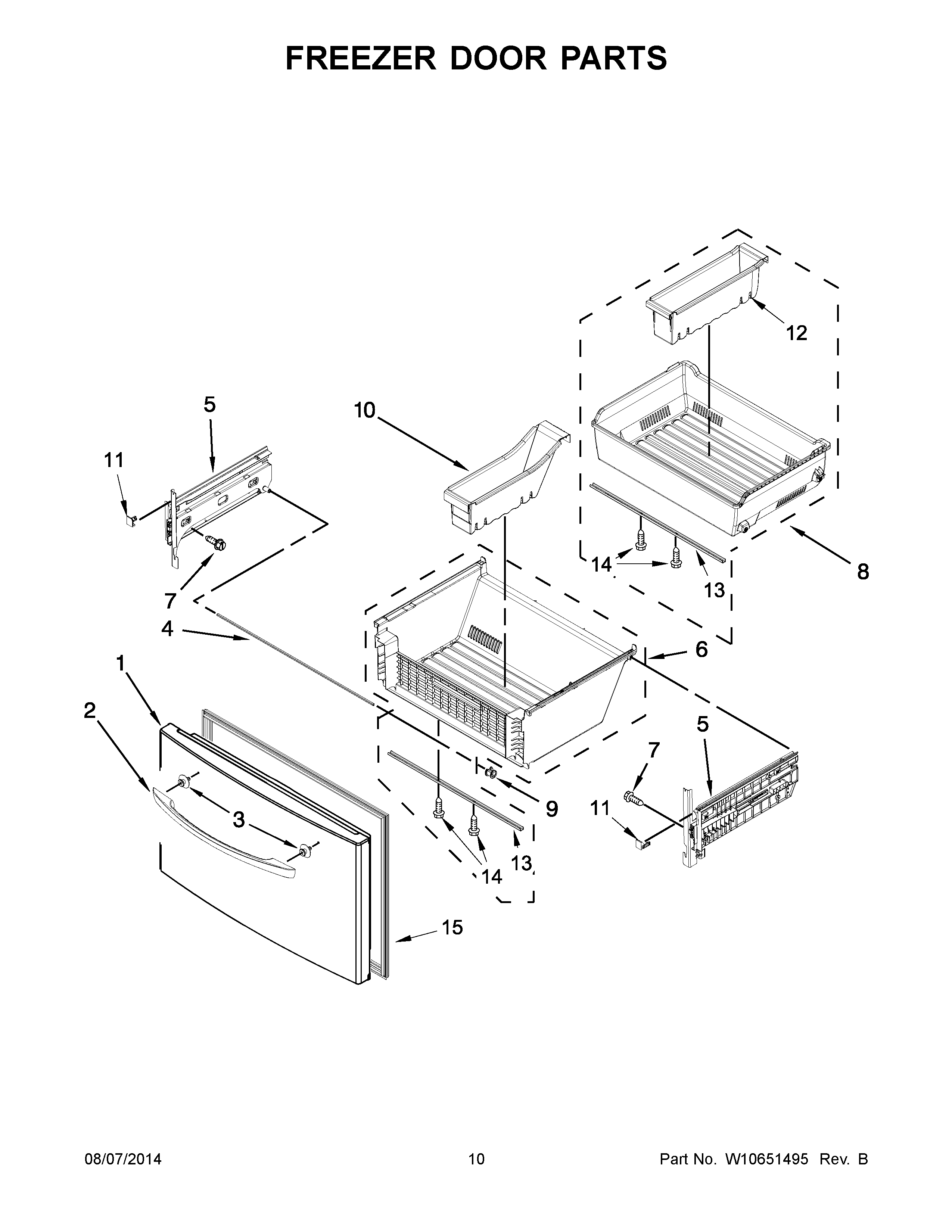

WRF736SDAM12 06 – FREEZER DOOR PARTS

WRF736SDAM12 06 – FREEZER DOOR PARTS

Written by

in

WRF736SDAM12 06 – FREEZER DOOR PARTS

Products

PositionProduct
1CDOOR, FREEZER (SPARKLE STEEL)
1DOOR, FREEZER (INCLUDES ITEM 15) (WHITE)
1BFREEZER DOOR (STAINLESS)
1ADOOR, FREEZER (INCLUDES ITEM 15) (BLACK)
2AW10719668 Whirlpool Refrigerator Handle
2BW10827046 Whirlpool Door Handle
2W10548944 Whirlpool Refrigerator Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4W10503521 Whirlpool Refrigerator Shaft Assembly
5W11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6ASSEMBLY, LOWER PAN
7WP67006908 Whirlpool Refrigerator Screw
8PAN ASSEMBLY, UPPER
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11WPW10485096 Whirlpool Refrigerator Pan Stop
11AWPW10485089 Whirlpool Refrigerator Pan Stop
12WPW10485654 Whirlpool Refrigerator Divider
13W11677723 Whirlpool Support
14WP489443 Whirlpool Refrigerator Screw
15AW10407215 Whirlpool Door Gasket
15BGASKET-FIP GRAY
15W10638486 Whirlpool Refrigerator Door Gasket
