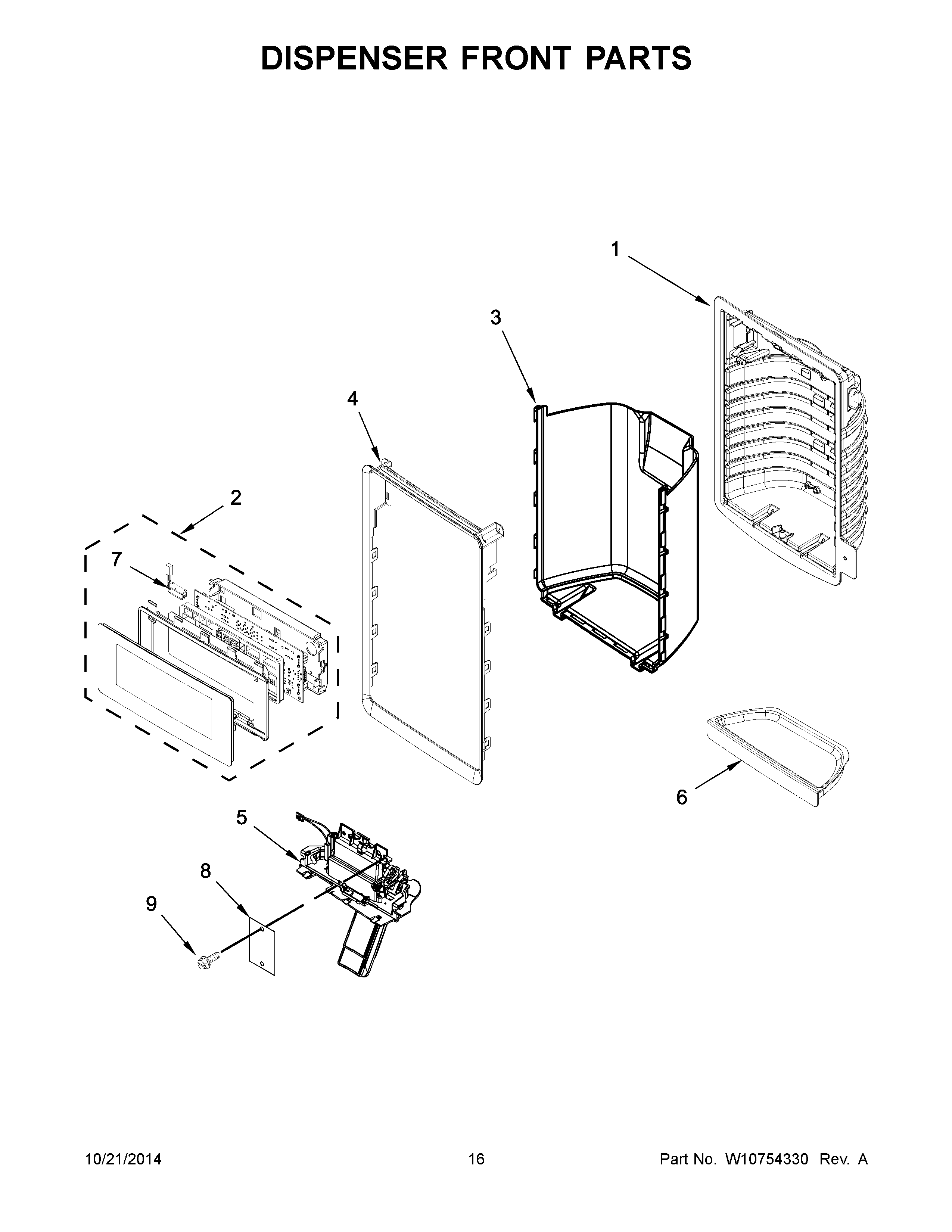

WRF736SDAM13 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10864261-includeCORE Whirlpool W10864261 Refrigerator Electronic Control Board + Core
3	WALL, DISPENSER FALSE (WHITE)
3A	FALSE WALL, DISPENSER (GREY)
4	W10462438 Whirlpool Refrigerator Ring Connector
4A	WPW10402180 Whirlpool Refrigerator Trim
5	W11175839 Whirlpool Refrigerator Ice Door
5A	WPW10616134 Whirlpool Refrigerator Ice Door
6A	WPW10606639 Whirlpool Refrigerator Drip Tray
6	W10606644 Whirlpool Refrigerator Drip Tray
7	W11290115 Whirlpool Refrigerator Light
8	SHIELD, SEPARATOR
9	WPW10272364 Whirlpool Refrigerator Screw
