WRF736SDAW13 09 – DISPENSER FRONT PARTS

WRF736SDAW13 09 – DISPENSER FRONT PARTS

Written by

in

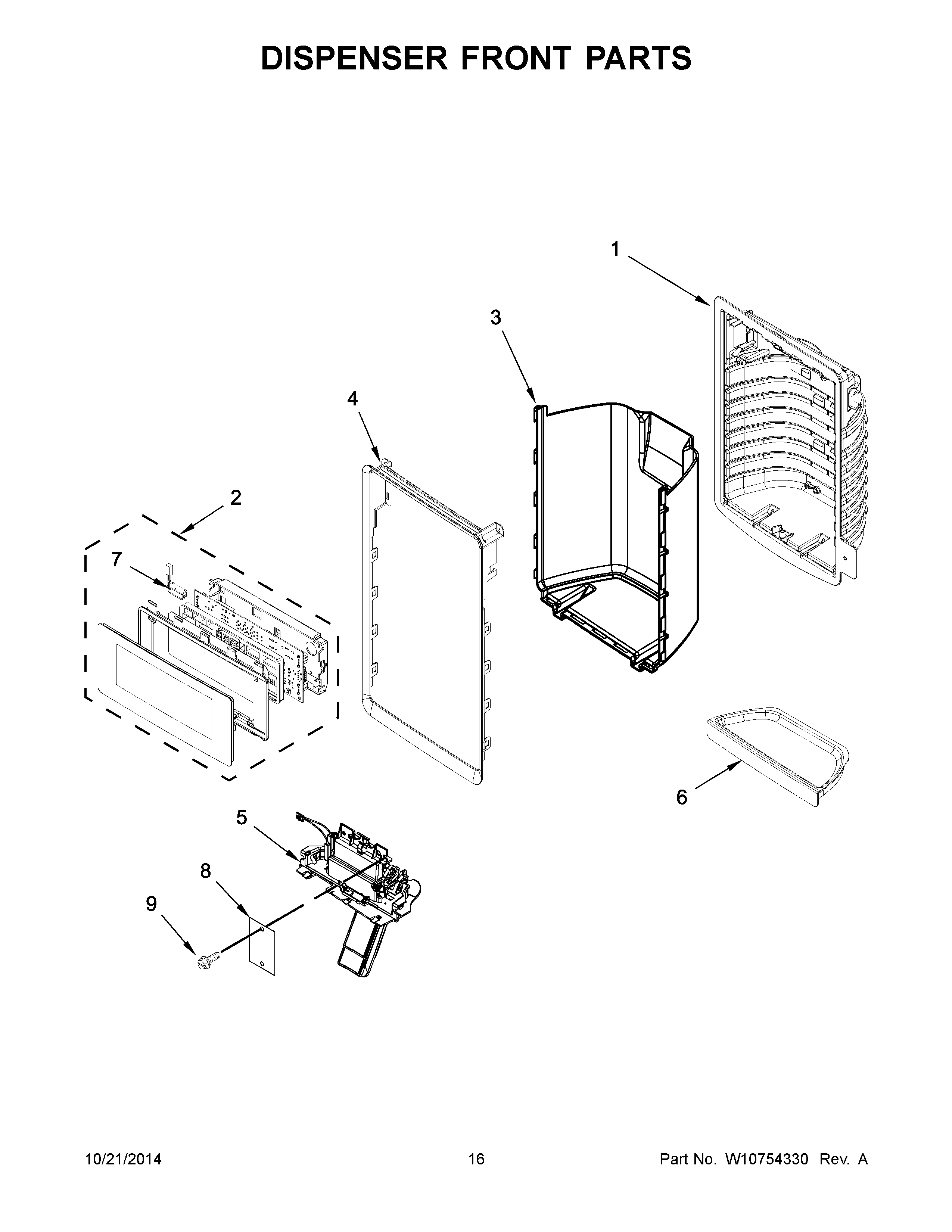

WRF736SDAW13 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10864261-includeCORE Whirlpool W10864261 Refrigerator Electronic Control Board + Core
3WALL, DISPENSER FALSE (WHITE)
3AFALSE WALL, DISPENSER (GREY)
4W10462438 Whirlpool Refrigerator Ring Connector
4AWPW10402180 Whirlpool Refrigerator Trim
5W11175839 Whirlpool Refrigerator Ice Door
5AWPW10616134 Whirlpool Refrigerator Ice Door
6AWPW10606639 Whirlpool Refrigerator Drip Tray
6W10606644 Whirlpool Refrigerator Drip Tray
7W11290115 Whirlpool Refrigerator Light
8SHIELD, SEPARATOR
9WPW10272364 Whirlpool Refrigerator Screw
