WRF757SDEE01 09 – DISPENSER FRONT PARTS

WRF757SDEE01 09 – DISPENSER FRONT PARTS

Written by

in

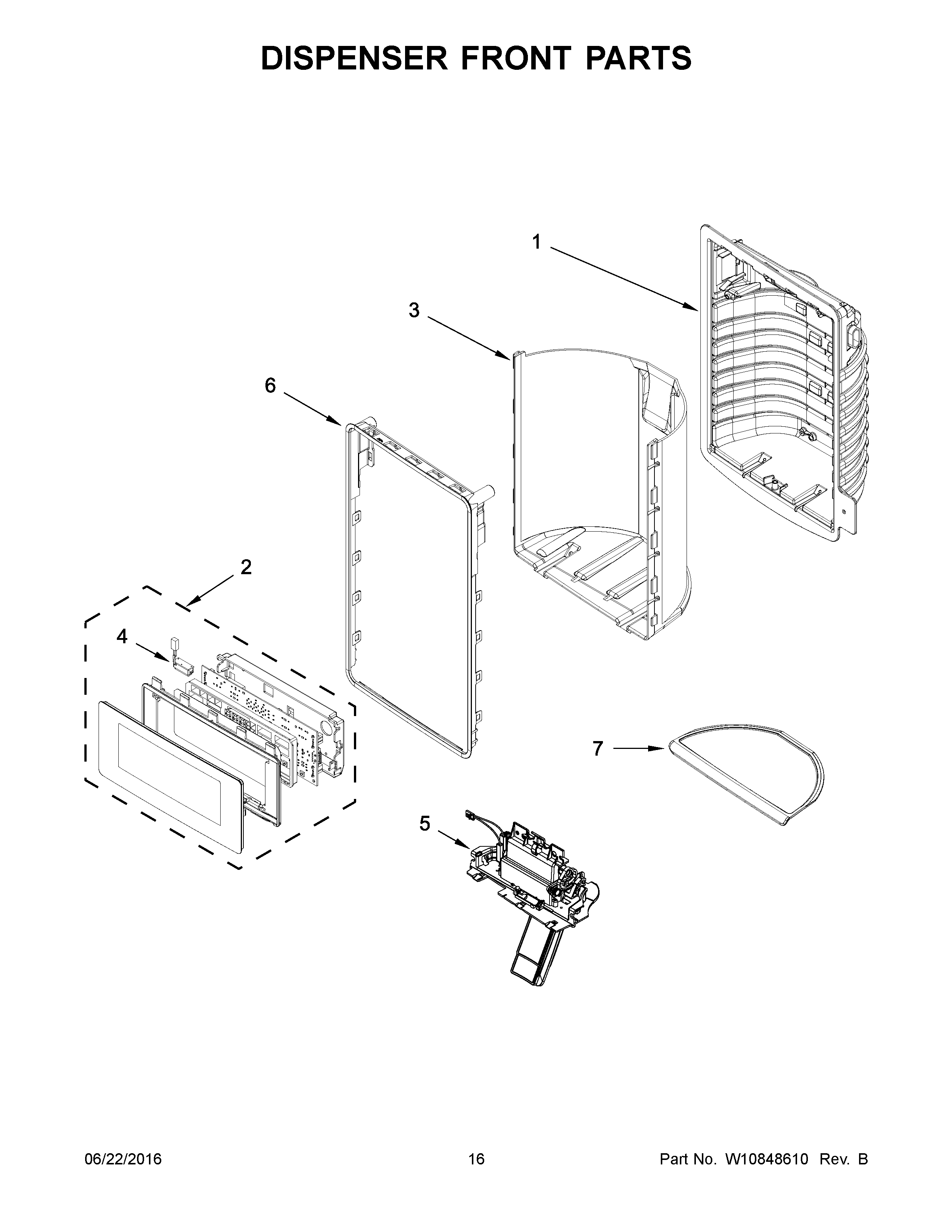

WRF757SDEE01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10849460-includeCORE Whirlpool W10849460 Refrigerator Electronic Control Board
3AWALL, DISPENSER FALSE (GREY)
3W10756901 Whirlpool Refrigerator Shield
4W11290115 Whirlpool Refrigerator Light
5BWPW10616134 Whirlpool Refrigerator Ice Door
5AWPW10616133 Whirlpool Refrigerator Separator
5W11175839 Whirlpool Refrigerator Ice Door
6WPW10402180 Whirlpool Refrigerator Trim
7W10606641 Whirlpool Refrigerator Drip Tray
7ATRAY, DRIP (GREY)
