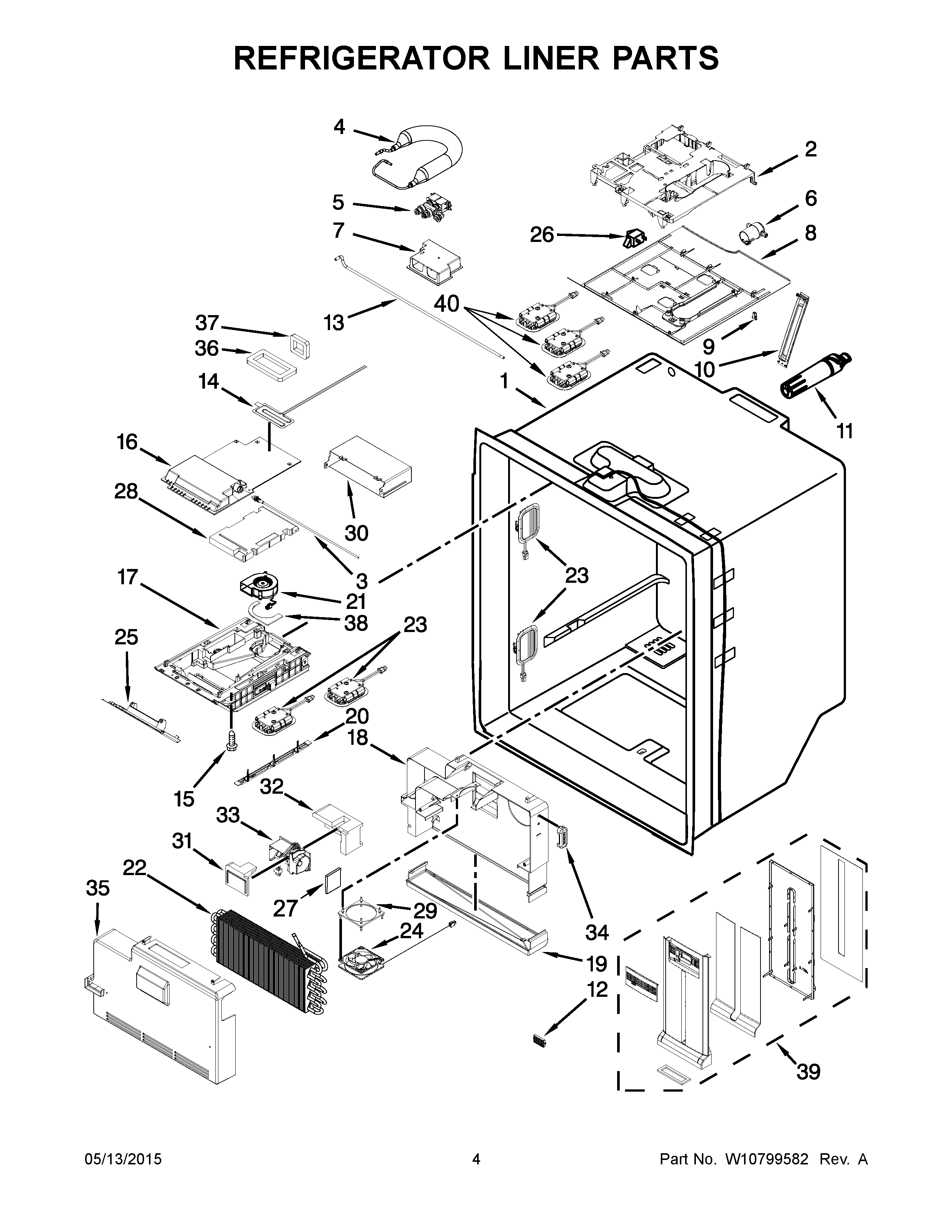

WRF757SDEH00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10859326 Whirlpool Refrigerator Wire Harness
NI	HARNS-WIRE
NI	W10578603 Whirlpool Refrigerator Wire Harness
2	W10842950 Whirlpool Refrigerator Housing
3	W11686799 Whirlpool Refrigerator Water Tube
4	W11168758 Whirlpool Reservoir
5	WPW10341329 Whirlpool Refrigerator Water Valve Assembly
6	W11194438 Whirlpool Water Filter Housing
7	W10811115 Whirlpool Refrigerator Cover
8	W11190820 Whirlpool Refrigerator Cover
9	WP2223877 Whirlpool Door Hook
10	WPW10277949 Whirlpool Refrigerator Filter Cover
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11686800 Whirlpool Water Tube
14	HEATER
15	WP67006908 Whirlpool Refrigerator Screw
16	WPW10598013 Whirlpool Refrigerator Cover
17	ASSEMBLY, ICEBOX (FOAMED)
18	WPW10469927 Whirlpool Refrigerator Housing
19	W11457241 Whirlpool Burner Drip Bowl
20	W10505516 Whirlpool Refrigerator Trim
21	FAN-EVAPORATOR
22	W11492867 Whirlpool Evaporator
24	W10633627 Whirlpool Evaporator Fan Motor
25	W11637688 Whirlpool Heater
26	W11384469 Whirlpool Door Switch
27	W10470981 Whirlpool Refrigerator Gasket
28	WPW10280983 Whirlpool Refrigerator Insulation
29	WPW10389152 Whirlpool Support
30	WPW10635022 Whirlpool Refrigerator Adapter
31	W11225849 Whirlpool Refrigerator Retainer
32	W11230117 Whirlpool Refrigerator Support
33	WPW10248595 Whirlpool Damper Control Assembly
34	W11190819 Whirlpool Refrigerator Cover
35	WPW10501260 Whirlpool Refrigerator Evaporator Cover
36	WPW10280988 Whirlpool Refrigerator Gasket
37	WPW10320706 Whirlpool Refrigerator Gasket
38	WPW10392172 Whirlpool Refrigerator Gasket
39	ASSEMBLY, AIR TOWER
40	MODULE
