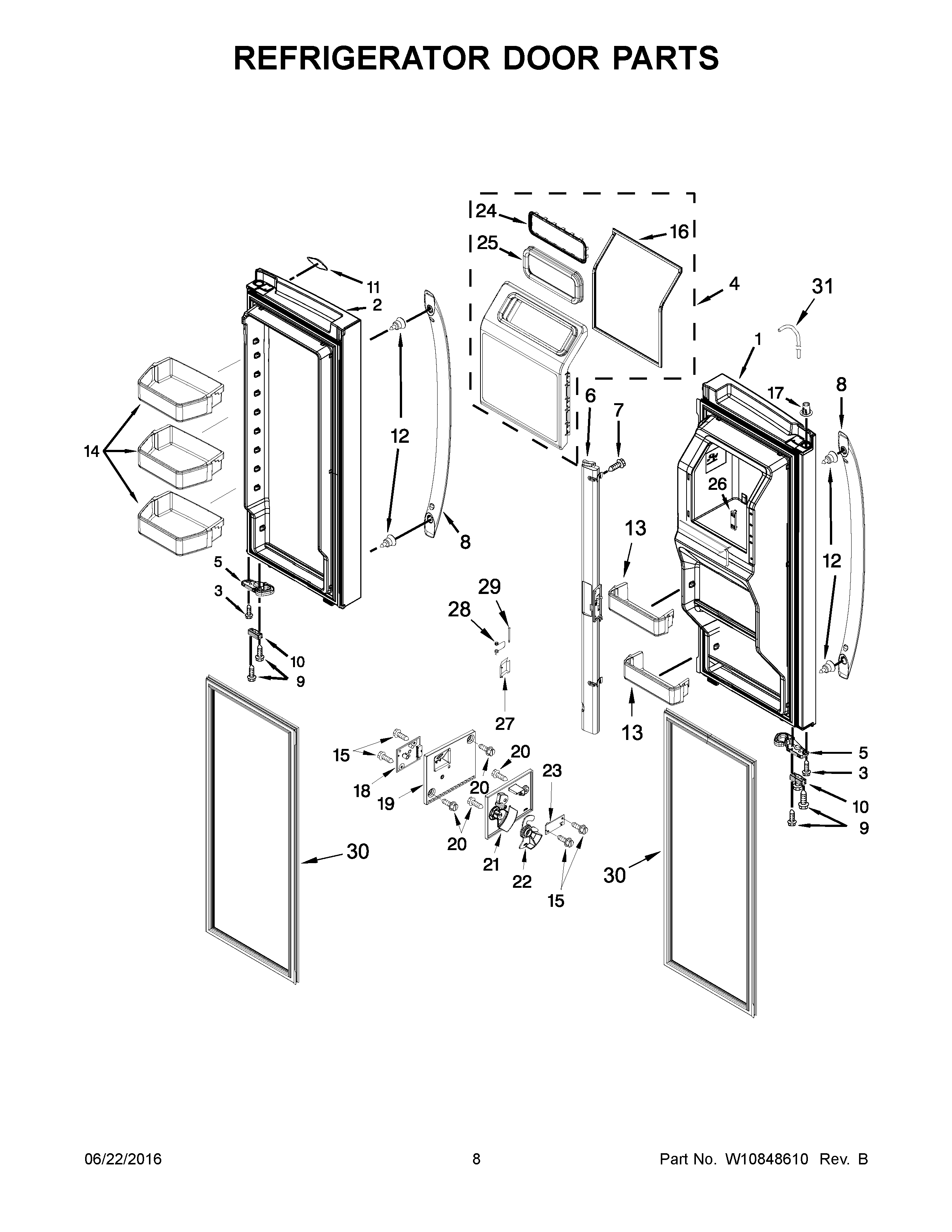

WRF757SDEH01 05 – REFRIGERATOR DOOR PARTS

WRF757SDEH01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF757SDEH01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10735699 Whirlpool Refrigerator Door Handle
1BLW10735693 Whirlpool Refrigerator Foam In Place Door Stainless Steel
1ALW10735691 Whirlpool Refrigerator Black Foam In Place Doorack
2BLW10341284 Whirlpool Refrigerator Door FIP SS
2LW10624492 Whirlpool Refrigerator DOR-FIP WH
2ALW10341282 Whirlpool Refrigerator Black Foam In Place Doorack
3WPW10464016 Whirlpool Refrigerator Screw
4W11171728 Whirlpool Refrigerator Ice Door
5W10904595 Whirlpool Refrigerator Closer
5AW11212164 Whirlpool Refrigerator Door Closer
6BW10806457 Whirlpool Refrigerator Mullion Rail
6W10846151 Whirlpool Refrigerator Mullion Rail
6AW10698196 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W10899551 Whirlpool Door Handle
9WP98165 Whirlpool Screw
10AW10407187 Whirlpool Refrigerator Door Bumper
10BUMPER, DOOR (WHITE)
10BW11573367 Whirlpool Refrigerator Door Bumper
11WPW10391355 Whirlpool Refrigerator Nameplate
11AWPW10393265 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13W10838874 Whirlpool Refrigerator Trivet
14W10913631 Whirlpool Refrigerator Cantilever Bin
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17W10562834 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27FLIPPER
28WP2198635 Whirlpool Refrigerator Spring
29WP2198634 Whirlpool Door Pin
30BW10407212 Whirlpool Door Gasket
30W11678967 Whirlpool Refrigerator Gasket FIP
30AW10861004 Whirlpool Refrigerator FIP Gasket
31WPW10499015 Whirlpool Refrigerator Water Tube
