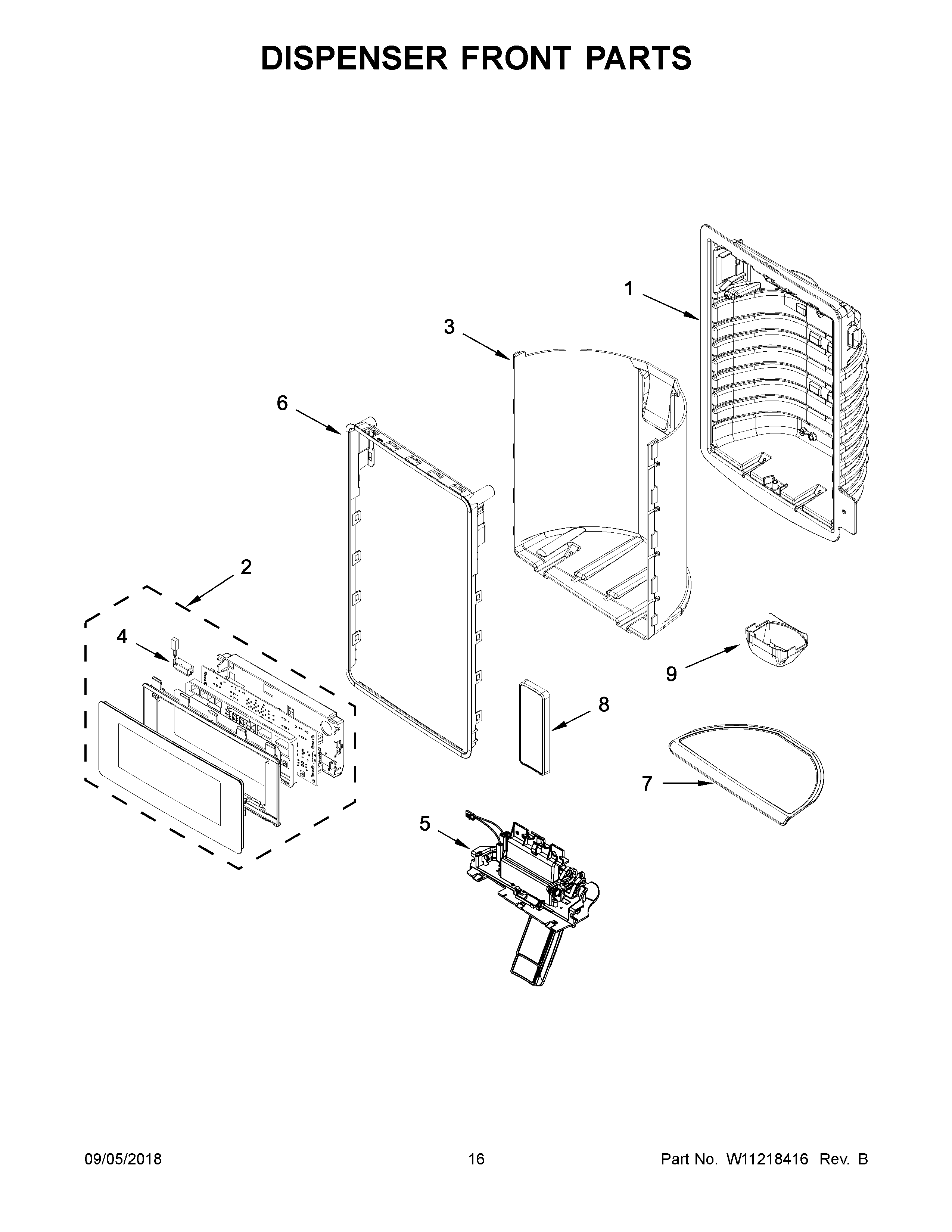

WRF757SDHV00 09 – DISPENSER FRONT PARTS

WRF757SDHV00 09 – DISPENSER FRONT PARTS

Written by

in

WRF757SDHV00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11387387-includeCORE Whirlpool W11387387 Refrigerator Electronic Control Board + Core
3W10819058 Whirlpool Refrigerator Shield
4W11290115 Whirlpool Refrigerator Light
5WPW10577864 Whirlpool Refrigerator Ice Door
6WPW10402180 Whirlpool Refrigerator Trim
7W11448765 Whirlpool Drip Tray
8W10853387 Whirlpool Refrigerator Pad
9WPW10435760 Whirlpool Refrigerator Ice Guide
