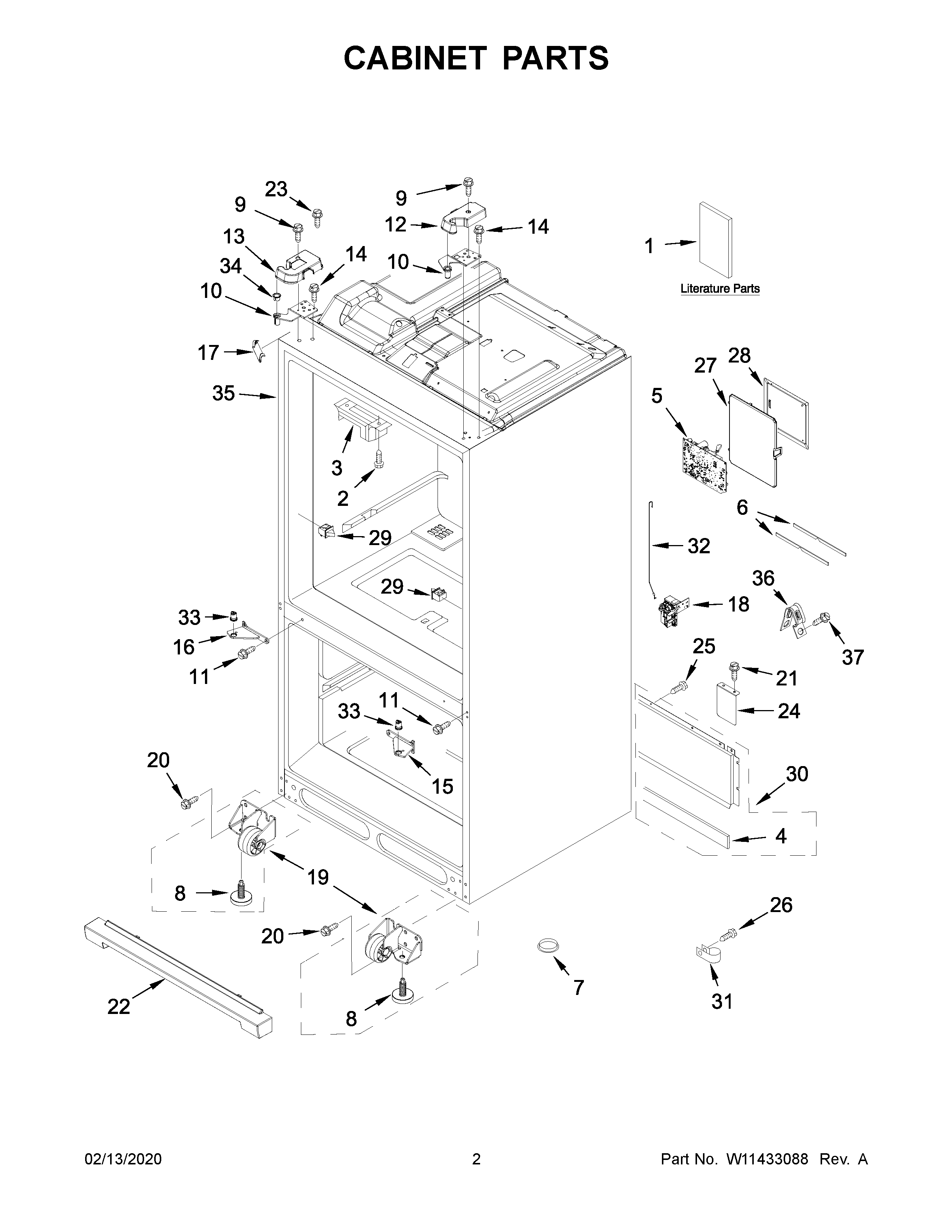

WRF757SDHZ01 02 – CABINET PARTS

WRF757SDHZ01 02 – CABINET PARTS

Written by

in

WRF757SDHZ01 02 – CABINET PARTS

Products

PositionProduct
1AFRENCH
1ENGLISH
1BENERGY GUIDE
1CUSE AND CARE GUIDE
2W10854958 Whirlpool Refrigerator Screw
3WPW10344432 Whirlpool Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP98165 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
12WPW10407158 Whirlpool Refrigerator Cover Assembly
13WPW10471618 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15W11240748 Whirlpool Refrigerator Door Hinge
16W10878115 Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W11686675 Whirlpool Screw
22WPW10637671 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10336736 Whirlpool Refrigerator Cover
2667006425 Whirlpool Refrigerator Screw
27W10768379 Whirlpool Refrigerator Cover
28W10754144 Whirlpool Refrigerator Cover
29W11396033 Whirlpool Refrigerator Rocker Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W11209890 Whirlpool Refrigerator Water Tube
33COUPLER, DOOR
34W10212137 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37SCREW
