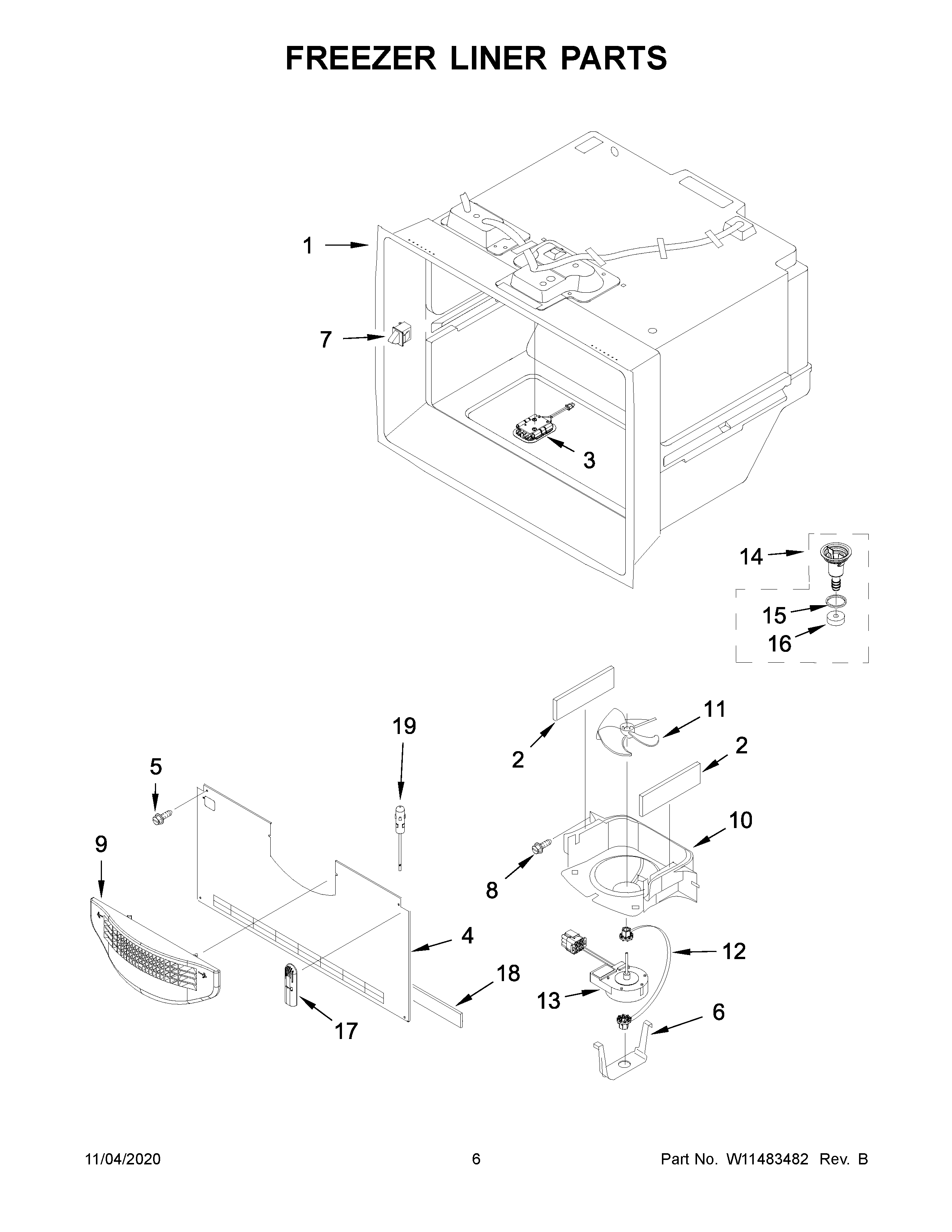

WRF757SDHZ02 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	W11483116 Whirlpool Refrigerator Module
4	W11690163 Whirlpool Refrigerator Evaporator Cover
5	67006425 Whirlpool Refrigerator Screw
6	W11712696 Whirlpool Clip
7	W11123941 Whirlpool Refrigerator Switch
8	WP98165 Whirlpool Screw
9	W10871842 Whirlpool Air Grille
10	WPW10363507 Whirlpool Refrigerator Shroud
11	WP67006337 Whirlpool Refrigerator Fan Blade
12	W11249950 Whirlpool Refrigerator Grommet
13	W11224591 Whirlpool Refrigerator Evaporator Motor
14	W10503218 Whirlpool Refrigerator Funnel
15	WPM0500703 Whirlpool Refrigerator O-Ring Seal
16	WPB8381501 Whirlpool Refrigerator Door Gasket
17	W11661208 Whirlpool Cover Assembly
18	W10668165 Whirlpool Refrigerator Gasket
19	THERMISTOR
