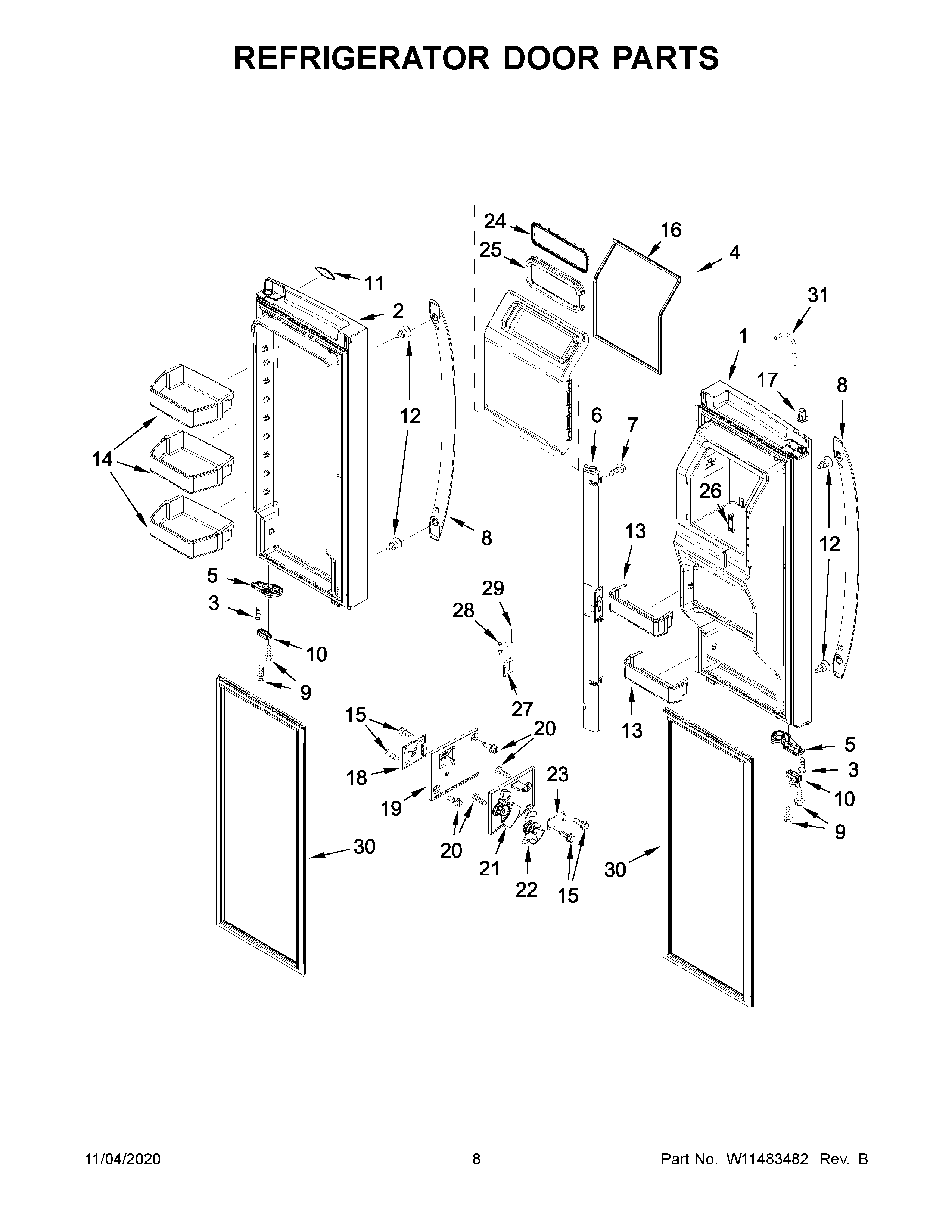

WRF757SDHZ02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW11518735 Whirlpool Refrigerator DOR-FIP
1W11518736 Whirlpool Refrigerator Door Service Kit W10861207
2AW11104459 Whirlpool Refrigerator Service Door Kit
2W11436604 Whirlpool Refrigerator Door Assembly
4W11171728 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6AW10698196 Whirlpool Refrigerator Mullion Rail
6W10806457 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8HANDLE-REFRIGERATOR SS
8AW11125624 Whirlpool Door Handle
9WP98165 Whirlpool Screw
10W11573367 Whirlpool Refrigerator Door Bumper
10AW10407187 Whirlpool Refrigerator Door Bumper
11W11223753 Whirlpool Refrigerator Nameplate
12W11449276 Whirlpool Handle Support
13W11366475 Whirlpool Refrigerator Trivet
14W11371716 Whirlpool Refrigerator Gallon Door Shelf Bin
152006254 Whirlpool Refrigerator Screw
16W11624997 Whirlpool Refrigerator Gasket
17W11315302 Whirlpool Refrigerator Clip
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19COVER, RECEIVER
21W10258502 Whirlpool Refrigerator Cover
22W10258540 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24WPW10400825 Whirlpool Refrigerator Retainer
25WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26VENT, THERMISTOR
27FLIPPER
28WP2198635 Whirlpool Refrigerator Spring
29WP2198634 Whirlpool Door Pin
30AW10861004 Whirlpool Refrigerator FIP Gasket
30W10407212 Whirlpool Door Gasket
31WPW10499015 Whirlpool Refrigerator Water Tube
