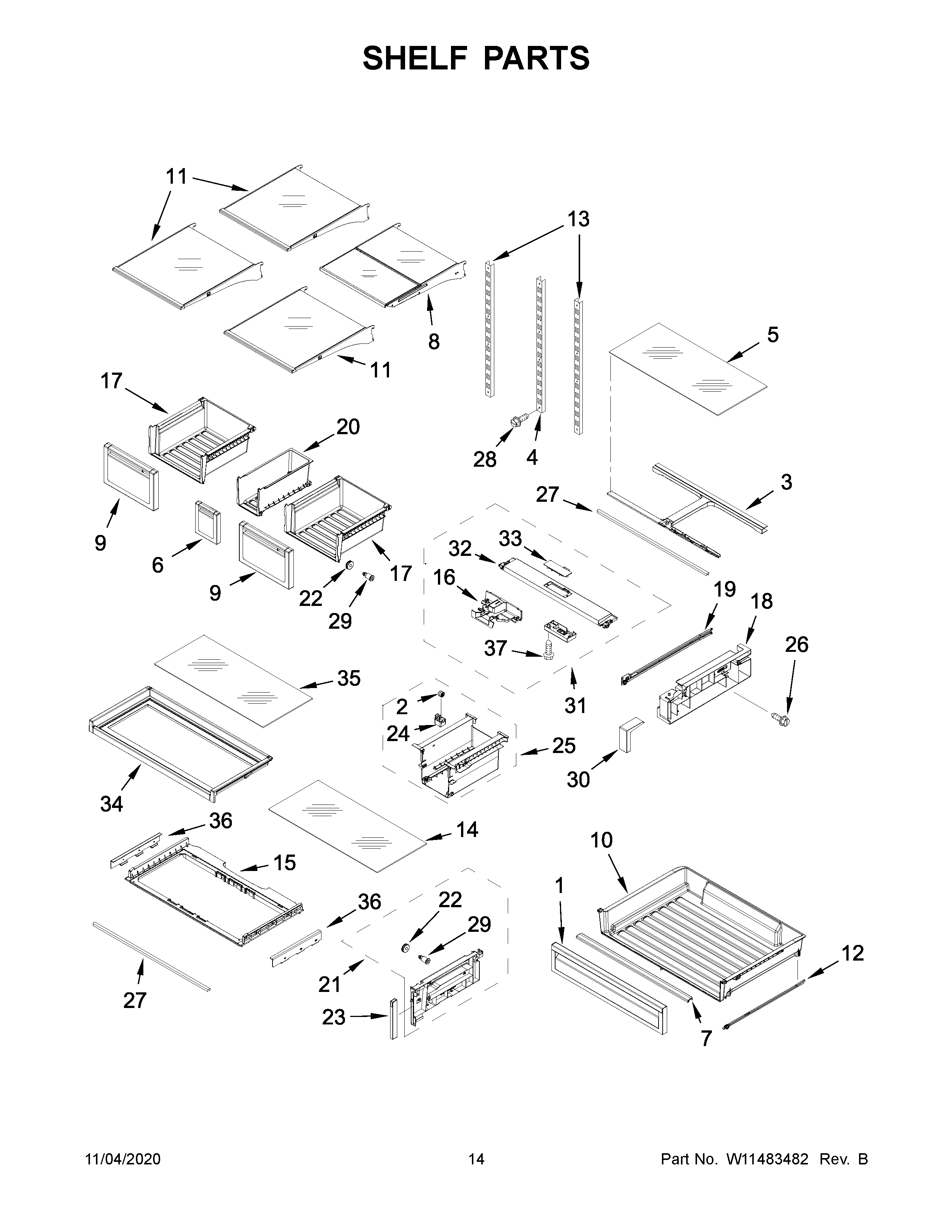

WRF757SDHZ02 08 – SHELF PARTS

WRF757SDHZ02 08 – SHELF PARTS

Written by

in

WRF757SDHZ02 08 – SHELF PARTS

Products

Position	Product
1	WPW10510417 Whirlpool Refrigerator Front Pan
2	W10248789 Whirlpool Refrigerator Roller
3	W11224265 Whirlpool Refrigerator Support
4	W11690685 Whirlpool Ladder
5	W11092486 Whirlpool Refrigerator Glass Shelf
6	W11218695 Whirlpool Refrigerator Front Pan
7	W10398002 Whirlpool Refrigerator Handle
8	WPW10709175 Whirlpool Refrigerator Glass Shelf
9	WPW10688114 Whirlpool Drawer Front
10	WPW10654844 Whirlpool Storage Drawer
11	WPW10709163 Whirlpool Refrigerator Glass Shelf
12	W10508330 Whirlpool Refrigerator Slide
12A	W10508328 Whirlpool Refrigerator Slide
13	LADDER
14	W11092501 Whirlpool Glass Shelf
15	W11133636 Whirlpool Refrigerator Frame
16	W10512596 Whirlpool Refrigerator Knob
17	PAN-CRISPR
18	WPW10498906 Whirlpool Refrigerator Plate
18A	W11225684 Whirlpool Refrigerator Plate
19A	W10508326 Whirlpool Refrigerator Slide
19	W10508327 Whirlpool Refrigerator Slide
20	WPW10387778 Whirlpool Refrigerator Crisper Pan
21	SIDEPLATE, CRISPER (LEFT HAND)
21A	PLATE
22	WPW10248544 Whirlpool Refrigerator Roller
23	W10467415 Whirlpool Refrigerator Trim
24	W10530314 Whirlpool Refrigerator Housing
25	W10662015 Whirlpool Drawer Support Assembly
26	WP8281136 Whirlpool Screw
27	WPW10236512 Whirlpool Refrigerator Support
28	W10423560 Whirlpool Refrigerator Screw
29	WPW10257246 Whirlpool Refrigerator Axle
30	W10467416 Whirlpool Refrigerator Trim
31	W10554293 Whirlpool Refrigerator Cover
32	WPW10554285 Whirlpool Refrigerator Cover
33	HOUSING, PANTRY TEMP CONTROL
34	W11549362 Whirlpool Refrigerator Frame
35	W11224589 Whirlpool Refrigerator Glass Shelf
36	W11133647 Whirlpool Refrigerator Rail
36A	W11133648 Whirlpool Refrigerator Rail
37	W11311945 Whirlpool Refrigerator Screw
