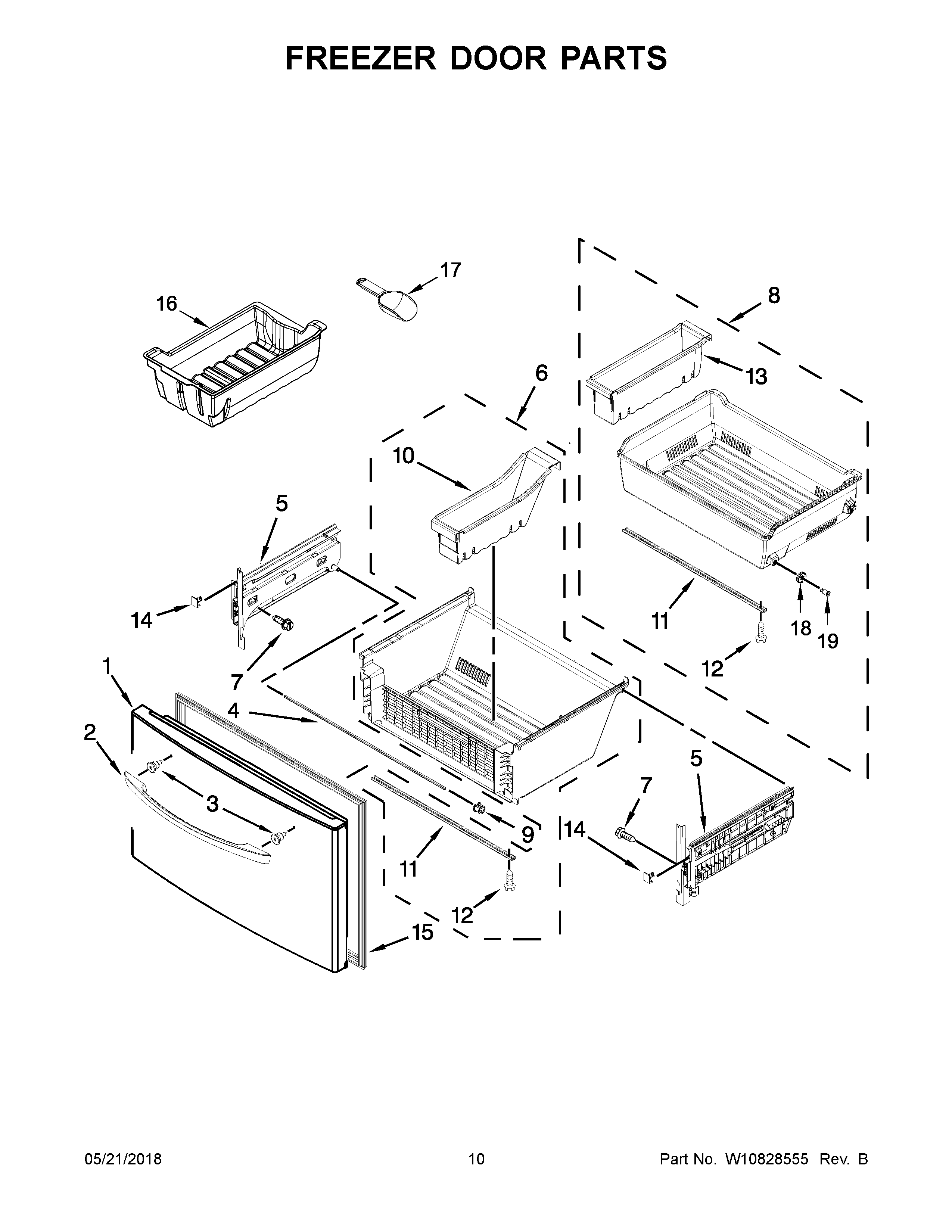

WRF767SDEM00 06 – FREEZER DOOR PARTS

WRF767SDEM00 06 – FREEZER DOOR PARTS

Written by

in

WRF767SDEM00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10341279 Whirlpool Refrigerator DOR-FIP SS
2W10827046 Whirlpool Door Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5W11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10594047 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W10724458 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11W11677723 Whirlpool Support
12WP489443 Whirlpool Refrigerator Screw
13WPW10485654 Whirlpool Refrigerator Divider
14WPW10485096 Whirlpool Refrigerator Pan Stop
14AWPW10485089 Whirlpool Refrigerator Pan Stop
15GASKET-FIP GRAY
16W10709259 Whirlpool Refrigerator Freezer Bin
17W10182881 Whirlpool Refrigerator Scoop
18W11578839 Whirlpool Roller
19W11573594 Whirlpool Refrigerator Axle
