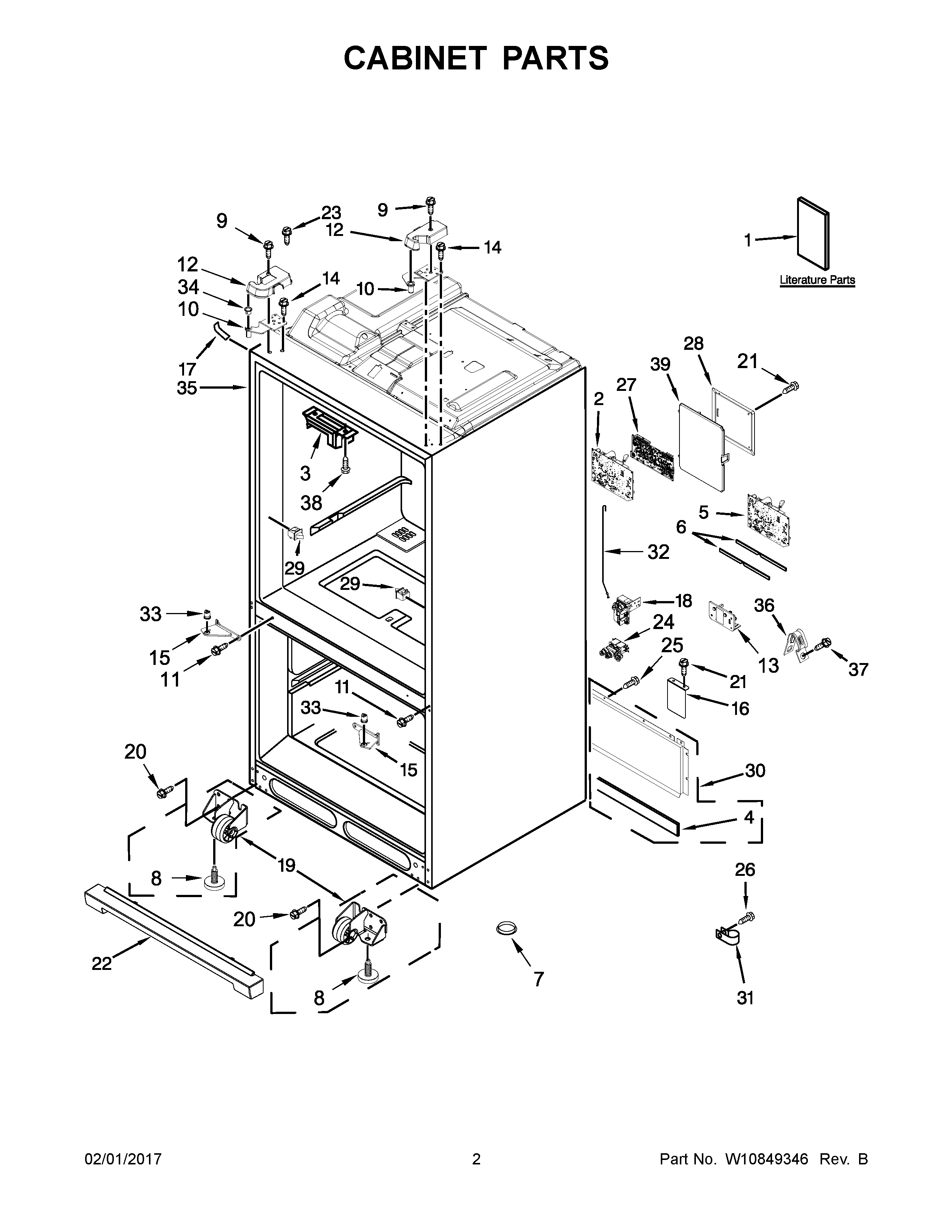

WRF767SDEM01 02 – CABINET PARTS

WRF767SDEM01 02 – CABINET PARTS

Written by

in

WRF767SDEM01 02 – CABINET PARTS

Products

Position	Product
1C	ENERGY GUIDE
1B	USE AND CARE GUIDE
1A	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
2	W10830278 Whirlpool Refrigerator Electronic Control Board
3	WPW10344432 Whirlpool Pivot Block
4	W10505487 Whirlpool Refrigerator Gasket
5	W10843055 Whirlpool Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP98165 Whirlpool Screw
10A	W11592404 Whirlpool Refrigerator Door Hinge
10	W11592405 Whirlpool Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	WPW10471618 Whirlpool Refrigerator Cover
12A	WPW10407158 Whirlpool Refrigerator Cover Assembly
13	W10730080 Whirlpool Refrigerator Bracket
14	W11126052 Whirlpool Screw Assembly
15A	W11240748 Whirlpool Refrigerator Door Hinge
15	W10878115 Whirlpool Refrigerator Door Hinge
16	W10336736 Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10865826 Whirlpool Refrigerator Water Inlet Valve
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11686675 Whirlpool Screw
22	WPW10637671 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	VALVE-REFR INLET
26	67006425 Whirlpool Refrigerator Screw
27	W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
28	W10754591 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W11209890 Whirlpool Refrigerator Water Tube
33	COUPLER, DOOR
34	W10212137 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	SCREW
38	W10854958 Whirlpool Refrigerator Screw
39	W10277839 Whirlpool Refrigerator Cover
