WRF767SDEM01 10 – ICEMAKER AND ICE CONTAINER PARTS

WRF767SDEM01 10 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

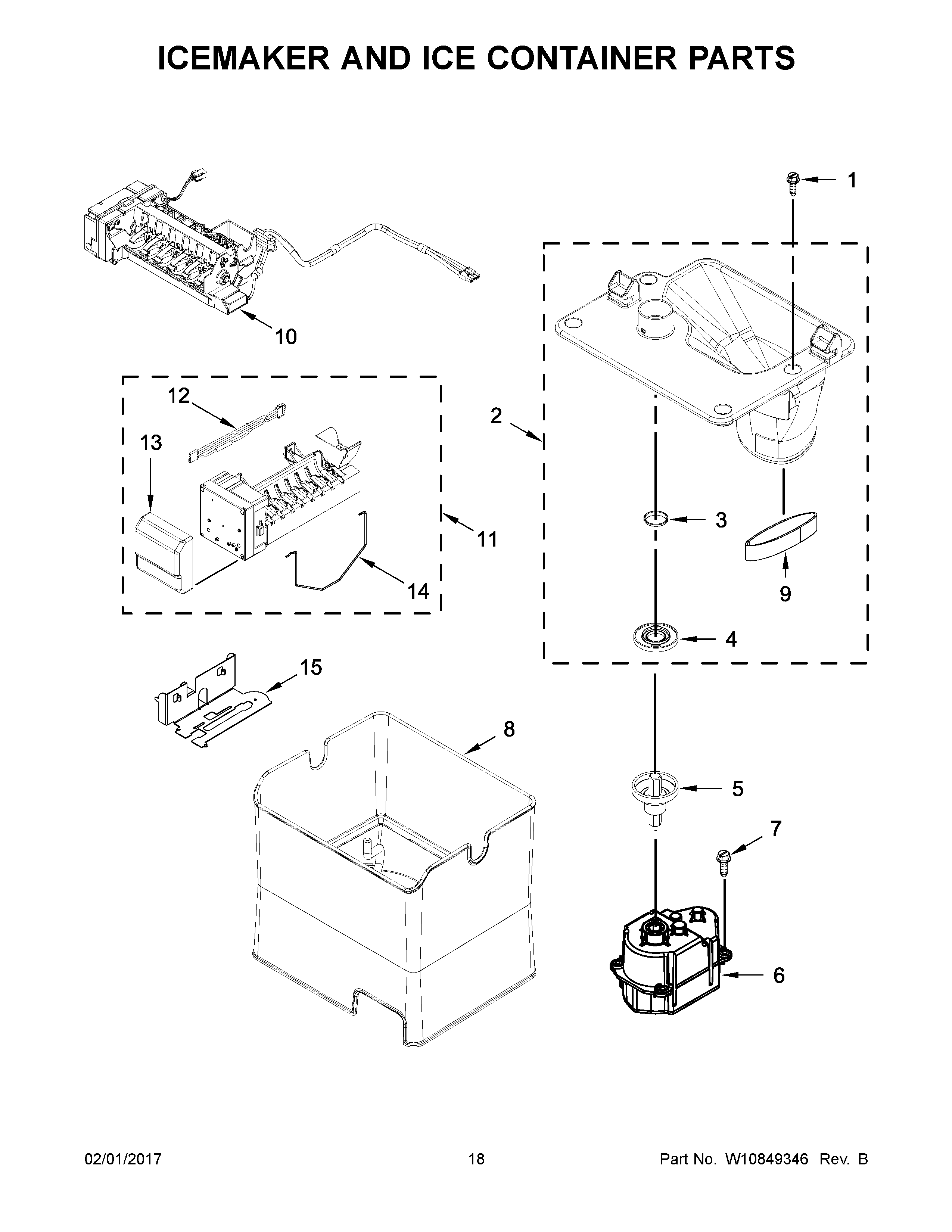

WRF767SDEM01 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10272364 Whirlpool Refrigerator Screw
2W10837274 Whirlpool Refrigerator Plate
3WP2198628 Whirlpool Door Seal
4W10847834 Whirlpool Clip
5W11509548 Whirlpool Ice Bucket Coupler
6W10822606 Whirlpool Dishwasher Dispenser Motor
7WP8281163 Whirlpool Refrigerator Screw
8WPW10347093 Whirlpool Refrigerator Ice Maker Bucket Assembly
9WPW10291905 Whirlpool Seal
10W11658802 Whirlpool Refrigerator Ice Maker
11W10886939 Whirlpool Refrigerator Icemaker
12W10886933 Whirlpool Refrigerator Wire Harness
13W10153710 Whirlpool Refrigerator Front Cover
14W11559683 Whirlpool Ice Level Arm
15W10420084 Whirlpool Refrigerator Bracket
