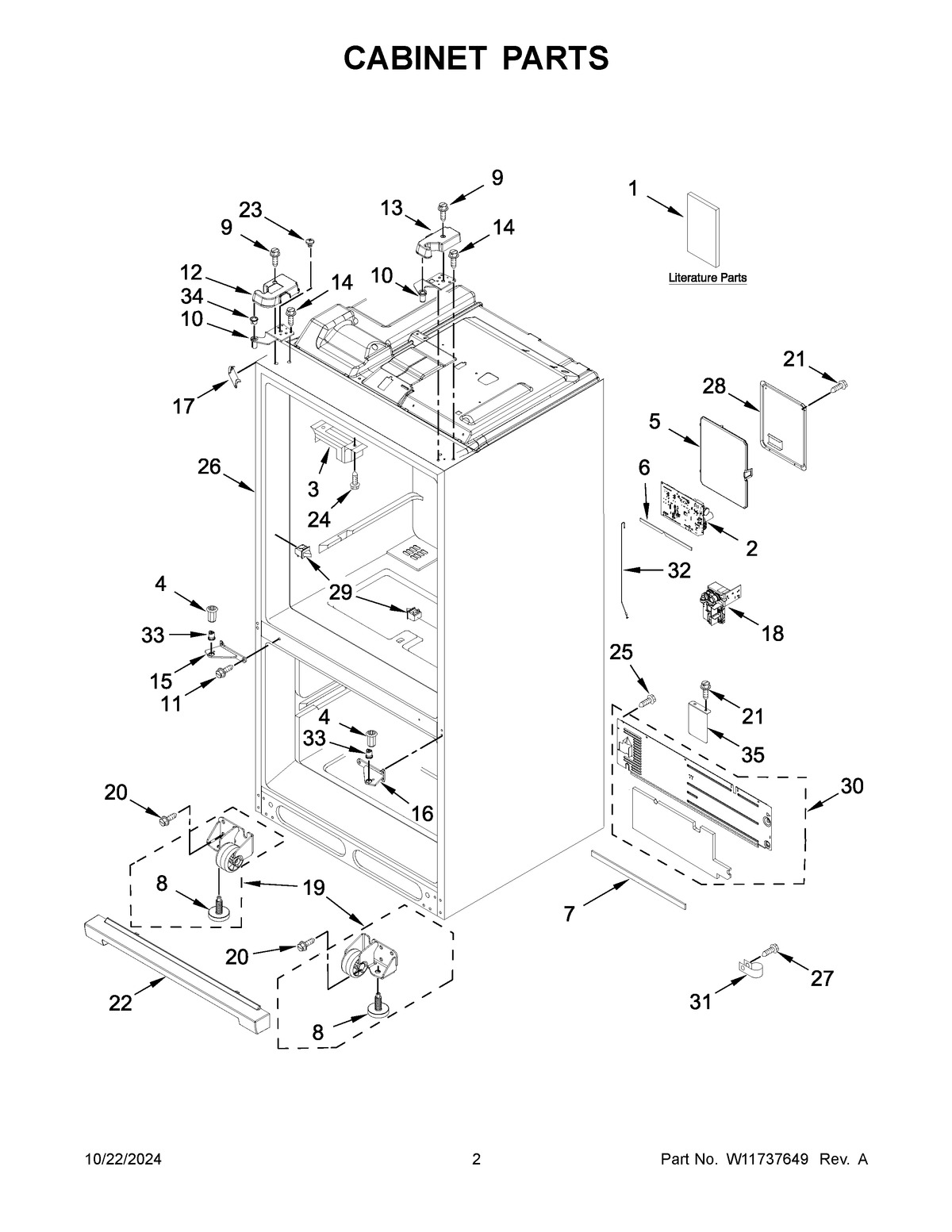

WRF767SDHV05 02 – CABINET PARTS
Written by
in
WRF767SDHV05 02 – CABINET PARTS
Products
Position
Product
1B
ENERGY GUIDE
1A
TECH SHEET
1
TECH SHEET, OWNERS MANUAL
2
BOARD, CONTROL
3
WPW10344432 Whirlpool Pivot Block
4
BUSHING
5
W10768379 Whirlpool Refrigerator Cover
6
W10415341 Whirlpool Refrigerator Gasket
7
W11534848 Whirlpool Gasket
8
WPW10141622 Whirlpool Leveler
9
WP98165 Whirlpool Screw
10
W11592405 Whirlpool Door Hinge
10A
W11592404 Whirlpool Refrigerator Door Hinge
11
W10673842 Whirlpool Refrigerator Screw
12
W10471617 Whirlpool Refrigerator Cover
13
COVER, TOP HINGE RIGHT HAND (BLACK)
14
W11126052 Whirlpool Screw Assembly
15
W10407279 Whirlpool Refrigerator Door Hinge
16
W10407275 Whirlpool Refrigerator Door Hinge
17
67003485 Whirlpool Refrigerator Corner Cover (Black)
18
VALVE
19
WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A
WPW10515762 Whirlpool Refrigerator Cabinet Roller
20
67006564 Whirlpool Refrigerator Screw
21
W11686675 Whirlpool Screw
22
WPW10637669 Whirlpool Refrigerator Front Grille
23
W11214483 Whirlpool Refrigerator Screw
24
W10854958 Whirlpool Refrigerator Screw
25
W10141518 Whirlpool Refrigerator Screw
26
CABINET (NOT A SERVICABLE PART)
27
SCREW
28
W10754144 Whirlpool Refrigerator Cover
29
W11396033 Whirlpool Refrigerator Rocker Switch
30
W11482027 Whirlpool Refrigerator Back Cover
31
W11456069 Whirlpool Refrigerator Clamp
32
W11482381 Whirlpool Refrigerator Water Tube
33
COUPLER, DOOR
34
W10212137 Whirlpool Refrigerator Grommet
35
W10336736 Whirlpool Refrigerator Cover
←
