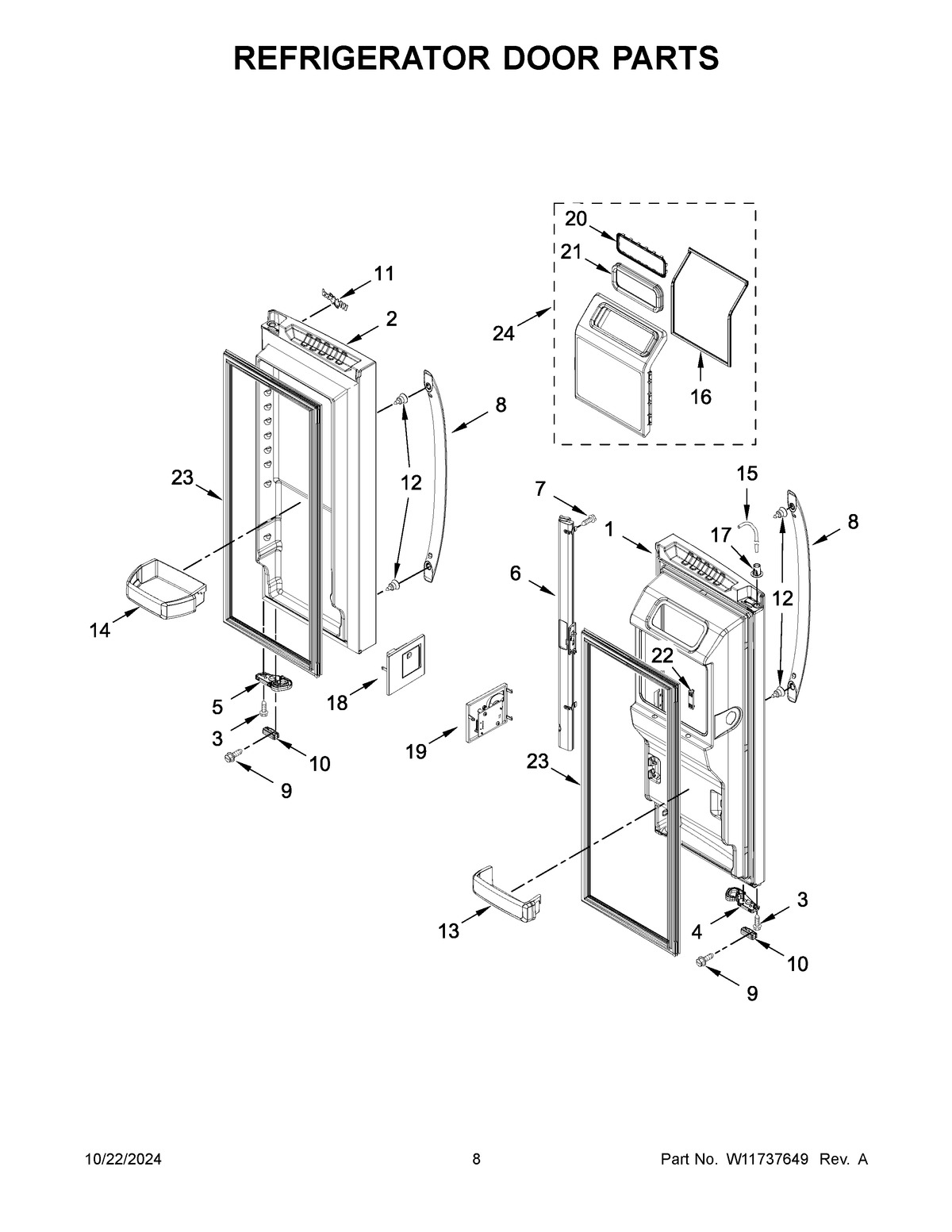

WRF767SDHV05 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W11518735 Whirlpool Refrigerator DOR-FIP
2	W11104459 Whirlpool Refrigerator Service Door Kit
4	W10904595 Whirlpool Refrigerator Closer
5	W11212164 Whirlpool Refrigerator Door Closer
6	W10698196 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11125624 Whirlpool Door Handle
9	WP98165 Whirlpool Screw
10	W10407187 Whirlpool Refrigerator Door Bumper
11	W11223753 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W11366475 Whirlpool Refrigerator Trivet
14	W11371716 Whirlpool Refrigerator Gallon Door Shelf Bin
15	WPW10499015 Whirlpool Refrigerator Water Tube
16	W11624997 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	CNTRL-ELEC
19	CNTRL-ELEC
20	WPW10400825 Whirlpool Refrigerator Retainer
21	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
22	VENT, THERMISTOR
23	W10861004 Whirlpool Refrigerator FIP Gasket
24	W11171728 Whirlpool Refrigerator Ice Door
