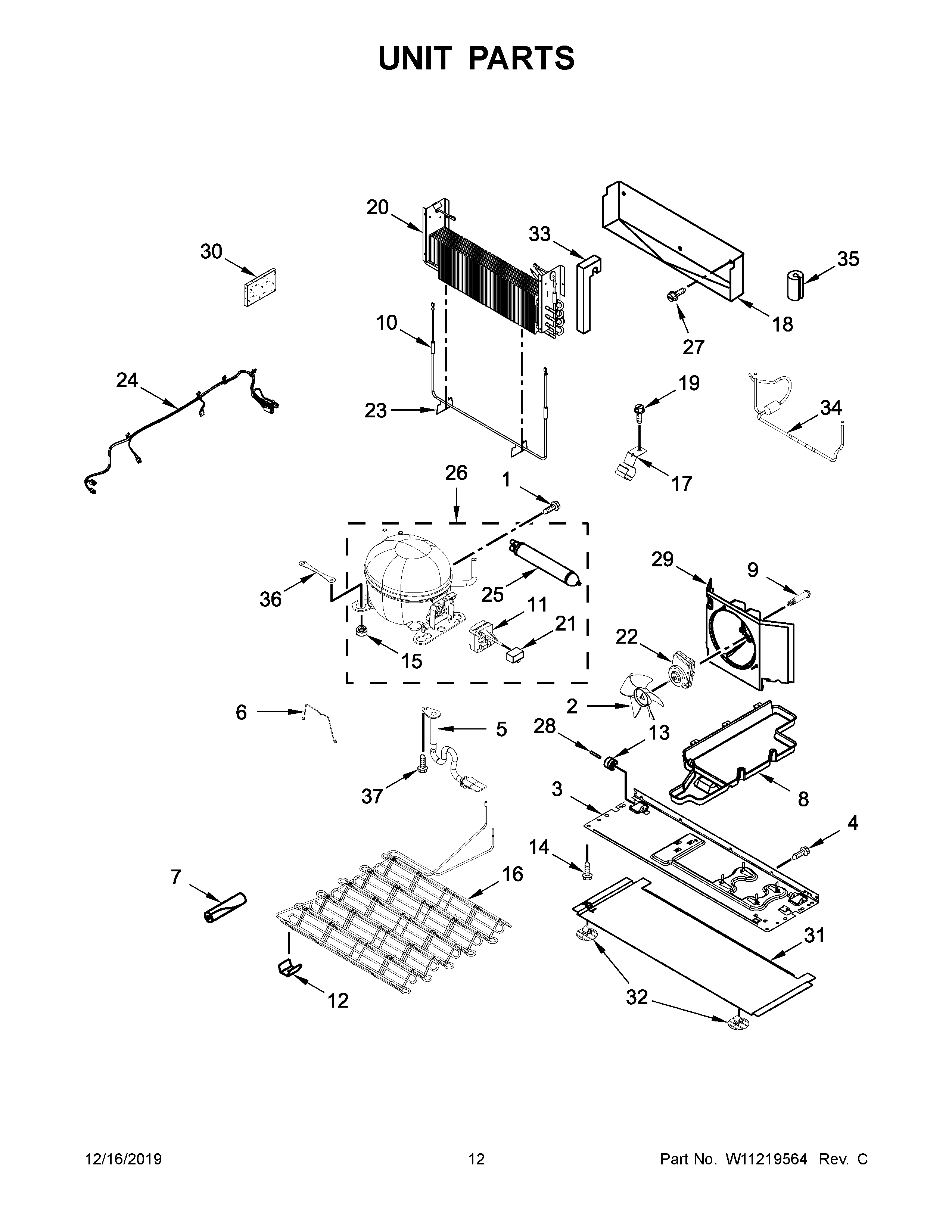

WRF767SDHZ00 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	WP2188935 Whirlpool Refrigerator Fan Blade
3	W10570074 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11712703 Whirlpool Extension Assembly
6	STRAP, BALE
7	SLEEVE
8	W11225840 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	W10873801 Whirlpool Start Device
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	WPW10169124 Whirlpool Refrigerator Grommet
16	W11673437 Whirlpool Condenser Assembly
17	W10281329 Whirlpool Clamp
18	TRAY, DRIP
19	SCREW
20	WPW10608485 Whirlpool Refrigerator Evaporator
21	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
22	W11127829 Whirlpool Refrigerator Condenser Motor
23	W11673433 Whirlpool Clip
24	W11161250 Whirlpool Refrigerator Wire Harness
25	WPW10143759 Whirlpool Dryer Filter
26	WPW10466675 Whirlpool Refrigerator Compressor
27	W11544659 Whirlpool Refrigerator Screw
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	W11553819 Whirlpool Refrigerator Insulation
31	W10278140 Whirlpool Refrigerator Unit Cover
32	W10815861 Whirlpool Refrigerator Clip
33	W10491355 Whirlpool Refrigerator Air Gasket
34	WPW10463542 Whirlpool Refrigerator Tube
35	W11715935 Whirlpool Dampener
36	W10236396 Whirlpool Refrigerator Strap
37	W10141518 Whirlpool Refrigerator Screw
