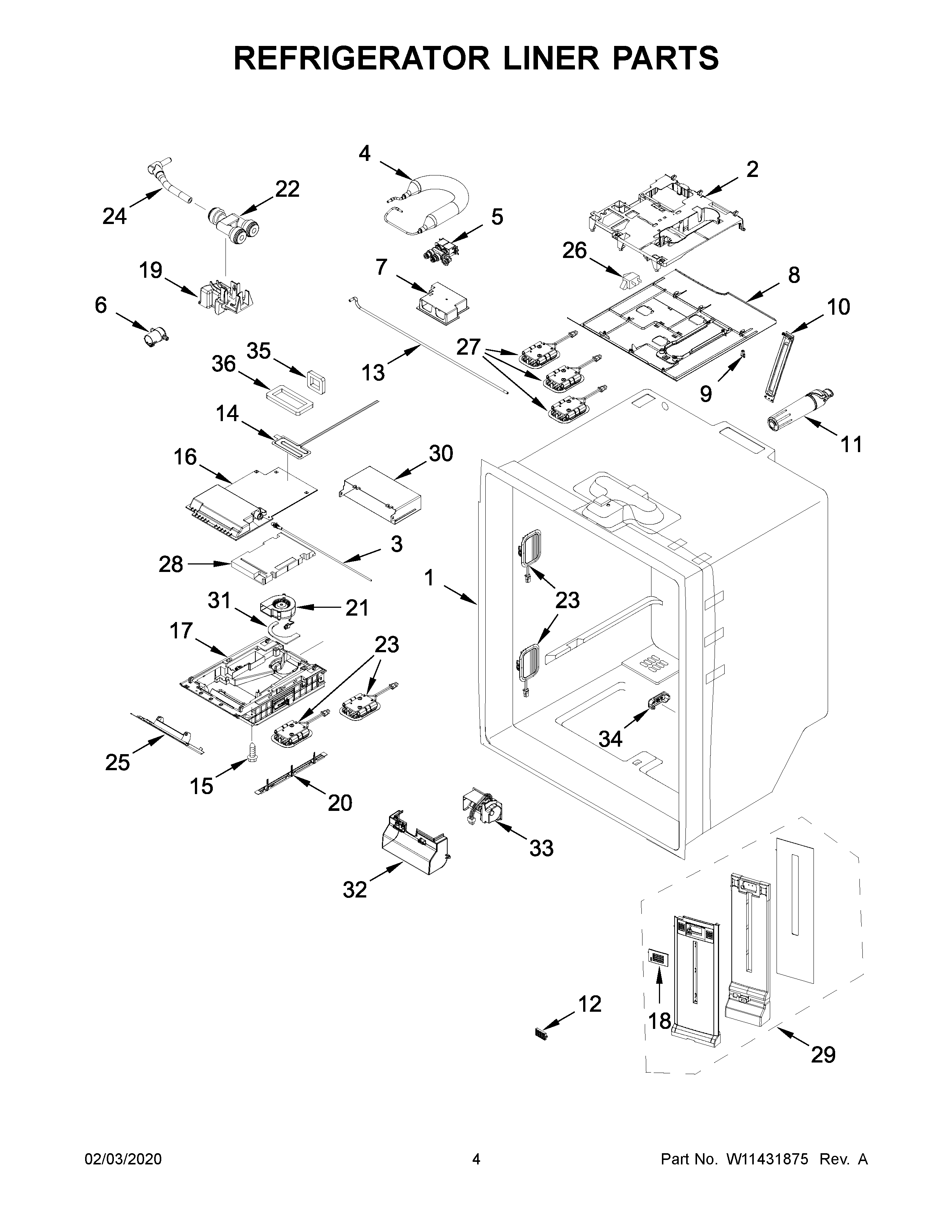

WRF767SDHZ01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161249 Whirlpool Refrigerator Wire Harness
2	W10842950 Whirlpool Refrigerator Housing
3	W11686799 Whirlpool Refrigerator Water Tube
4	W10702033 Whirlpool Refrigerator Reservoir
5	WPW10341329 Whirlpool Refrigerator Water Valve Assembly
6	W11194438 Whirlpool Water Filter Housing
7	W10811115 Whirlpool Refrigerator Cover
8	W11190820 Whirlpool Refrigerator Cover
9	WP2223877 Whirlpool Door Hook
10	WPW10277949 Whirlpool Refrigerator Filter Cover
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11686800 Whirlpool Water Tube
14	HEATER
15	WP67006908 Whirlpool Refrigerator Screw
16	WPW10598013 Whirlpool Refrigerator Cover
17	W11242954 Whirlpool Refrigerator Ice Box
18	W11204021 Whirlpool Refrigerator Compressor Door
19	W10713934 Whirlpool Refrigerator Bracket
20	W10505516 Whirlpool Refrigerator Trim
21	FAN-EVAPORATOR
22	W11209438 Whirlpool Refrigerator Connector
23	MODULE
24	W10723352 Whirlpool Refrigerator Water Tube
25	W11637688 Whirlpool Heater
26	W11123941 Whirlpool Refrigerator Switch
28	WPW10280983 Whirlpool Refrigerator Insulation
29	W11373867 Whirlpool Refrigerator Air Tower
30	WPW10635022 Whirlpool Refrigerator Adapter
31	WPW10392172 Whirlpool Refrigerator Gasket
32	COVER, DAMPER
33	CONTROL
34	W11238397 Whirlpool Refrigerator Cover
35	WPW10320706 Whirlpool Refrigerator Gasket
36	WPW10280988 Whirlpool Refrigerator Gasket
