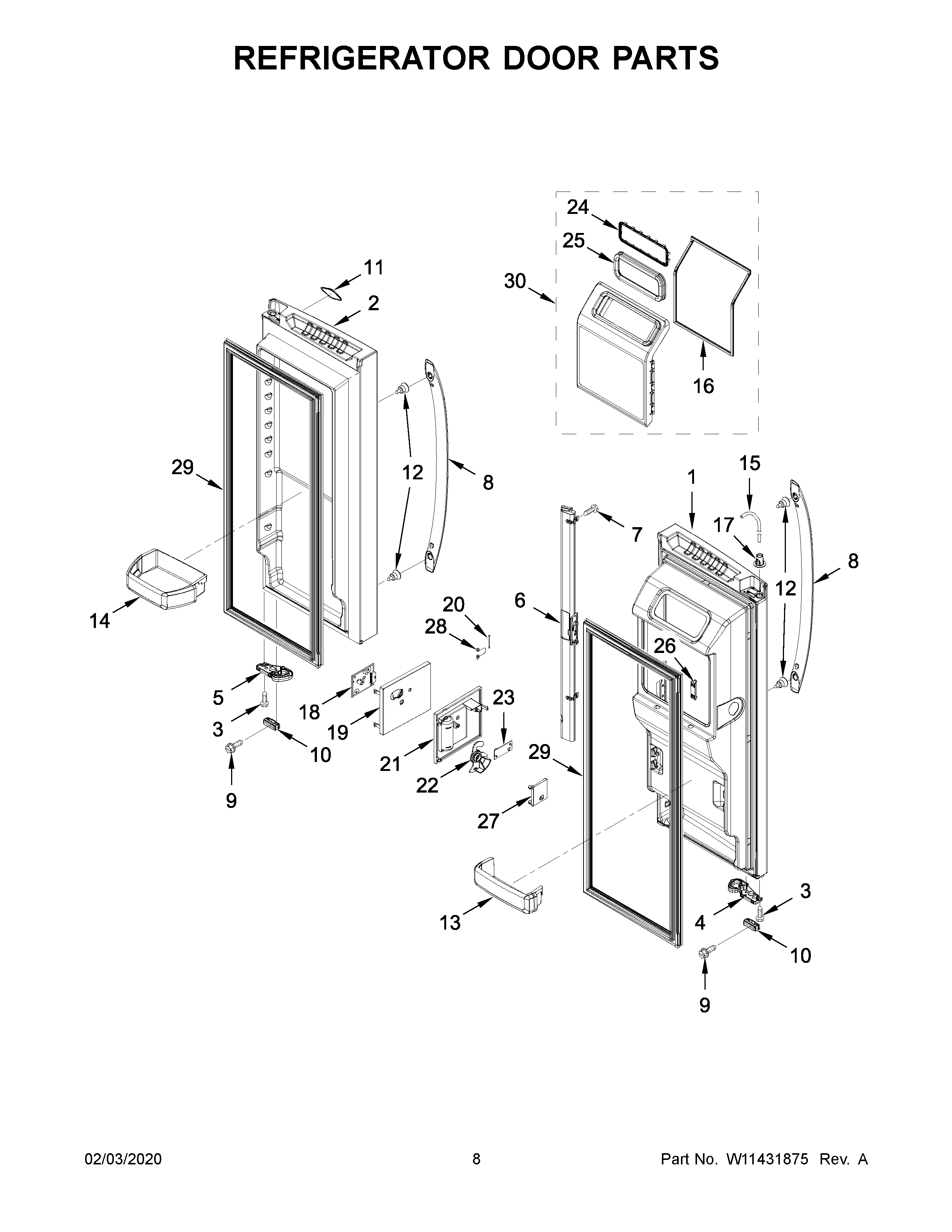

WRF767SDHZ01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W11436980 Whirlpool Refrigerator Door Assembly
2	W11436604 Whirlpool Refrigerator Door Assembly
4	W10904595 Whirlpool Refrigerator Closer
5	W11212164 Whirlpool Refrigerator Door Closer
6	W10806457 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	HANDLE-REFRIGERATOR SS
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	W11223753 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W11366475 Whirlpool Refrigerator Trivet
14	W11371716 Whirlpool Refrigerator Gallon Door Shelf Bin
15	WPW10499015 Whirlpool Refrigerator Water Tube
16	W11624997 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WP2198634 Whirlpool Door Pin
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29	W10407212 Whirlpool Door Gasket
30	W11171728 Whirlpool Refrigerator Ice Door
