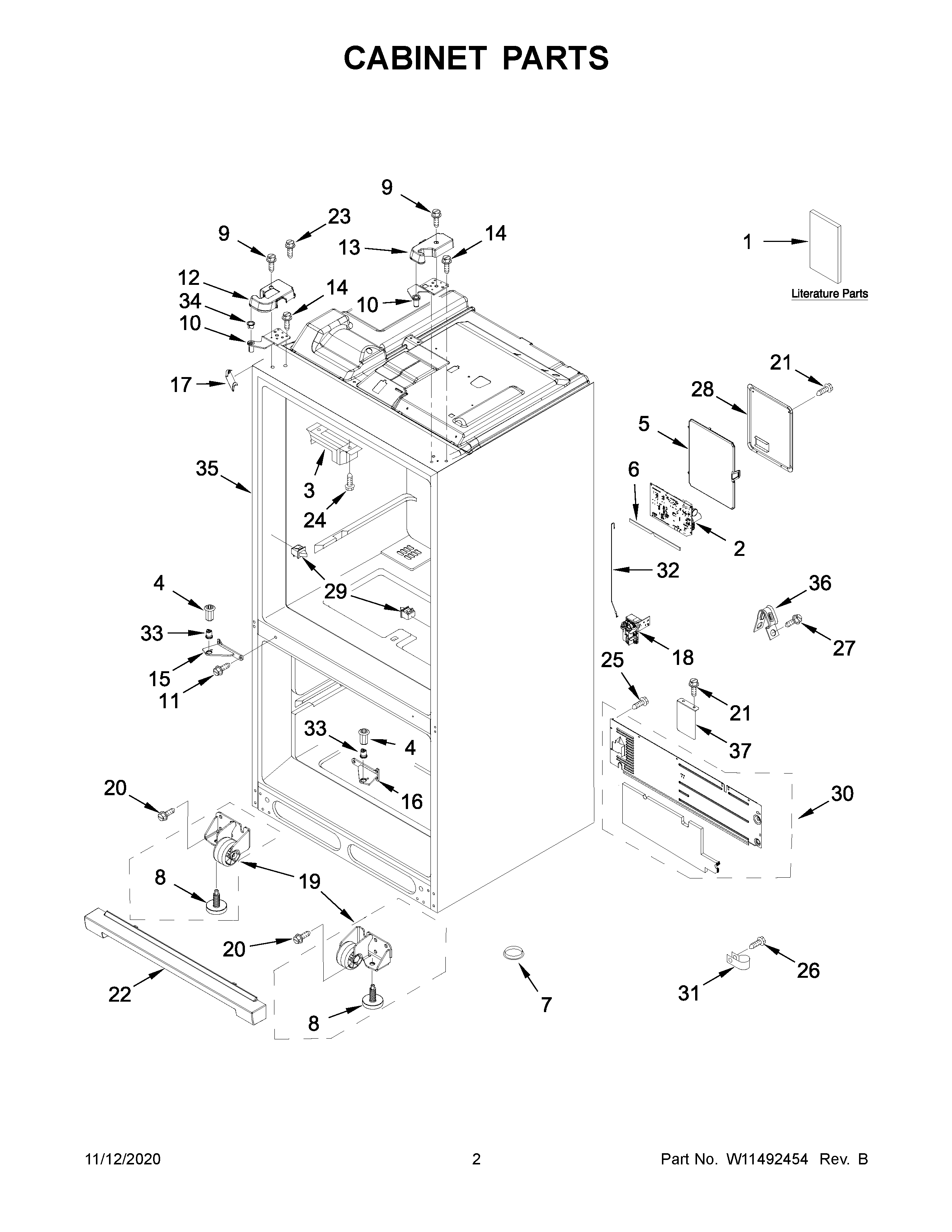

WRF767SDHZ02 02 – CABINET PARTS

WRF767SDHZ02 02 – CABINET PARTS

Written by

in

WRF767SDHZ02 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1D	TECH SHEET, ENERGY GUIDE
1B	TECH SHEET, WIRING DIAGRAM
1C	TECH SHEET, USE AND CARE GUIDE
2	W11224256-includeCORE Whirlpool W11224256 Washer Electronic Control Board + Core
3	WPW10344432 Whirlpool Pivot Block
4	BUSHING
5	W10768379 Whirlpool Refrigerator Cover
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP98165 Whirlpool Screw
10	W11592405 Whirlpool Door Hinge
10A	W11592404 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
11A	W10673842 Whirlpool Refrigerator Screw
12	WPW10471618 Whirlpool Refrigerator Cover
12A	W10471617 Whirlpool Refrigerator Cover
13A	COVER, TOP HINGE RIGHT HAND (BLACK)
13	WPW10407158 Whirlpool Refrigerator Cover Assembly
14	W11126052 Whirlpool Screw Assembly
15A	W10407279 Whirlpool Refrigerator Door Hinge
15	W10878115 Whirlpool Refrigerator Door Hinge
16	W11240748 Whirlpool Refrigerator Door Hinge
16A	W10407275 Whirlpool Refrigerator Door Hinge
17	WP12587703AP Whirlpool Refrigerator Filler
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	VALVE
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11686675 Whirlpool Screw
22	WPW10637671 Whirlpool Refrigerator Front Grille
22A	WPW10637669 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	W10854958 Whirlpool Refrigerator Screw
26	67006425 Whirlpool Refrigerator Screw
27	SCREW
28	W10754144 Whirlpool Refrigerator Cover
29	W11396033 Whirlpool Refrigerator Rocker Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W11482381 Whirlpool Refrigerator Water Tube
33	COUPLER, DOOR
34	W10212137 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	W10336736 Whirlpool Refrigerator Cover
