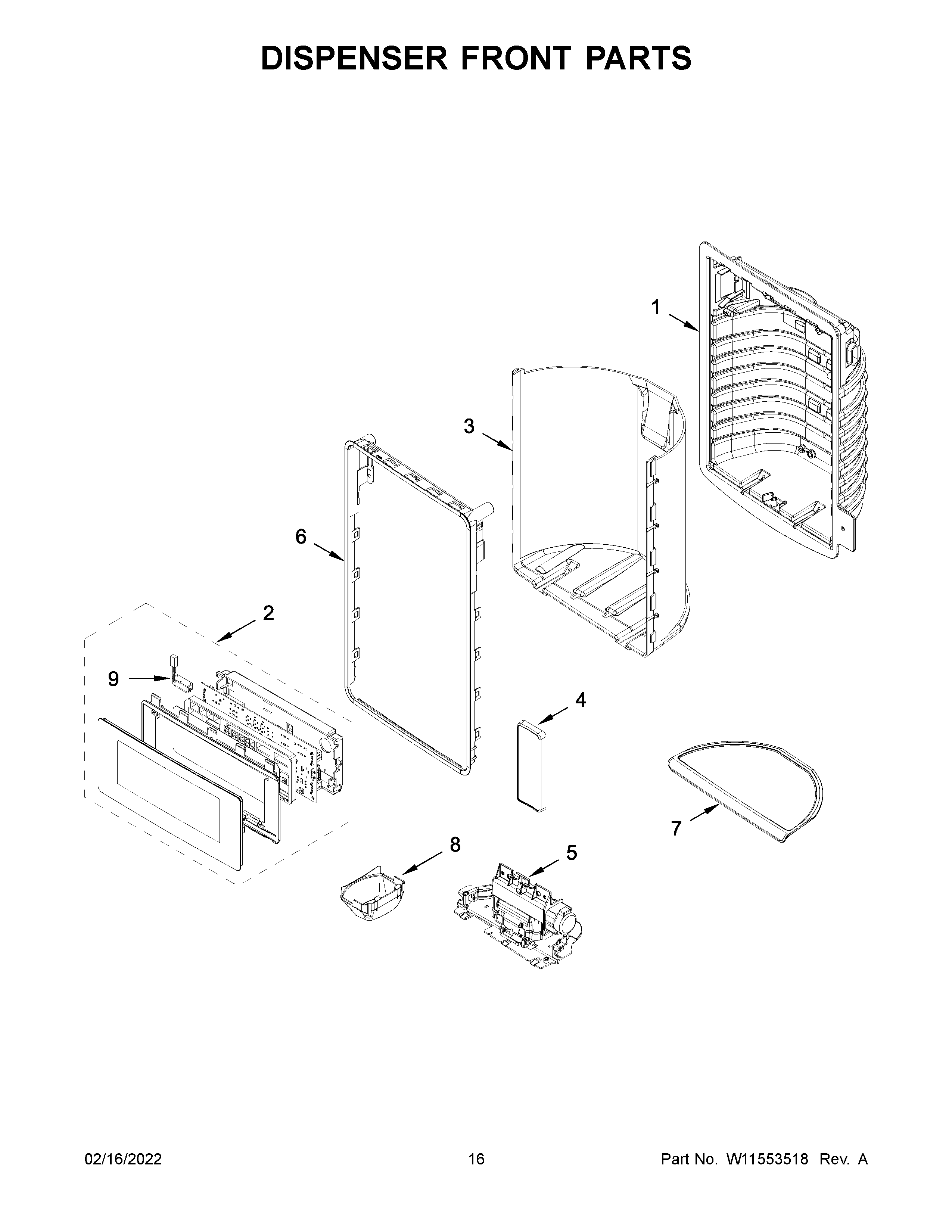

WRF767SDHZ03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11636544 Whirlpool UI Panel + Core
3W10819058 Whirlpool Refrigerator Shield
4W10853387 Whirlpool Refrigerator Pad
5WPW10577864 Whirlpool Refrigerator Ice Door
6WPW10402180 Whirlpool Refrigerator Trim
7W11448765 Whirlpool Drip Tray
8WPW10435760 Whirlpool Refrigerator Ice Guide
9W11290115 Whirlpool Refrigerator Light
