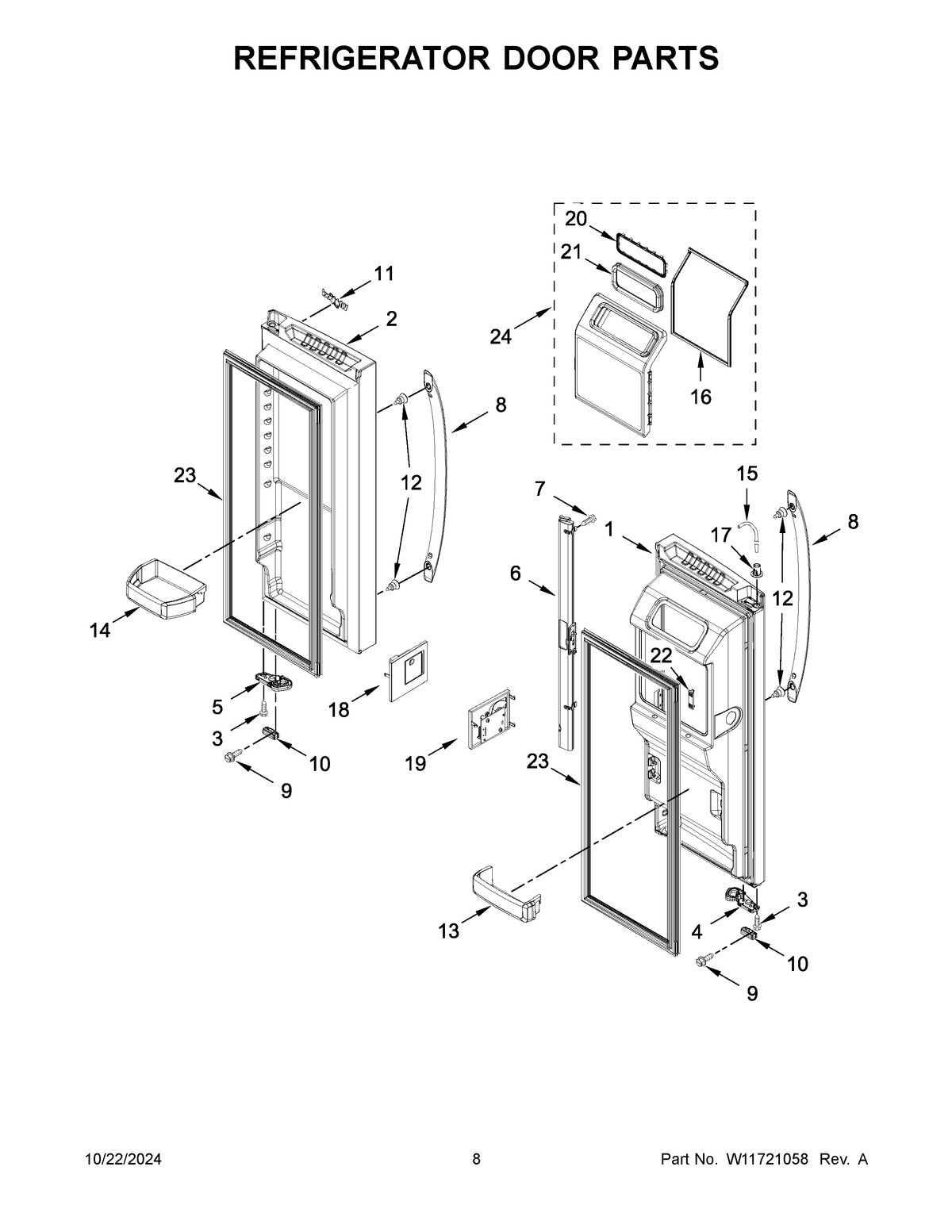

WRF767SDHZ05 05 – REFRIGERATOR DOOR PARTS

WRF767SDHZ05 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF767SDHZ05 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11518736 Whirlpool Refrigerator Door Service Kit W10861207
2W11436604 Whirlpool Refrigerator Door Assembly
4W10904595 Whirlpool Refrigerator Closer
5W11212164 Whirlpool Refrigerator Door Closer
6W10806457 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8HANDLE-REFRIGERATOR SS
9WP98165 Whirlpool Screw
10W11573367 Whirlpool Refrigerator Door Bumper
11W11223753 Whirlpool Refrigerator Nameplate
12W11449276 Whirlpool Handle Support
13W11366475 Whirlpool Refrigerator Trivet
14W11371716 Whirlpool Refrigerator Gallon Door Shelf Bin
15WPW10499015 Whirlpool Refrigerator Water Tube
16W11624997 Whirlpool Refrigerator Gasket
17W11315302 Whirlpool Refrigerator Clip
18CNTRL-ELEC
19CNTRL-ELEC
20WPW10400825 Whirlpool Refrigerator Retainer
21WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
22VENT, THERMISTOR
23W10407212 Whirlpool Door Gasket
24W11171728 Whirlpool Refrigerator Ice Door
