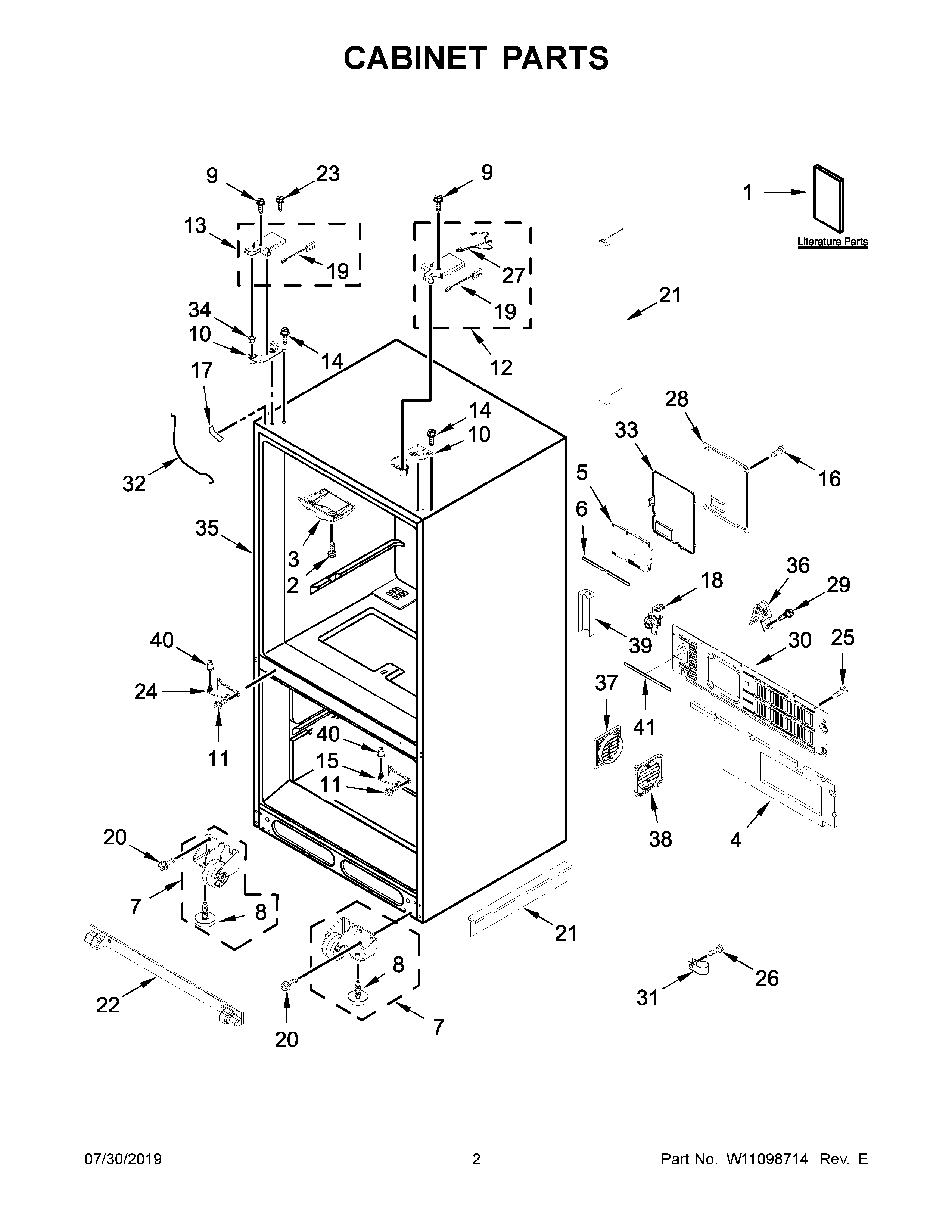

WRF954CIHB00 02 – CABINET PARTS

WRF954CIHB00 02 – CABINET PARTS

Written by

in

WRF954CIHB00 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET, USE AND CARE GUIDE
1ATECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1CTECH SHEET, ENERGY GUIDE
2W10854958 Whirlpool Refrigerator Screw
3W10840310 Whirlpool Refrigerator PIV Block
4W11688554 Whirlpool Insulation
5W11533212-includeCORE Whirlpool W11533212 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7ROLLER-CAB
7AROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP98165 Whirlpool Screw
10W11032616 Whirlpool Refrigerator Door Hinge
10AW11032620 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11251737 Whirlpool Refrigerator Cover
12AW11251738 Whirlpool Refrigerator Cover
12BW10895492 Whirlpool Refrigerator Cover
13BW11371720 Whirlpool Refrigerator Cover
13AW11225850 Whirlpool Refrigerator Cover
13W10895447 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15HINGE, CENTER RIGHT HAND (WHITE)
15BW10816323 Whirlpool Refrigerator Door Hinge
15AW10691700 Whirlpool Refrigerator Door Hinge
16W11686675 Whirlpool Screw
17BW10868482 Whirlpool Cover
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18VALVE
19W11221357 Whirlpool Refrigerator Switch
2067006564 Whirlpool Refrigerator Screw
21W10878918 Whirlpool Refrigerator Divider
21AW10878920 Whirlpool Refrigerator Divider
22AW10887785 Whirlpool Refrigerator Front Grille
22BW10887787 Whirlpool Refrigerator Front Grille
22GRILLE, TOE (WHITE)
23W11214483 Whirlpool Refrigerator Screw
24BW10816322 Whirlpool Refrigerator Door Hinge
24AW10691674 Whirlpool Refrigerator Door Hinge
24W10691676 Whirlpool Refrigerator Door Hinge
2667006425 Whirlpool Refrigerator Screw
27W10858468 Whirlpool Refrigerator Wire Harness
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W10669259 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32AW10853599 Whirlpool Refrigerator Water Tube
32W10853597 Whirlpool Refrigerator Water Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37WPL W10835553
37AWPL W10835554
37BWPL W10838744
38WPL W10835556
38BWPL W10838745
38AW10835557 Whirlpool Refrigerator Vent
39W10208592 Whirlpool Refrigerator Valve Cover
40W11223833 Whirlpool Refrigerator Hinge Bushing
41WPL W11243631
