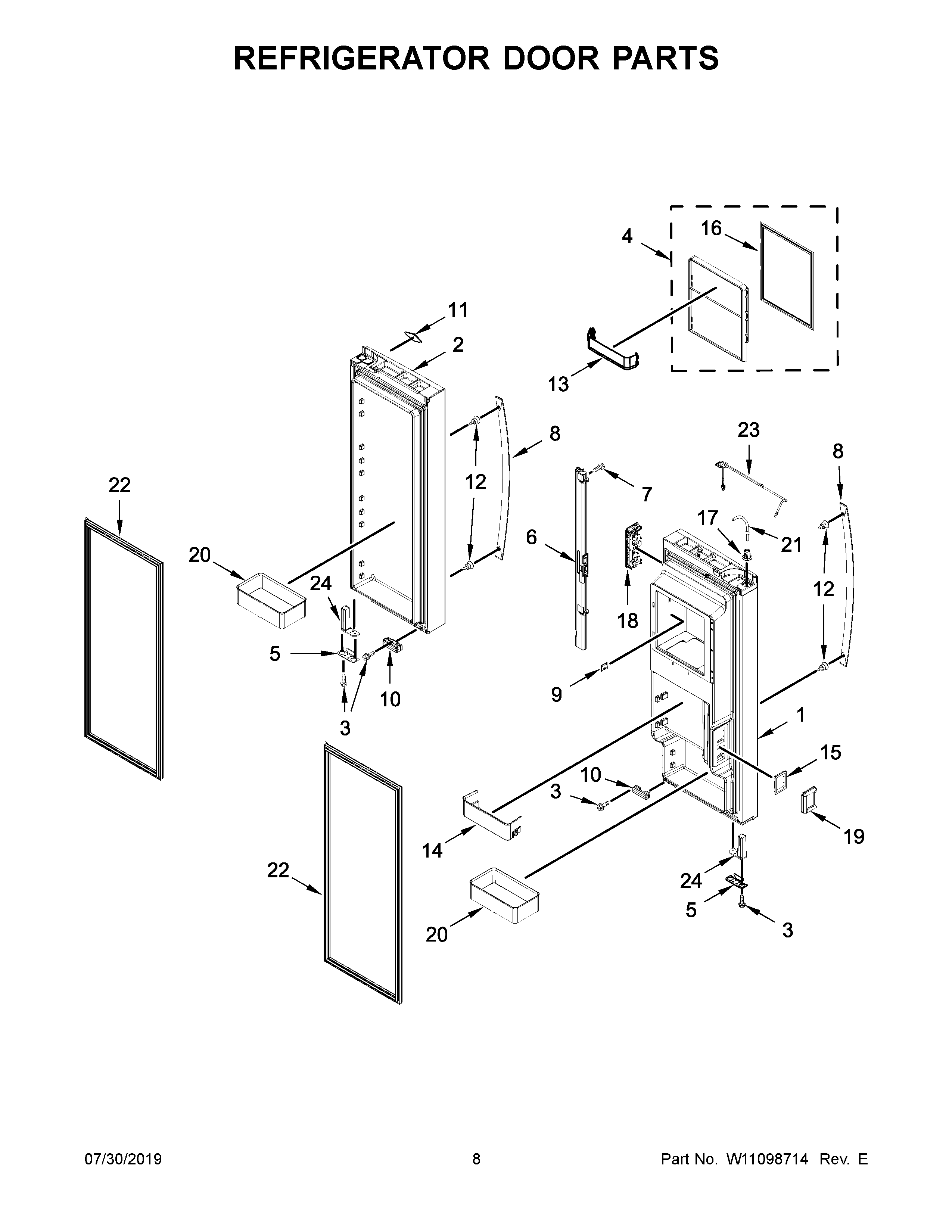

WRF954CIHB00 05 – REFRIGERATOR DOOR PARTS

WRF954CIHB00 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF954CIHB00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE (ALSO ORDER ITEM # 18))
1A	LW10882869 Whirlpool Refrigerator Door FIP
1B	LW11039240 Whirlpool Refrigerator Door FIP
2B	LW11039241 Whirlpool Refrigerator Door FIP
2C	W10849508 Whirlpool Refrigerator Door Assembly
2A	LW10882871 Whirlpool Refrigerator Door FIP
2	LW10882872 Whirlpool Refrigerator Door FIP
4	W11594925 Whirlpool Ice Door
5	W11243377 Whirlpool Refrigerator Door Stop
6B	W11649966 Whirlpool Mullion Rail
6	W11099753 Whirlpool Refrigerator Mullion Rail
6A	W11084811 Whirlpool Refrigerator Mullen Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11127179 Whirlpool Refrigerator Handle
8A	W11099758 Whirlpool Refrigerator Handle
8B	W11043764 Whirlpool Refrigerator Handle
8C	HANDLE-REFRIGERATOR SS
9	W11123943 Whirlpool Refrigerator Switch
10B	W10798308 Whirlpool Refrigerator Door Bumper
10	BUMPER, DOOR (WHITE)
10A	W10407187 Whirlpool Refrigerator Door Bumper
11	W11223753 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W11188797 Whirlpool Refrigerator Trivet
14	W11099662 Whirlpool Refrigerator Cantilever Bin
15	W10720065 Whirlpool Refrigerator Retainer
16	W11625084 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	W11314429 Whirlpool Refrigerator User Interface Panel
19	W10720073 Whirlpool Refrigerator Gasket
20	W11213874 Whirlpool Refrigerator Cantilever Bin
21	W10883965 Whirlpool Refrigerator Water Tube
22B	W10917313 Whirlpool Refrigerator Door Gasket
22A	W10917312 Whirlpool Refrigerator Door Gasket
22	W10917311 Whirlpool Refrigerator Door Gasket
23	W11366500 Whirlpool Refrigerator Water Tube
24	W11163783 Whirlpool Refrigerator Closer
24A	W11188796 Whirlpool Refrigerator Closer
