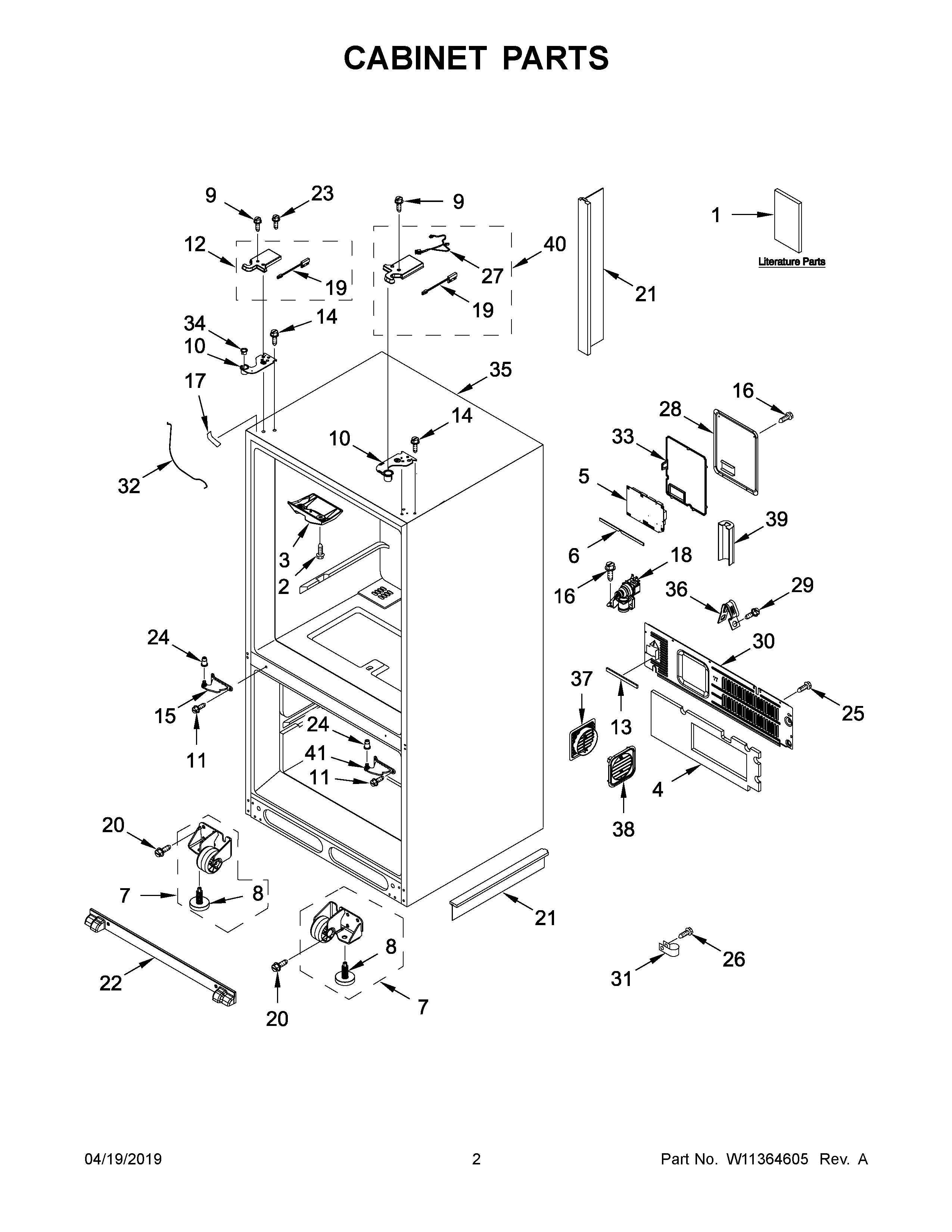

WRF954CIHB01 02 – CABINET PARTS

Products

Position	Product
1B	TECH SHEET, USE AND CARE GUIDE
1	TECH SHEET (ENGLISH)
1A	TECH SHEET (FRENCH)
1C	TECH SHEET, ENERGY GUIDE
2	W10854958 Whirlpool Refrigerator Screw
3	W10840310 Whirlpool Refrigerator PIV Block
4	W11688554 Whirlpool Insulation
5	W11533212-includeCORE Whirlpool W11533212 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	ROLLER-CAB
7A	ROLLER-CAB
8	W10846099 Whirlpool Refrigerator Leveler
9	WP98165 Whirlpool Screw
10	W11032616 Whirlpool Refrigerator Door Hinge
10A	W11032620 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W10895447 Whirlpool Refrigerator Cover
12A	W11225850 Whirlpool Refrigerator Cover
13A	W11251738 Whirlpool Refrigerator Cover
13	W11251737 Whirlpool Refrigerator Cover
14	W11126052 Whirlpool Screw Assembly
15	W10691676 Whirlpool Refrigerator Door Hinge
15A	W10691674 Whirlpool Refrigerator Door Hinge
16	HINGE, CENTER RIGHT HAND (WHITE)
16A	W10691700 Whirlpool Refrigerator Door Hinge
17	12587703W Whirlpool Refrigerator Cover
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	VALVE
19	W11221357 Whirlpool Refrigerator Switch
20	67006564 Whirlpool Refrigerator Screw
21	W10878918 Whirlpool Refrigerator Divider
21A	W10878920 Whirlpool Refrigerator Divider
22A	W10887785 Whirlpool Refrigerator Front Grille
22	GRILLE, TOE (WHITE)
23	W11214483 Whirlpool Refrigerator Screw
24	W11223833 Whirlpool Refrigerator Hinge Bushing
26	67006425 Whirlpool Refrigerator Screw
27	W10858468 Whirlpool Refrigerator Wire Harness
28	W10754144 Whirlpool Refrigerator Cover
29	SCREW
30	W10669259 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W10853597 Whirlpool Refrigerator Water Tube
32A	W10853599 Whirlpool Refrigerator Water Tube
33	W10768379 Whirlpool Refrigerator Cover
34	W10705239 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	WPL W10835553
37A	WPL W10835554
38	WPL W10835556
38A	W10835557 Whirlpool Refrigerator Vent
39	W10208592 Whirlpool Refrigerator Valve Cover
40	WPL W11243631
41	W11686675 Whirlpool Screw
