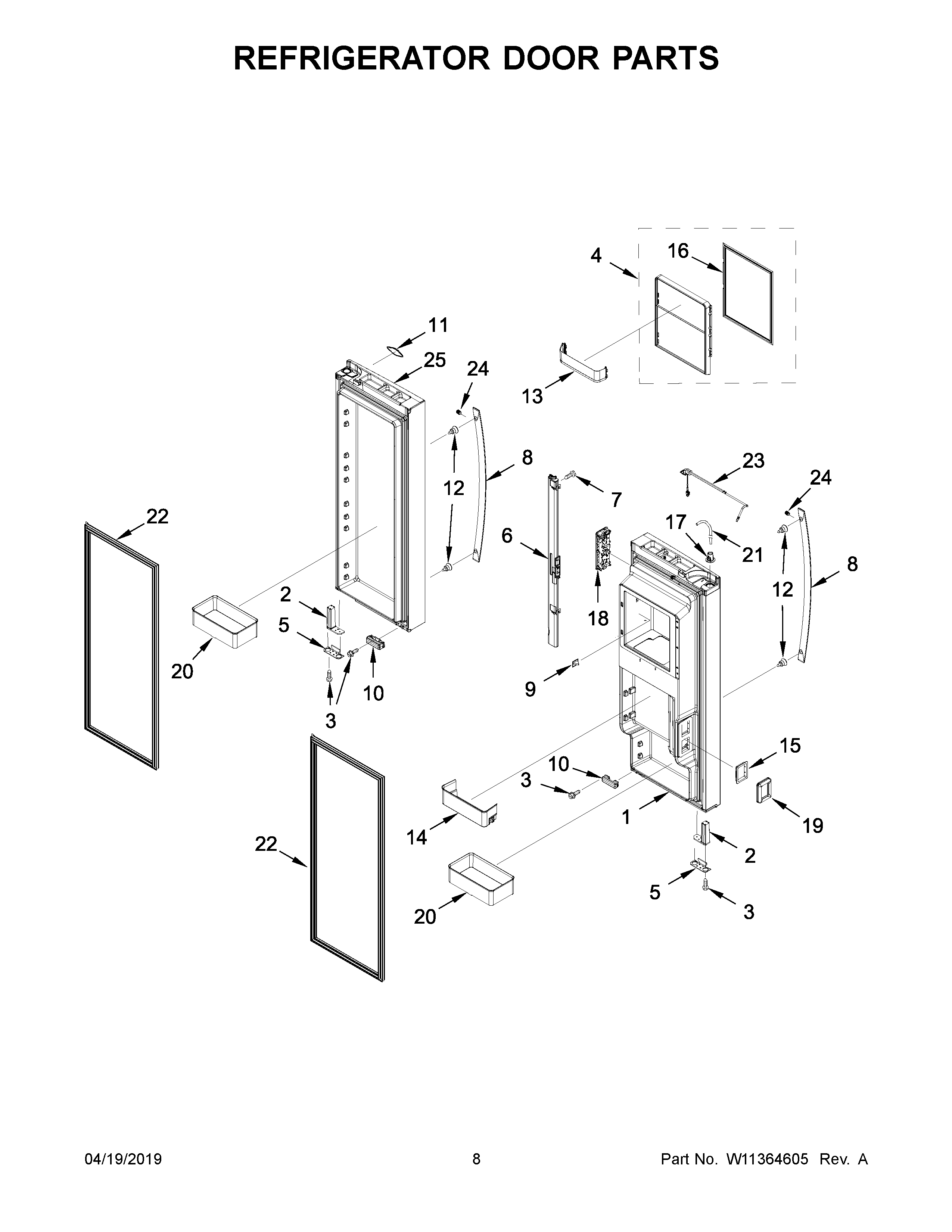

WRF954CIHB01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	LW10882869 Whirlpool Refrigerator Door FIP
1	DOOR, LEFT (WHITE (ALSO ORDER ITEM # 18))
2A	LW10882871 Whirlpool Refrigerator Door FIP
2	LW10882872 Whirlpool Refrigerator Door FIP
4	W11594925 Whirlpool Ice Door
5	W11243377 Whirlpool Refrigerator Door Stop
6A	W11084811 Whirlpool Refrigerator Mullen Rail
6	W11099753 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8A	W11099758 Whirlpool Refrigerator Handle
8	W11127179 Whirlpool Refrigerator Handle
9	W11123943 Whirlpool Refrigerator Switch
10	BUMPER, DOOR (WHITE)
10A	W10407187 Whirlpool Refrigerator Door Bumper
11	W11223753 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W11188797 Whirlpool Refrigerator Trivet
14	W11099662 Whirlpool Refrigerator Cantilever Bin
15	W10720065 Whirlpool Refrigerator Retainer
16	W11625084 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	W11314429 Whirlpool Refrigerator User Interface Panel
19	W10720073 Whirlpool Refrigerator Gasket
20	W11213874 Whirlpool Refrigerator Cantilever Bin
21	W10883965 Whirlpool Refrigerator Water Tube
22A	W10917312 Whirlpool Refrigerator Door Gasket
22	W10917311 Whirlpool Refrigerator Door Gasket
23	W11366500 Whirlpool Refrigerator Water Tube
24	SCREW
25A	W11188796 Whirlpool Refrigerator Closer
25	W11163783 Whirlpool Refrigerator Closer
