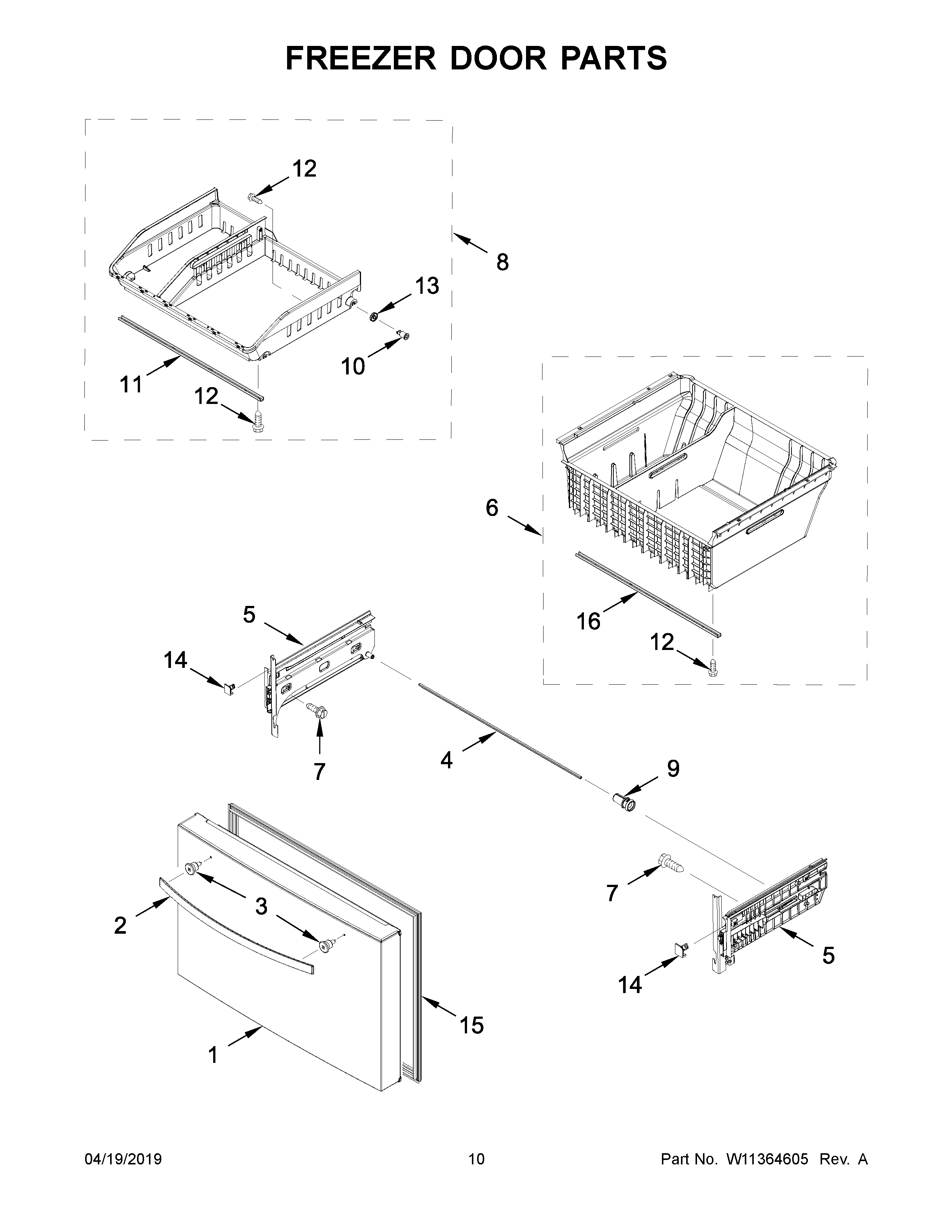

WRF954CIHB01 06 – FREEZER DOOR PARTS

Products

Position	Product
1A	DOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK)
1	DOOR, FREEZER (INCLUDES DOOR GASKET) (WHITE)
2A	HANDLE, DOOR (BLACK)
2	W11099761 Whirlpool Refrigerator Handle
3	W11449276 Whirlpool Handle Support
4	W11173556 Whirlpool Refrigerator Shaft
5	W11114790 Whirlpool Refrigerator Bracket
5A	W11114789 Whirlpool Refrigerator Right Hand White Freezer Slide Adapter
6	W10795850 Whirlpool Refrigerator Freezer Bin
7	WP67006908 Whirlpool Refrigerator Screw
8	ASSEMBLY, TOP PAN
9	WPW10277361 Whirlpool Refrigerator Collar
10	W11573594 Whirlpool Refrigerator Axle
11	W11677723 Whirlpool Support
12	WP489443 Whirlpool Refrigerator Screw
13	ROLLER, PAN
14A	WPW10485089 Whirlpool Refrigerator Pan Stop
14	WPW10485096 Whirlpool Refrigerator Pan Stop
15	GASKET, DOOR (WHITE)
15A	W11594710 Whirlpool Gasket
16	BAR, SUPPORT
