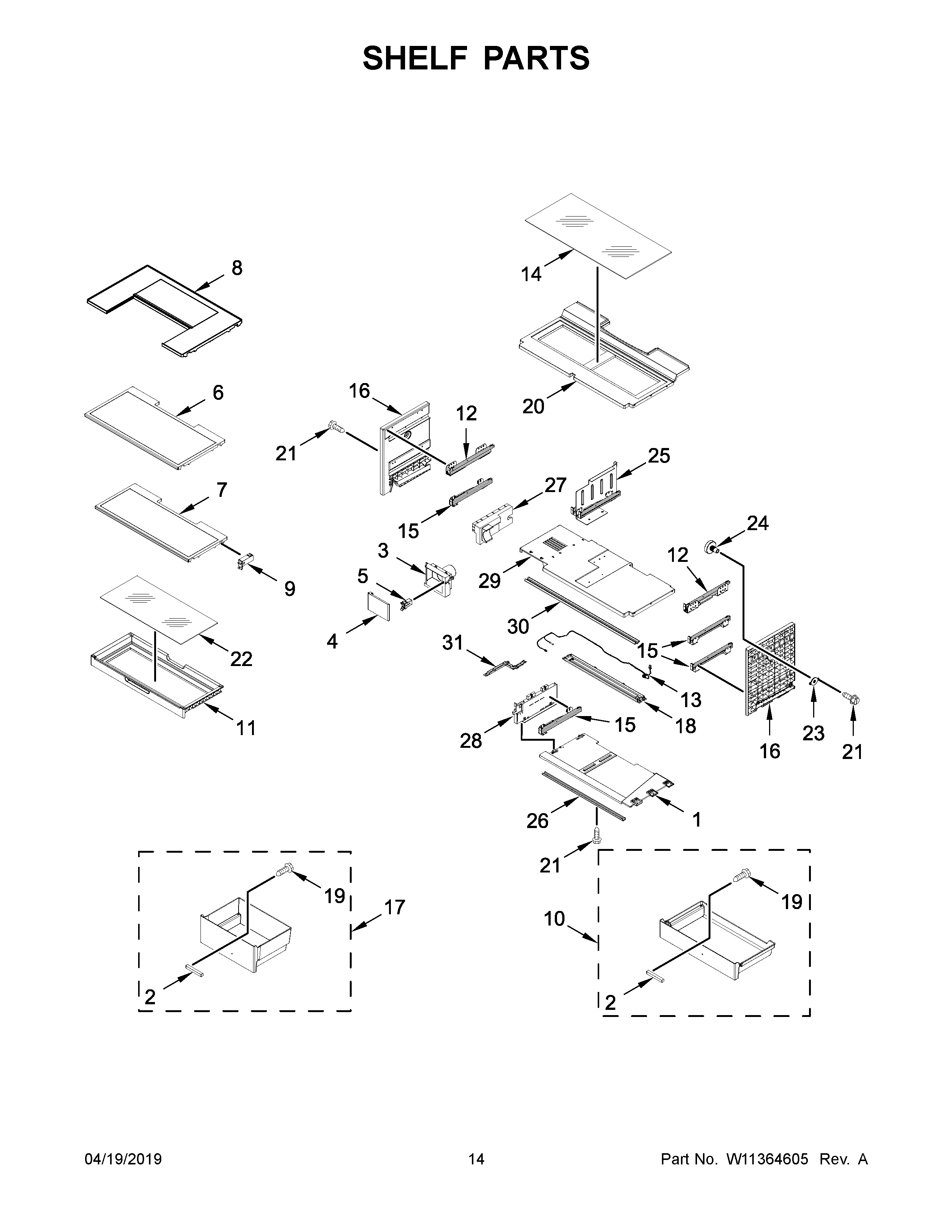

WRF954CIHB01 08 – SHELF PARTS

WRF954CIHB01 08 – SHELF PARTS

Written by

in

WRF954CIHB01 08 – SHELF PARTS

Products

PositionProduct
1BASE, PANTRY
2W10717577 Whirlpool Pan Handle
3W11347066 Whirlpool Refrigerator Housing
4COVER, WIRING HARNESS
5WP2223877 Whirlpool Door Hook
6W11099737 Whirlpool Refrigerator Glass Shelf
7W11251739 Whirlpool Refrigerator Glass Shelf
8W11099777 Whirlpool Refrigerator Glass Shelf
9AW10753431 Whirlpool Refrigerator Shelf Stud
9W10753430 Whirlpool Refrigerator Shelf Stud
10W11099778 Whirlpool Refrigerator Utility Pan
11W11099779 Whirlpool Refrigerator Shelf
12GLIDE, PLATTER (LEFT HAND)
12AW10881121 Whirlpool Refrigerator Glide
13W11744510 Whirlpool Wire Harness
14GLASS, CRISPER COVER
15AW10892561 Whirlpool Refrigerator Glide
15W10892559 Whirlpool Refrigerator Glide
16SUPPORT, SIDE (LEFT HAND)
16ASUPPORT, SIDE (RIGHT HAND)
17W11099781 Whirlpool Refrigerator Crisper Pan
17AW11099786 Whirlpool Refrigerator Crisper Pan
18W11401419 Whirlpool Refrigerator Module
19WP3400065 Whirlpool Refrigerator Screw
20W10878157 Whirlpool Refrigerator Frame
21W10847999 Whirlpool Refrigerator Screw
22W11099787 Whirlpool Refrigerator Glass Shelf
23FLANGE, SIDE SUPPORT
24W10840922 Whirlpool Refrigerator Knob
25W10880762 Whirlpool Refrigerator Support
26BAR, SUPPORT
27W11084829 Whirlpool Refrigerator Insulation
28W10794289 Whirlpool Refrigerator Support
29W10878186 Whirlpool Cover Assembly
