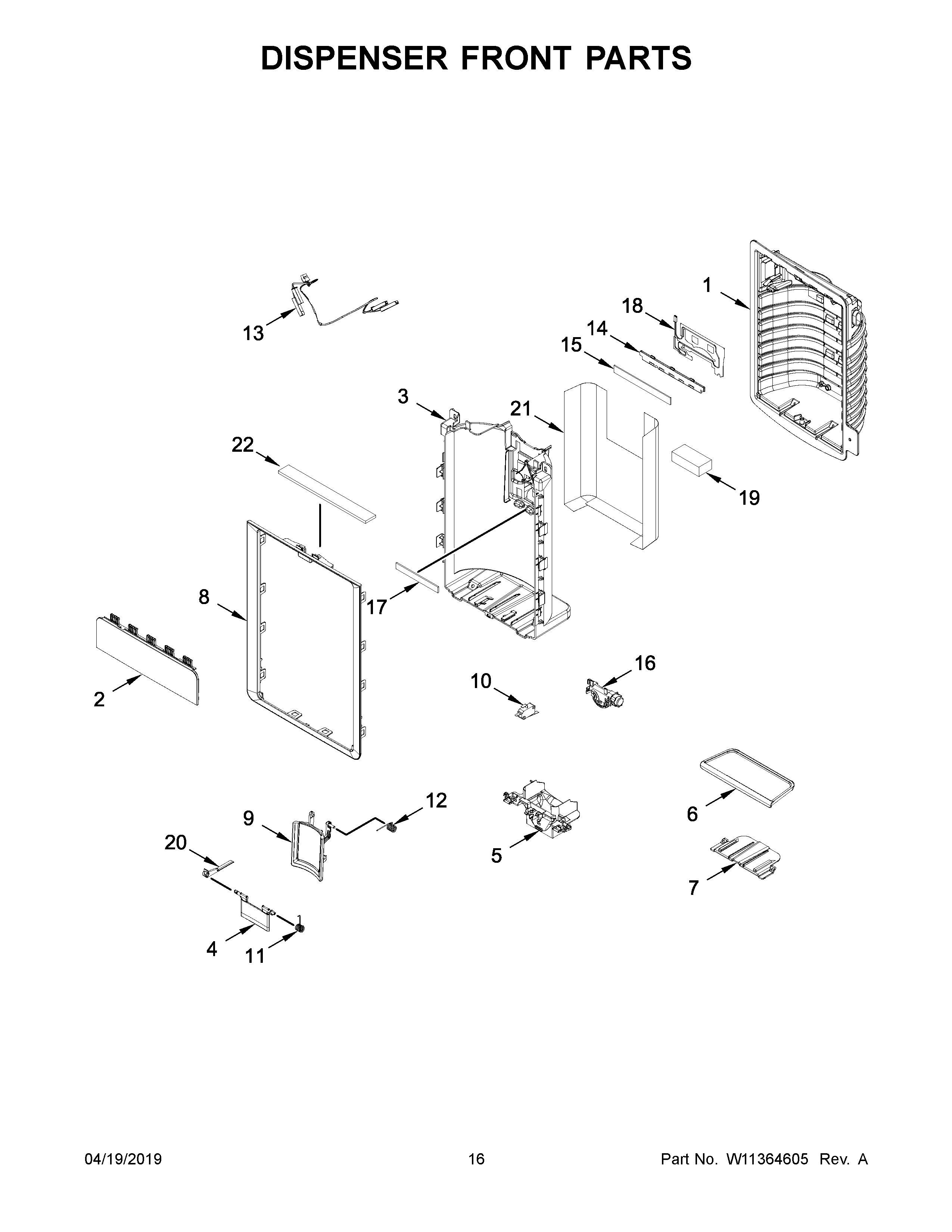

WRF954CIHB01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11533212-includeCORE Whirlpool W11533212 Refrigerator Electronic Control Board + Core
3AWALL, DISPENSER FALSE (BLACK)
3WALL, DISPENSER FALSE (WHITE)
4APADDLE, WATER DISPENSER (BLACK)
4W10678156 Whirlpool Refrigerator Pad
5AW11086000 Whirlpool Refrigerator Separator
5W11085970 Whirlpool Refrigerator Ice Door
6W11209885 Whirlpool Refrigerator Drip Tray
7AW11026725 Whirlpool Tray
7W11026724 Whirlpool Refrigerator Drip Tray
8W10757512 Whirlpool Refrigerator Trim
9W10672575 Whirlpool Refrigerator Pad
9AW11102448 Whirlpool Refrigerator Pad
10W11087492 Whirlpool Refrigerator Water Dispenser Switch
11W10672578 Whirlpool Refrigerator Spring
12W11109505 Whirlpool Refrigerator Spring
13W10704135 Whirlpool Refrigerator Wire Harness
14W10757499 Whirlpool Refrigerator Bracket
15W10696713 Whirlpool Refrigerator Door Gasket
16W11189145 Whirlpool Refrigerator Ice Door
17W10663699 Whirlpool Refrigerator Gasket
18W10752689 Whirlpool Refrigerator Heater
19W10882291 Whirlpool Refrigerator Gasket
20W10680037 Whirlpool Refrigerator Dispenser Arm
21FOIL, DISPENSER WELL
22GASKET, DISPENSER TRIM
