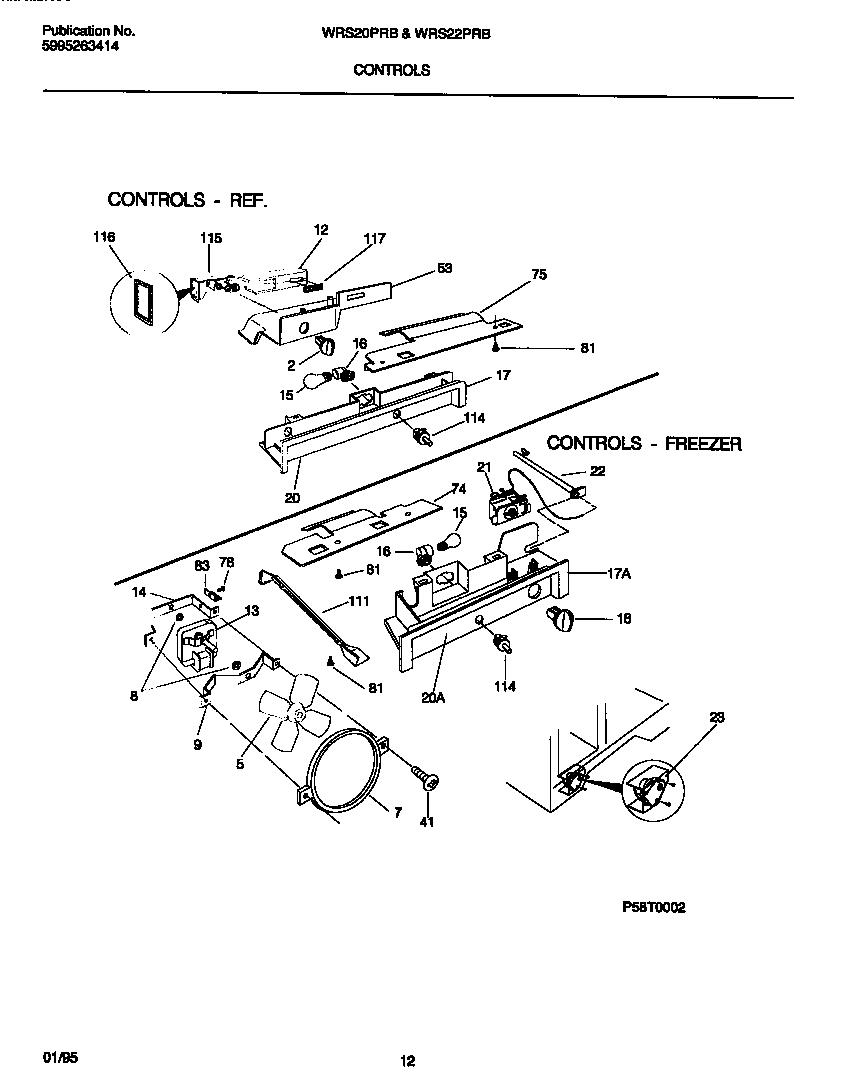

WRS20PRBD1 06 – CONTROLS

WRS20PRBD1 06 – CONTROLS

Written by

in

WRS20PRBD1 06 – CONTROLS

Products

PositionProduct
*90289SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2WCI 215028602
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215901100
13WCI 215348100
13215474201 Frigidaire Refrigerator Washer
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17AWCI 5303289056
17CONTROL BOX, REFR
18WCI 215051002
20AWCI 5303304841
20WCI 5303304842
21WCI 5303294323
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23SHIELD-DEFROST TIMR,BTM
23COVER-DEFROST TIMER, TOP
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
42NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215625300
74WCI 5303289057
75WCI 5303289052
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011501
116WCI 215011400
117WCI 215011700
