WRS20PRCD0 03 – REFRIGERATOR DOOR

WRS20PRCD0 03 – REFRIGERATOR DOOR

Written by

in

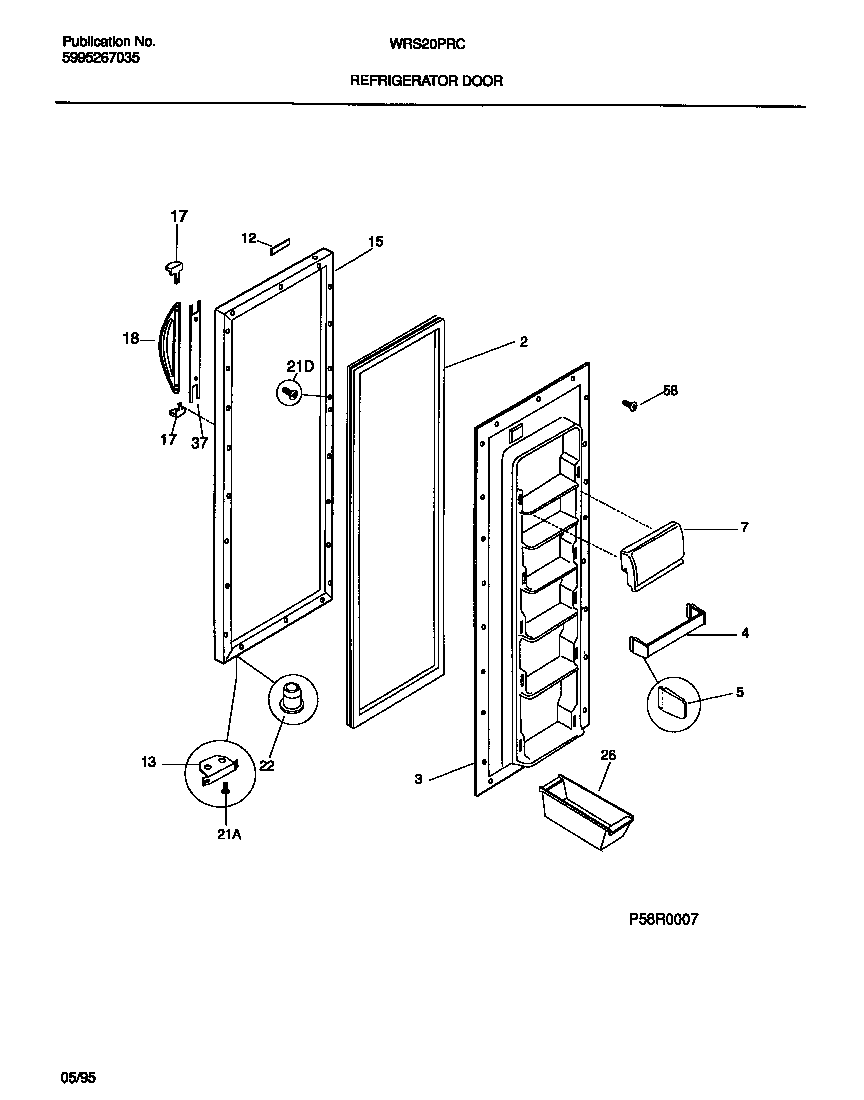

WRS20PRCD0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*13843INSULATION
*13842WCI 215361200
2WCI 215734302
3WCI 5303288953
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 5303310136
12WCI 215220340
12WCI 215366311
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15PANEL-REFR DOOR, ALMOND, W/ FOAM INSUL
17WCI 215422000
18WCI 218436902
21D5304500008 Frigidaire Oven Screw
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
37WCI 215219801
585304455651 Frigidaire Refrigerator Screw
