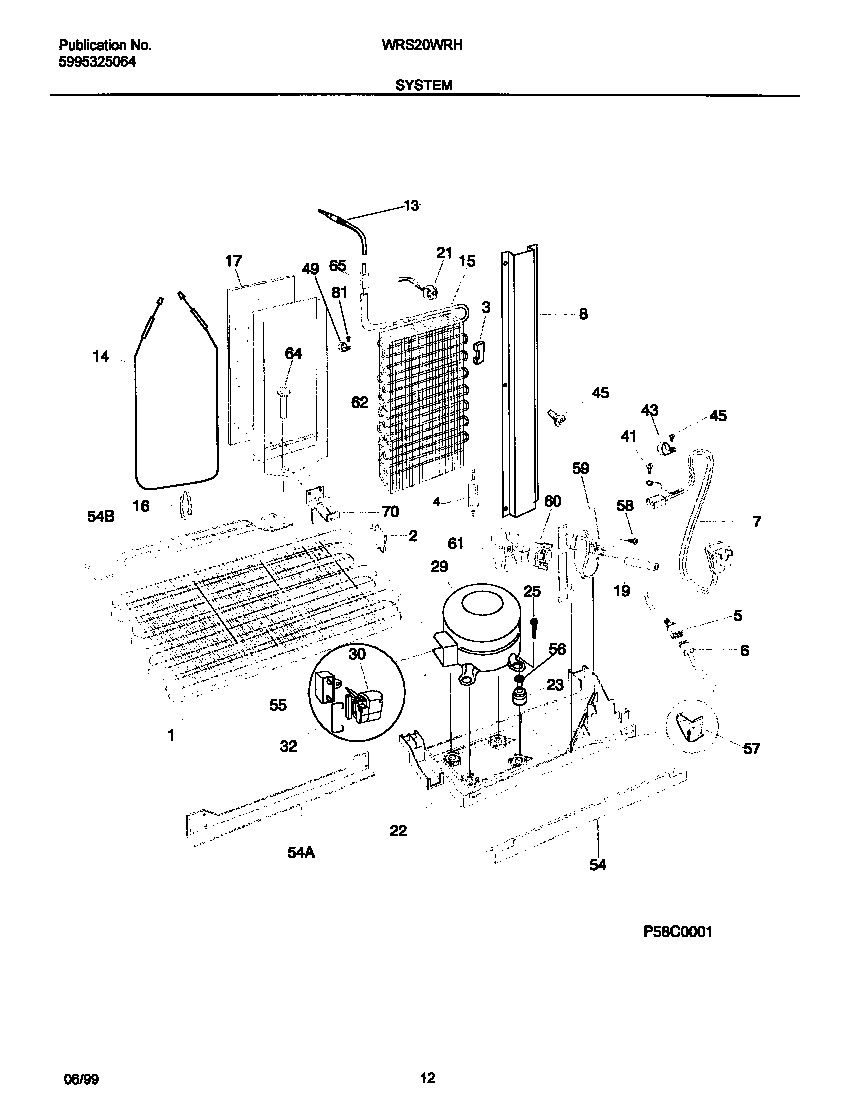

WRS20WRHD0 07 – SYSTEM

WRS20WRHD0 07 – SYSTEM

Written by

in

WRS20WRHD0 07 – SYSTEM

Products

PositionProduct
*39356WCI 215004800
*39354WCI 215732700
*39348WIRING HARNESS,REFR CONTROLS
*39349WIRING HARNESS,FRZR CONTROLS
*39346SPACER-COND TUBE,BLACK
*39347SPACER TUBE
*39357WCI 5303917166
*39350TUBE-INLET (NOT ILLUSTRATED)
*393535304455852 Frigidaire Refrigerator Screw
*39355WCI 215004700
*393515303001199 Frigidaire Refrigerator Wiring Harness Clamp
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WCI 218897101
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435308000133 Frigidaire Refrigerator Clamp
45WCI 218769200
49WCI 215506900
54WCI 5303289292
54WCI 5303289311
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
