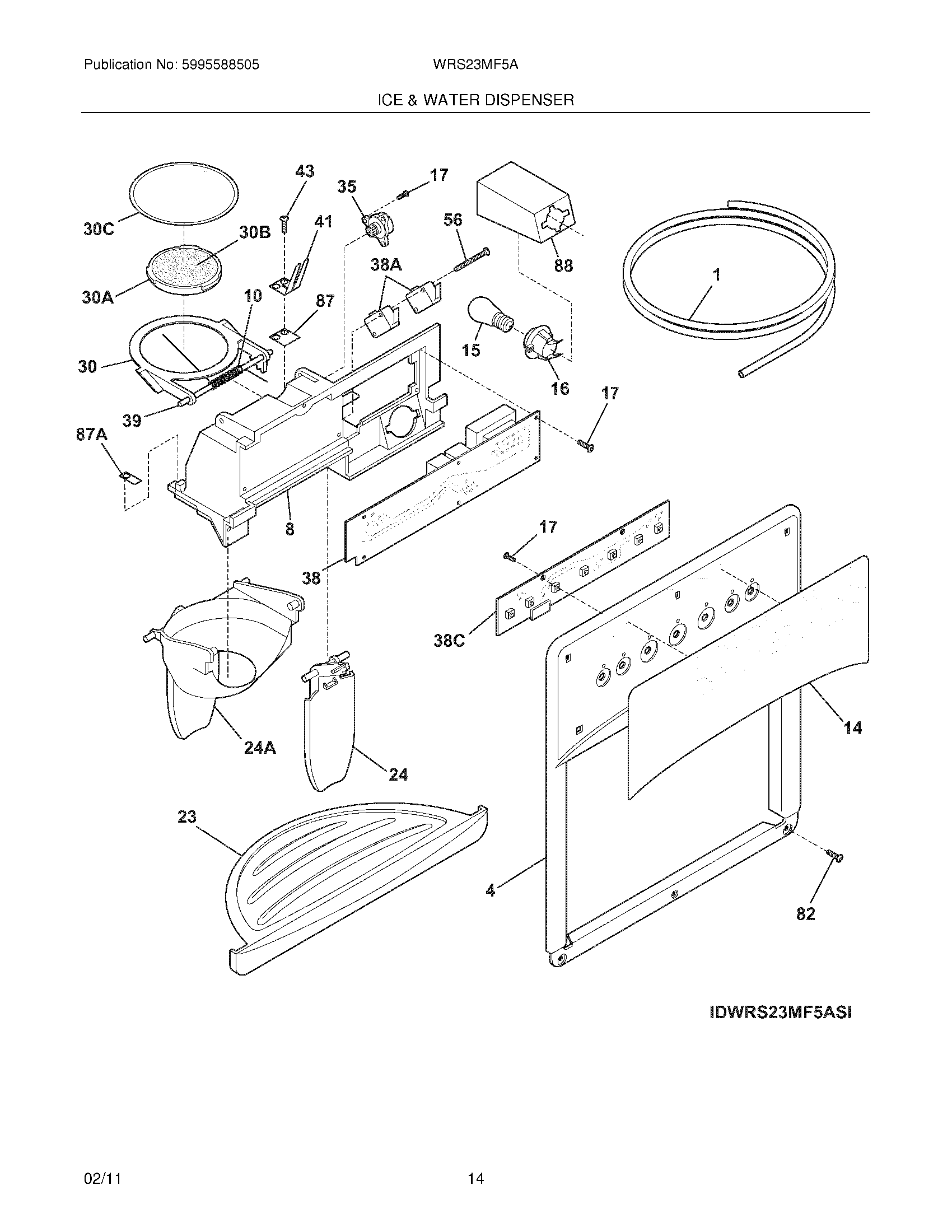

WRS23MF5ASY 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	218976418 Frigidaire Refrigerator Water Inlet Tube
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	240561701 Frigidaire Refrigerator Seal
NI	218976419 Frigidaire Refrigerator Tube
NI	WCI 241686201
NI	5304453707 Frigidaire Oven Screw
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 241678703
8	WCI 241680507
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 240323945
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	241679801 Frigidaire Screw
23	241649003 Frigidaire Refrigerator Drip Tray
24A	241681903 Frigidaire Refrigerator Ice Dispenser Actuator
24	241682003 Frigidaire Refrigerator Black Water Dispenser Actuator
30C	241688701 Frigidaire Refrigerator Door Seal
30B	241688601 Frigidaire Refrigerator Door Insulation
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
35	241689301 Frigidaire Refrigerator Rotary Damper
38C	WCI 241680001
38	241708201 Frigidaire Refrigerator Power Board
38C	WCI 241708303
38A	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
88	WCI 241686101
