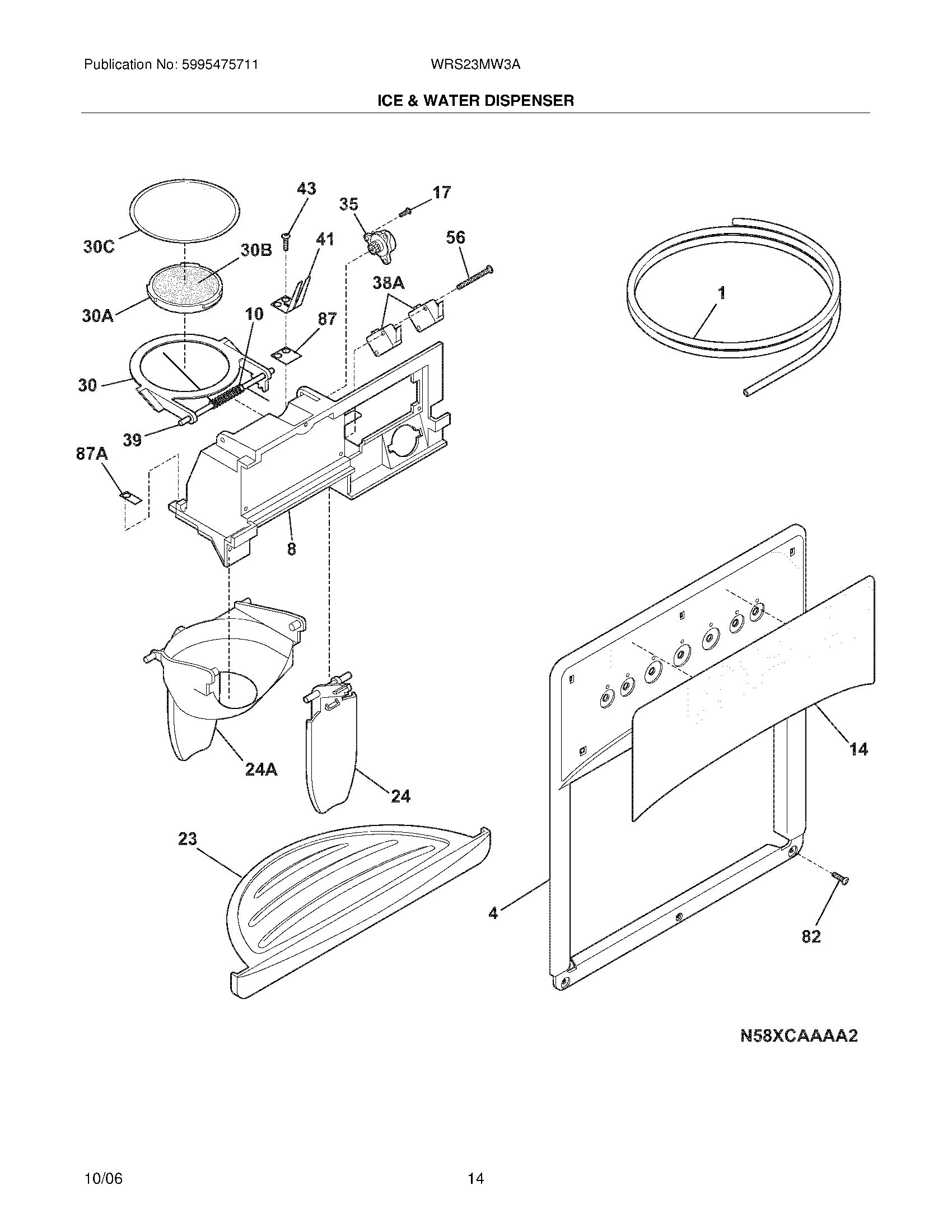

WRS23MW3AWF 15 – ICE & WATER DISPENSER

WRS23MW3AWF 15 – ICE & WATER DISPENSER

Written by

in

WRS23MW3AWF 15 – ICE & WATER DISPENSER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI240561701 Frigidaire Refrigerator Seal
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
1218976409 Frigidaire Refrigerator Water Tube
4WCI 241678705
8WCI 241680501
10241688901 Frigidaire Refrigerator Torsion Spring
14WCI 240323940
17241679801 Frigidaire Screw
23241649007 Frigidaire Drip Tray Assembly (Grey)
24241682001 Frigidaire Actuator Lever
24A241681901 Frigidaire Refrigerator Ice Actuator
30241688401 Frigidaire Ice Door Bracket
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30A241688501 Frigidaire Refrigerator Door Center
35241689301 Frigidaire Refrigerator Rotary Damper
38AWCI 241733101
38A241689106 Frigidaire Refrigerator Micro Switch
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
