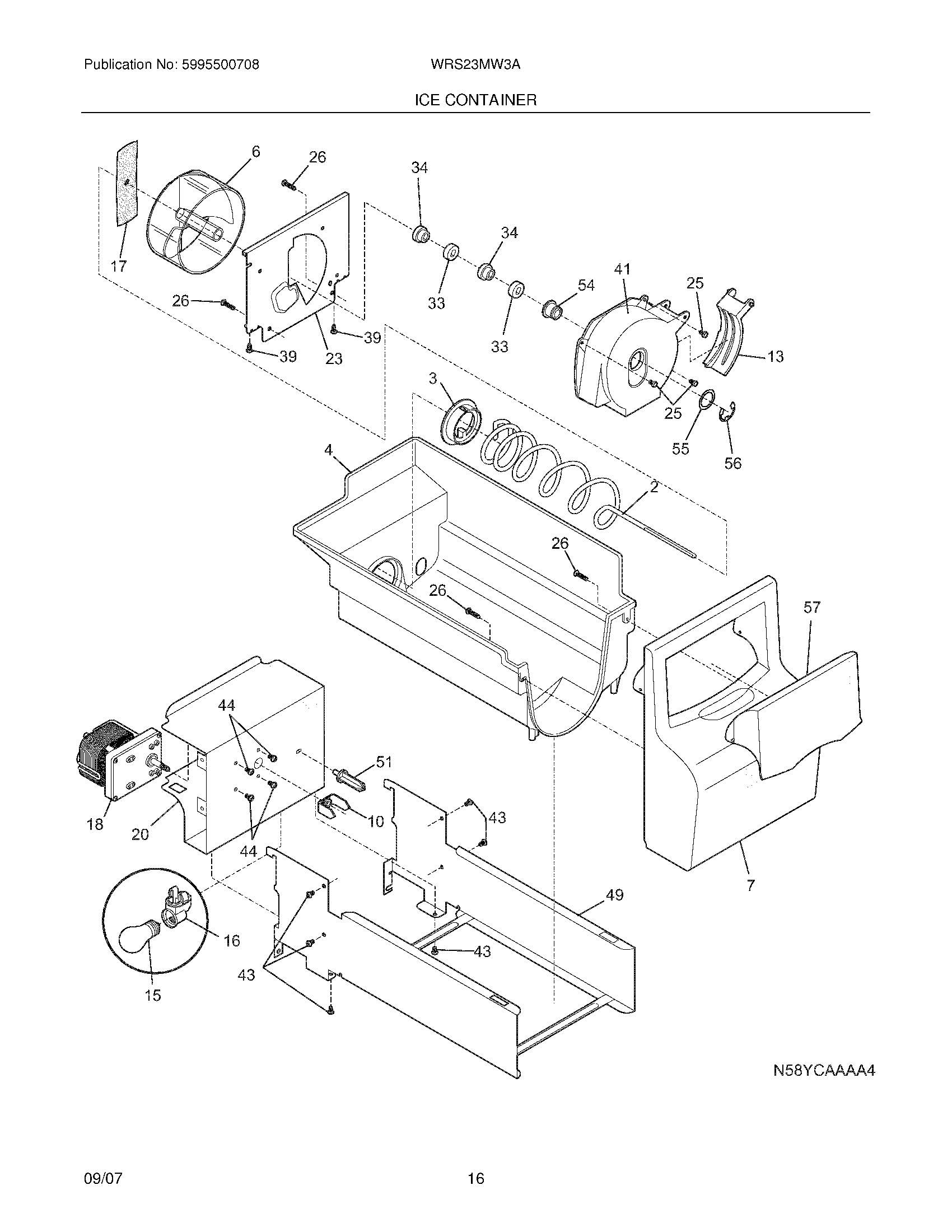

WRS23MW3AWK 17 – ICE CONTAINER

Products

Position	Product
NI	WCI 241860802
NI	240507202 Frigidaire Refrigerator Deflector
NI	WCI 240352602
2	241716101 Frigidaire Refrigerator Ice Auger
3	241685201 Frigidaire Refrigerator Drive Cam
4	241734001 Frigidaire Refrigerator Ice Bucket
6	241685101 Frigidaire Refrigerator Ice Dispenser Drum
7	241734201 Frigidaire Refrigerator Front Ice Container
10	241726501 Frigidaire Refrigerator Drive Bar
13	241885001 Frigidaire Refrigerator Ice Crusher Housing
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	241684503 Frigidaire Ice Crusher Blade
18	242221501 Frigidaire Refrigerator Auger Motor
20	241734802 Frigidaire Refrigerator Cover
23	241684001 Frigidaire Refrigerator Plate-Front
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26	241690602 Frigidaire Refrigerator Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
39	241690501 Frigidaire Refrigerator Screw
44	218359202 Frigidaire Refrigerator Screw
49	241734401 Frigidaire Refrigerator Rail Assembly
51	WCI 241676301
54	241685001 Frigidaire Auger Nut
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
57	241734101 Frigidaire Refrigerator Front Access Door Ice Bin
