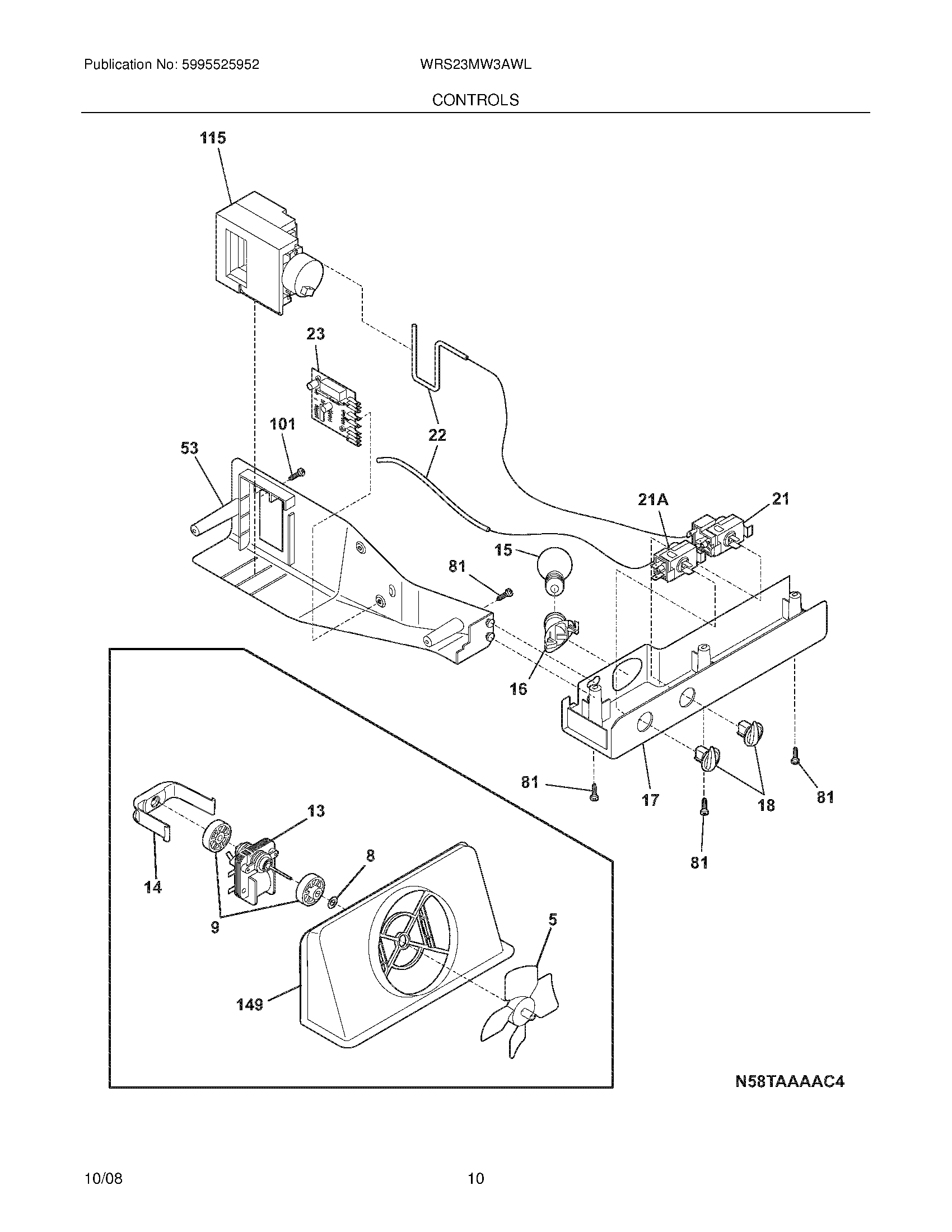

WRS23MW3AWL 11 – CONTROLS

WRS23MW3AWL 11 – CONTROLS

Written by

in

WRS23MW3AWL 11 – CONTROLS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NIWCI 241735702
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8215474201 Frigidaire Refrigerator Washer
9241563601 Frigidaire Refrigerator Motor Mounting Bushing
13EVAP MOTOR KIT
14242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 240374004
18Knob-control
21241537104 Frigidaire Refrigerator Thermostat
21A5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
22218660704 Frigidaire Refrigerator Tube-Insulator
23242011001 Frigidaire Refrigerator Defrost Control
53240369501 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101241637202 Frigidaire Refrigerator Screw
115241600906 Frigidaire Refrigerator Damper Control Assembly
149242204505 Frigidaire Refrigerator Shroud
149241528303 Frigidaire Refrigerator Seal
