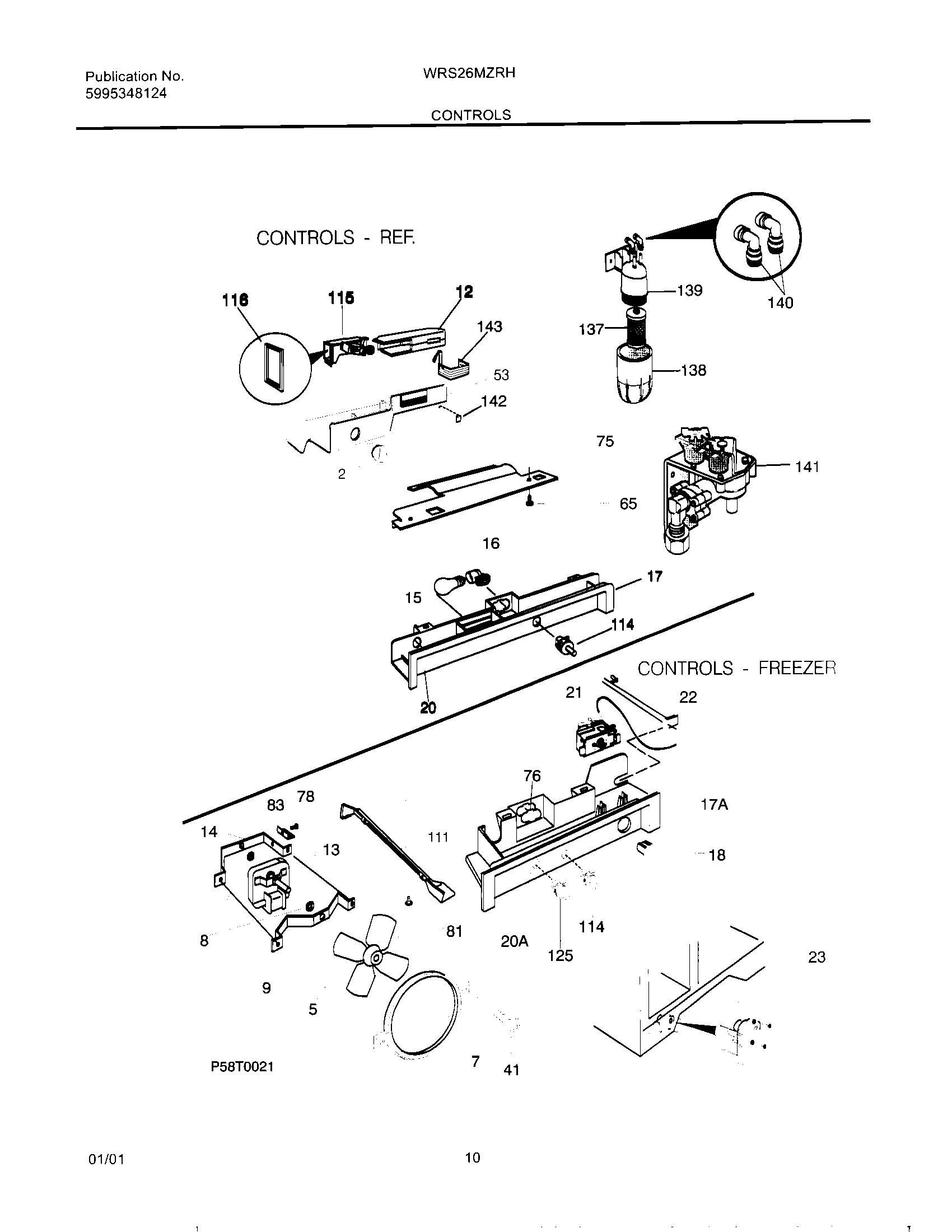

WRS26MZRHD0 11 – CONTROLS

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	215474201 Frigidaire Refrigerator Washer
NI	218904301 Frigidaire Refrigerator O-Ring Cup P1
NI	COVER-DEFROST TIMER, TOP
NI	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
NI	WCI 218731102
NI	WIRING HARNESS,FILTER HEATER
NI	SHIELD-DEFROST TIMR,BTM
2	WCI 215028605
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5304414684
12	WCI 215809600
13	WCI 215426200
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17	CONTROL BOX, FRZR
17	WCI 5303296805
18	WCI 5303308568
20	WCI 5303308611
20	WCI 5303296804
21	WCI 5303300027
22	WCI 5303319683
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5304455651 Frigidaire Refrigerator Screw
53	WCI 215809510
65	WCI 5303001361
75	WCI 218465101
76	WCI 218225800
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303297842
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011505
116	WCI 215011400
125	WCI 215334201
137	WCI 218904602
138	WCI 240370205
139	WCI 218893201
140	WCI 218518700
141	218832401 Frigidaire Water Inlet Valve
141	Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
142	WCI 218657701
143	WCI 218696700
