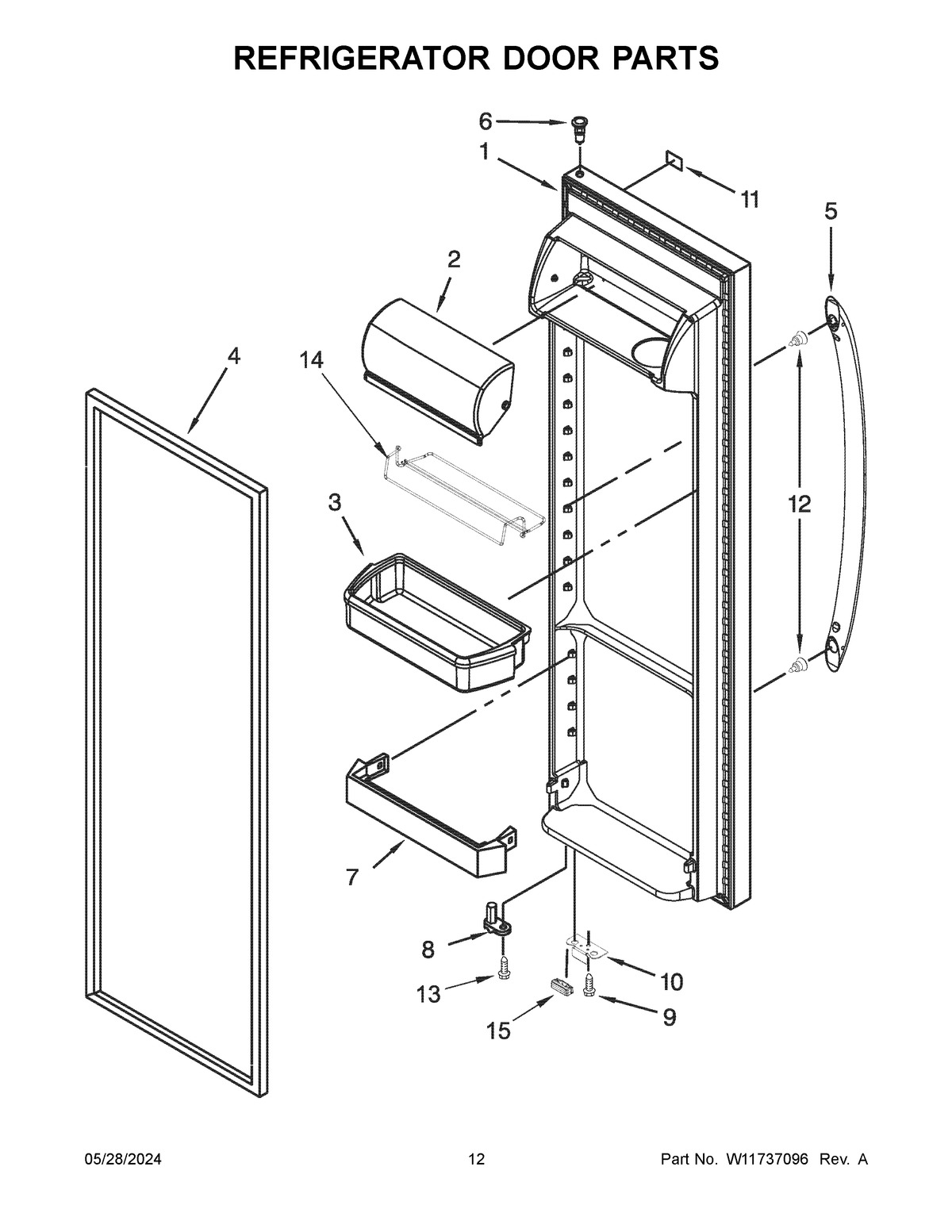

WRS325SDHB10 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ALW10912126 Whirlpool Refrigerator Door Assembly (Black)
1BLW10912320 Whirlpool Refrigerator FIP Door Assembly
1LW10912118 Whirlpool Refrigerator Door FIP
2WP2256101 Whirlpool Dairy Door
3BIN-CNTLVR
42159075 Whirlpool Door Gasket Seal
4A2159083 Whirlpool Gasket Door
5BW11450223 Whirlpool Handle
5W11432251 Whirlpool Refrigerator Handle
5AW11450221 Whirlpool Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11223753 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10296804 Whirlpool Refrigerator Screw
14W11517647 Whirlpool Refrigerator Shelf CANT
15AW10407187 Whirlpool Refrigerator Door Bumper
15BUMPER, DOOR (WHITE)
