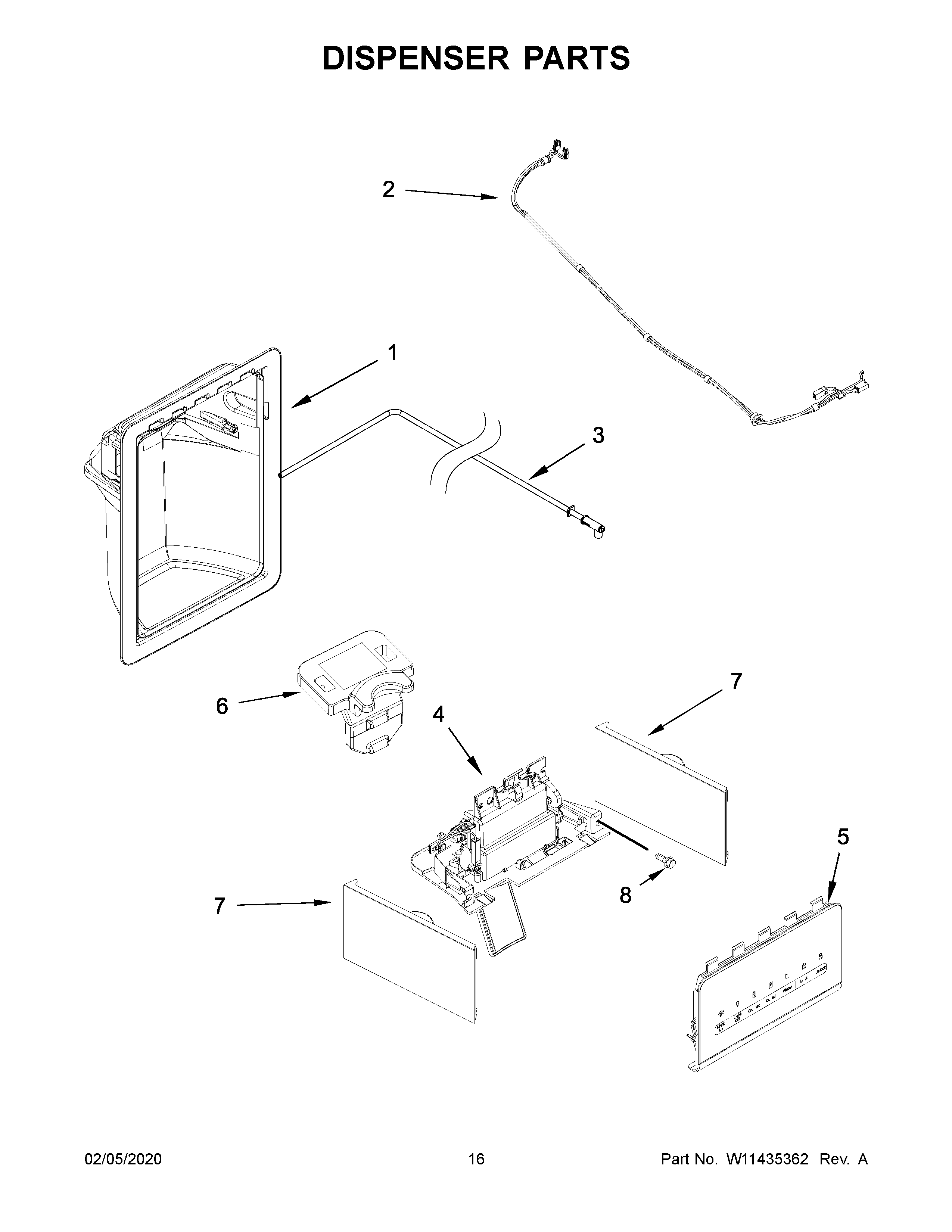

WRS325SDHV04 09 – DISPENSER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10913117 Whirlpool Refrigerator Wire Harness
3	W11163765 Whirlpool Refrigerator Fitting
4B	DOOR-ICE
4A	W11678833 Whirlpool Ice Door
4	DOOR-ICE
5	W11518204-includeCORE Whirlpool W11518204 Refrigerator Electronic Control Board + Core
6	W11397167 Whirlpool Refrigerator Retainer
7	W11311797 Whirlpool Refrigerator Cover
7C	W11311800 Whirlpool Refrigerator Cover
7B	W11311799 Whirlpool Refrigerator Cover
7A	W11311798 Whirlpool Cover Assembly
8	WP8281163 Whirlpool Refrigerator Screw
