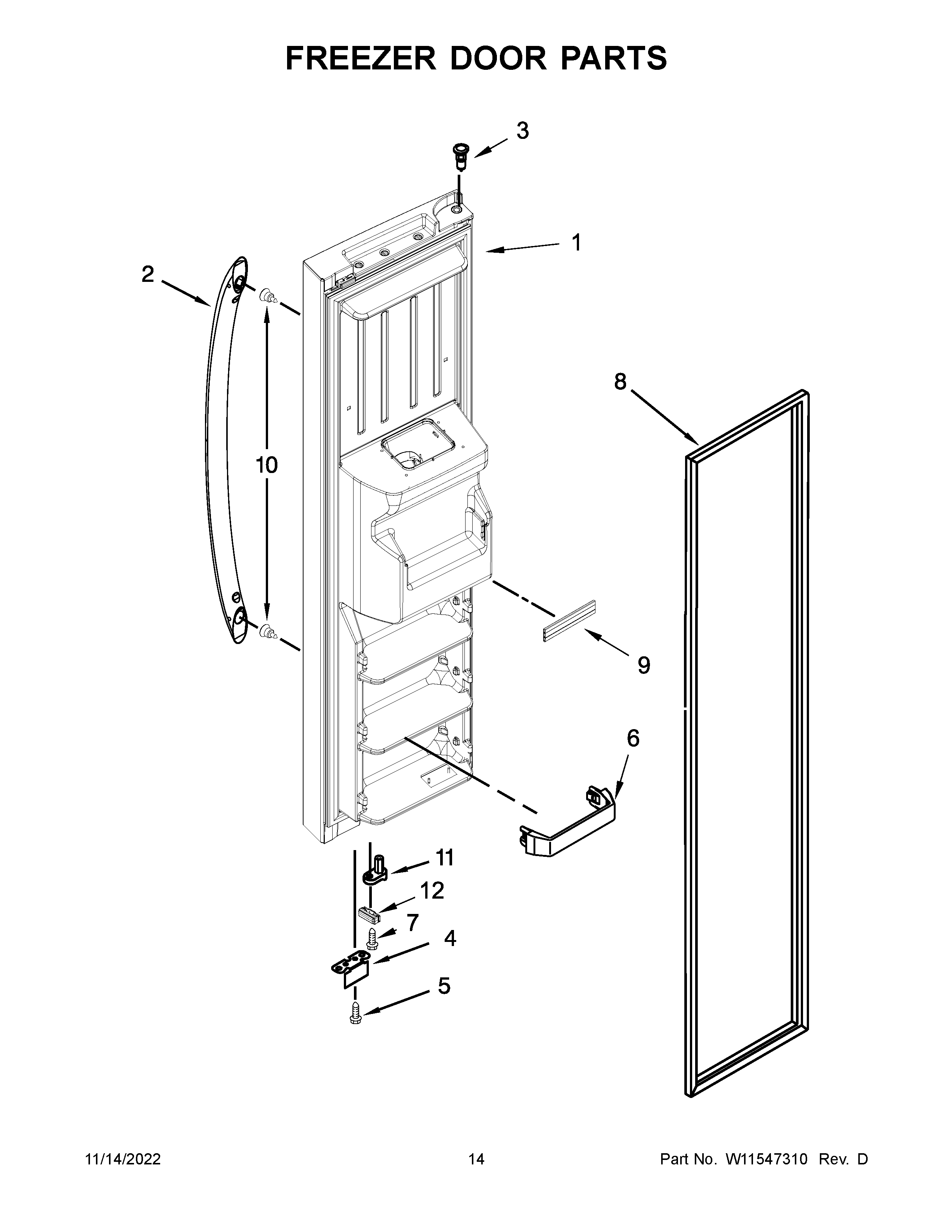

WRS325SDHV08 08 – FREEZER DOOR PARTS

WRS325SDHV08 08 – FREEZER DOOR PARTS

Written by

in

WRS325SDHV08 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CLW10913113 Whirlpool Refrigerator DOR-FIP
1BLW11026362 Whirlpool Refrigerator Door Kit
1ALW11026364 Whirlpool Refrigerator FIP Door
1LW11026363 Whirlpool Refrigerator Door FIP
2BW11450223 Whirlpool Handle
2AW11450221 Whirlpool Handle
2W11432251 Whirlpool Refrigerator Handle
2CW11542651 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W11557261 Whirlpool Refrigerator Bracket Assembly
5SCREW
6WP2309718 Whirlpool Refrigerator Door Trim
7WPW10296804 Whirlpool Refrigerator Screw
8A2159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
8BW10136735 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11W11661926 Whirlpool Refrigerator Door Cam
12BW11573367 Whirlpool Refrigerator Door Bumper
12AW10407187 Whirlpool Refrigerator Door Bumper
12BUMPER, DOOR (WHITE)
