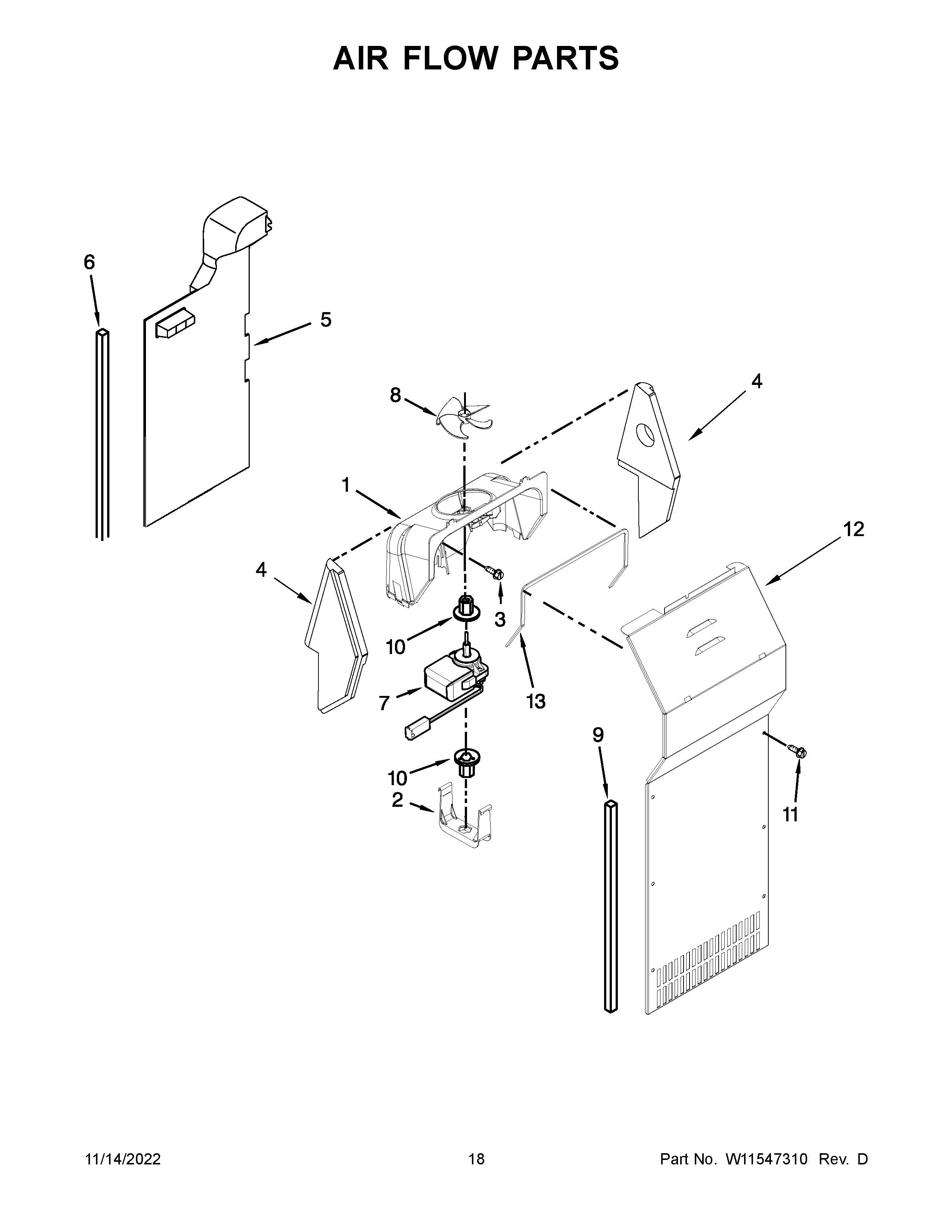

WRS325SDHV08 10 – AIR FLOW PARTS

Products

PositionProduct
1W11263195 Whirlpool Refrigerator Scroll Fan
2W11700295 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
44388358 Whirlpool Refrigerator Support Bracket
5W11427505 Whirlpool Air Duct Refrigerator
64388500 Whirlpool Refrigerator Gasket
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11WP693995 Whirlpool Screw
12WPW10463013 Whirlpool Refrigerator Evaporator Cover
13WP2155789 Whirlpool Refrigerator Gasket
