WRS325SDHV10 05 – FREEZER LINER PARTS

WRS325SDHV10 05 – FREEZER LINER PARTS

Written by

in

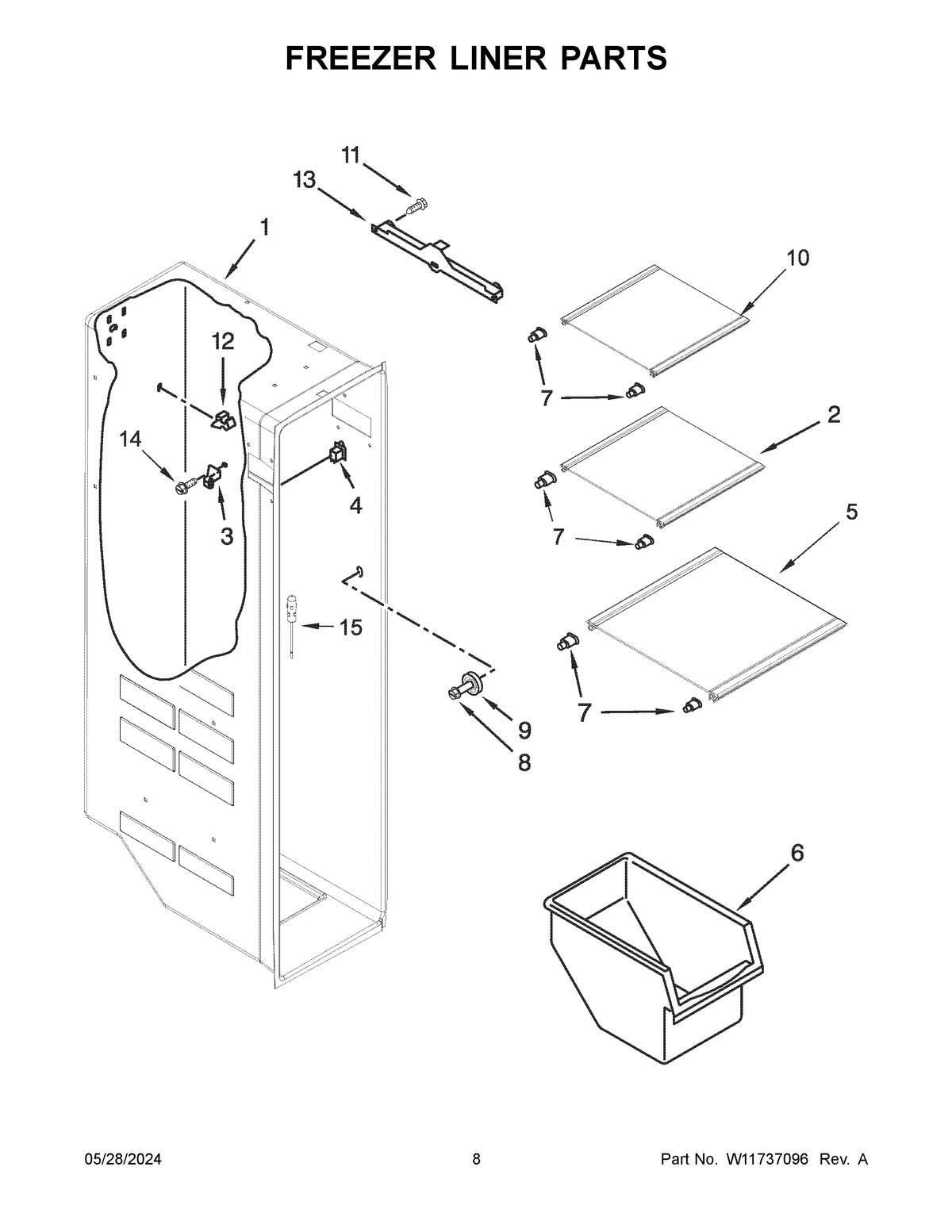

WRS325SDHV10 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SEVICEABLE PART)
2W11162572 Whirlpool Refrigerator Wire Shelf
34388405 Whirlpool Refrigerator Shelf Stud
4W11396033 Whirlpool Refrigerator Rocker Switch
5W11546980 Whirlpool Refrigerator Glass Shelf
6W11577967 Whirlpool Freezer Bin
7WPW10130299 Whirlpool Refrigerator Cup
8WP3-24004-109 Whirlpool Refrigerator Screw
9W11223328 Whirlpool Refrigerator Shelf Stud
10W11162576 Whirlpool Refrigerator Wire Shelf
11718257 Whirlpool Dishwasher Screw
122215823 Whirlpool Refrigerator Clip
13AW10845583 Whirlpool Refrigerator Track
13W10845585 Whirlpool Refrigerator Track
14W10142289 Whirlpool Air Conditioner Screw
15WPW10384183 Whirlpool Thermistor
