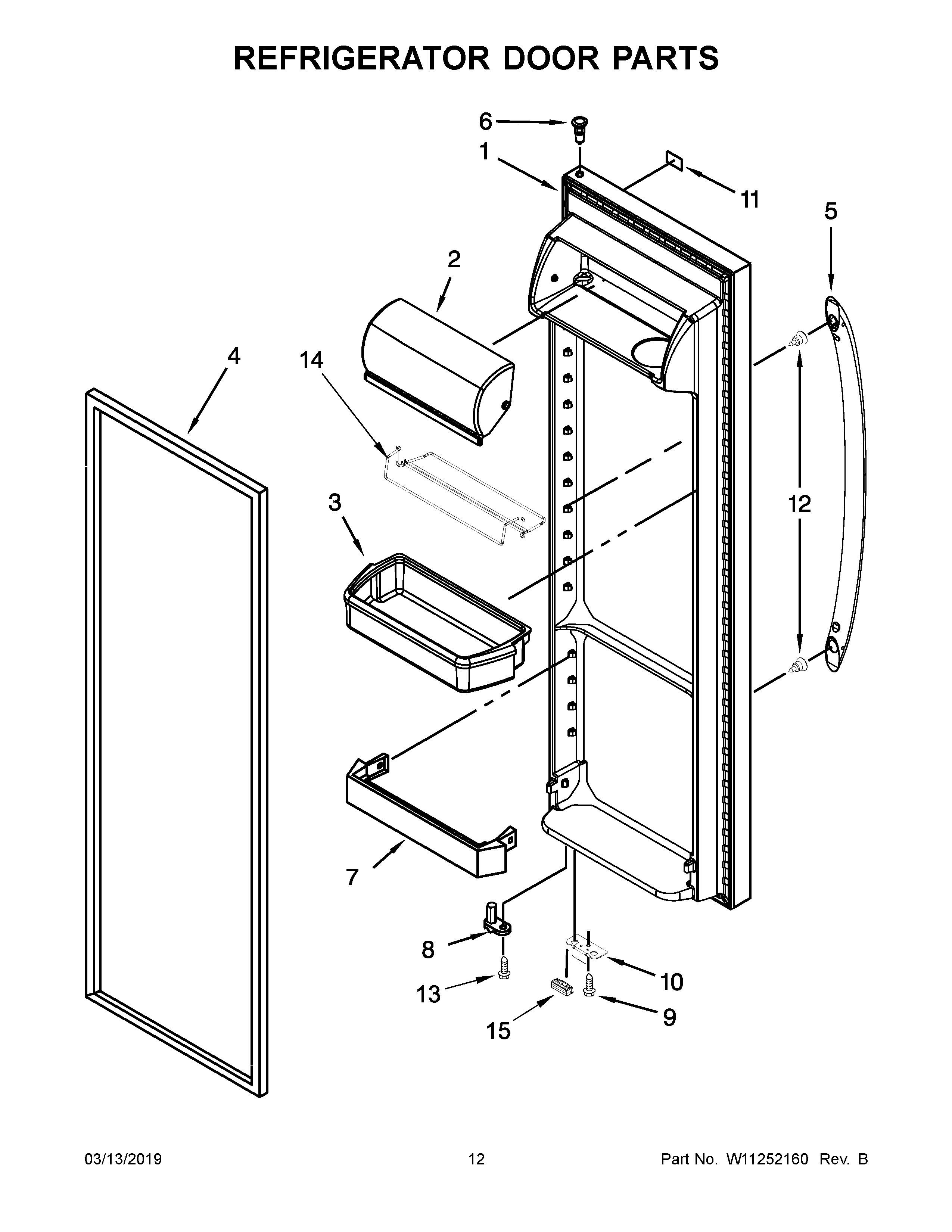

WRS325SDHW01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1C	LW10912110 Whirlpool Refrigerator Door Service Kit RC 25 (Dropship)
1	LW10912118 Whirlpool Refrigerator Door FIP
1A	LW10912126 Whirlpool Refrigerator Door Assembly (Black)
1B	LW10912320 Whirlpool Refrigerator FIP Door Assembly
2	WP2256101 Whirlpool Dairy Door
3	BIN-CNTLVR
4	2159075 Whirlpool Door Gasket Seal
4A	2159083 Whirlpool Gasket Door
4B	WPW10136734 Whirlpool Refrigerator Door Gasket
5A	W11450221 Whirlpool Handle
5B	W11450223 Whirlpool Handle
5	W11432251 Whirlpool Refrigerator Handle
5C	HANDLE-REFRIGERATOR SS
6	WP2182181 Whirlpool Refrigerator Thimble
7	WP2309941 Whirlpool Refrigerator Door Bar Trim
8	W11397972 Whirlpool Refrigerator Door Cam
9B	WPW10308489 Whirlpool Refrigerator Screw
9A	WP98008545 Whirlpool Screw
9	WPW10142283 Whirlpool Refrigerator Screw
10	W11557261 Whirlpool Refrigerator Bracket Assembly
11	W11223753 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	WP3400012 Whirlpool Refrigerator Screw
14	W11034218 Whirlpool Refrigerator Cantilever Shelf
15B	W11573367 Whirlpool Refrigerator Door Bumper
15A	W10407187 Whirlpool Refrigerator Door Bumper
15	BUMPER, DOOR (WHITE)
