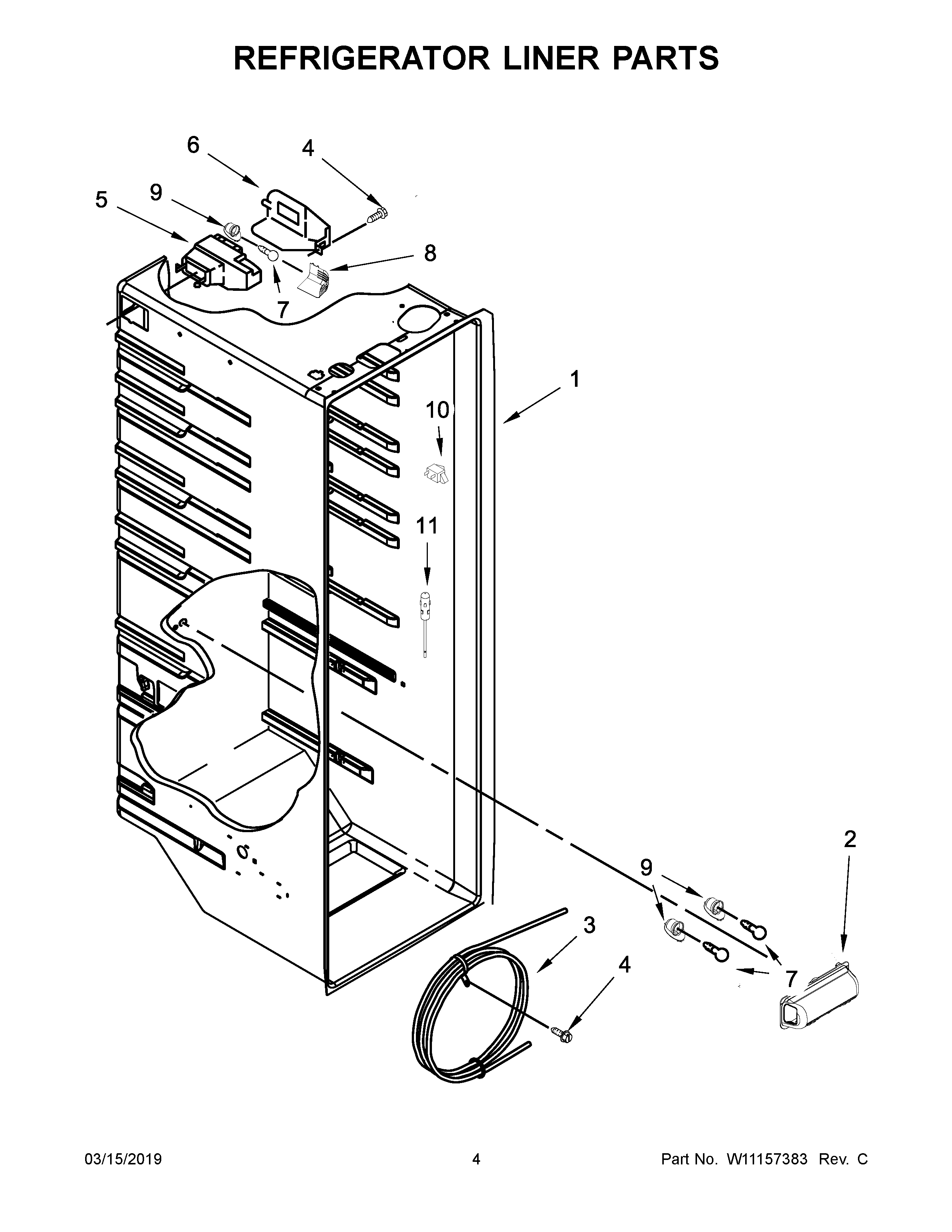

WRS325SDHZ00 03 – REFRIGERATOR LINER PARTS

WRS325SDHZ00 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS325SDHZ00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11239891 Whirlpool Refrigerator Light Lens
3W11566768 Whirlpool Refrigerator Reservoir
4W10141518 Whirlpool Refrigerator Screw
5W11645127 Whirlpool Diffuser
6W11048608 Whirlpool Refrigerator Cover
7W11216993 Whirlpool Refrigerator Light Bulb
8W10900030 Whirlpool Refrigerator Cover
9W11447232 Whirlpool Refrigerator Socket
10W11384469 Whirlpool Door Switch
11WPW10384183 Whirlpool Thermistor
