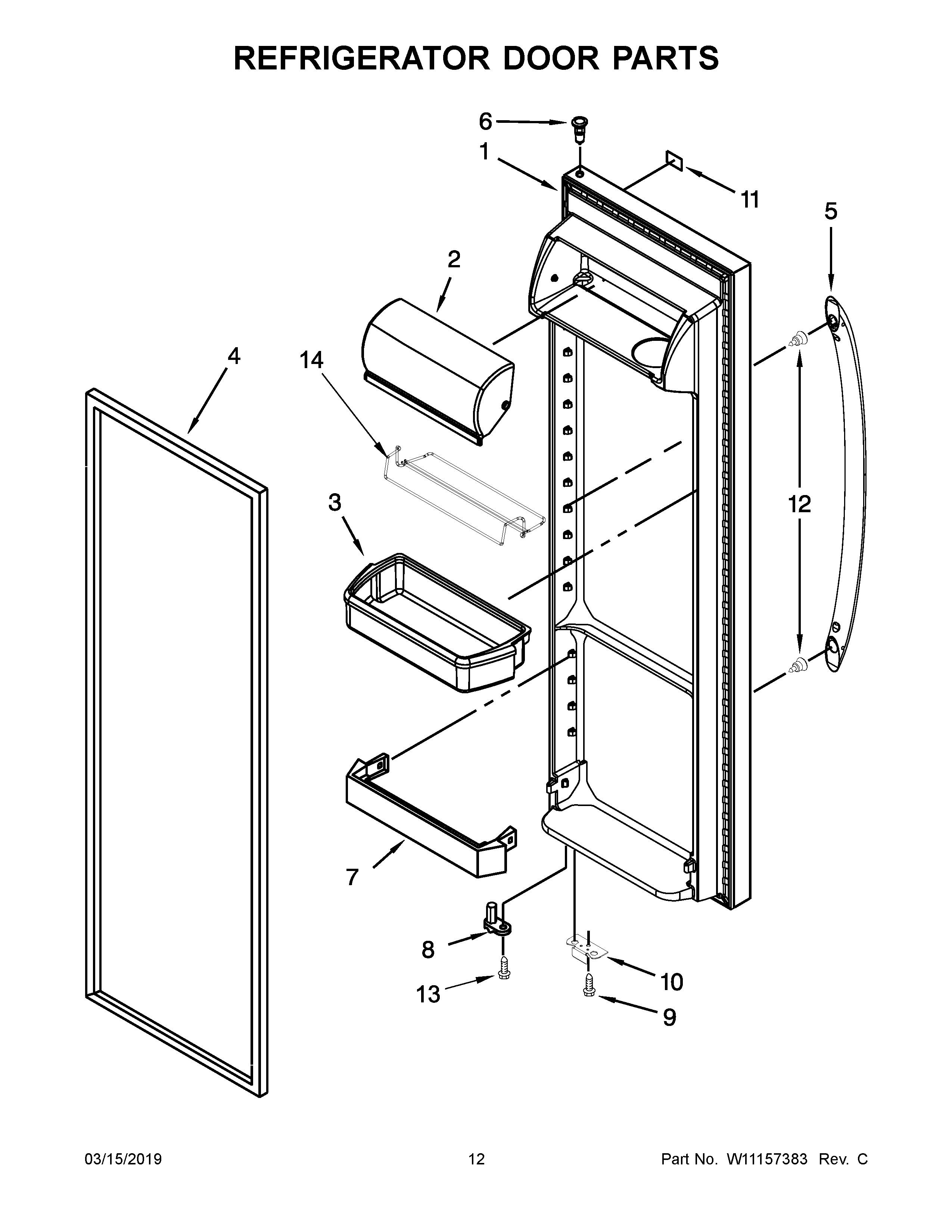

WRS325SDHZ00 07 – REFRIGERATOR DOOR PARTS

WRS325SDHZ00 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS325SDHZ00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10912118 Whirlpool Refrigerator Door FIP
1ALW10912126 Whirlpool Refrigerator Door Assembly (Black)
1BLW10912320 Whirlpool Refrigerator FIP Door Assembly
1CLW10912110 Whirlpool Refrigerator Door Service Kit RC 25 (Dropship)
2WP2256101 Whirlpool Dairy Door
3BIN-CNTLVR
42159075 Whirlpool Door Gasket Seal
4A2159083 Whirlpool Gasket Door
4BWPW10136734 Whirlpool Refrigerator Door Gasket
5W11432251 Whirlpool Refrigerator Handle
5AW11450221 Whirlpool Handle
5BW11450223 Whirlpool Handle
5CHANDLE-REFRIGERATOR SS
6BUMPER, DOOR (WHITE)
6BW11573367 Whirlpool Refrigerator Door Bumper
6AW10407187 Whirlpool Refrigerator Door Bumper
8W11397972 Whirlpool Refrigerator Door Cam
9WPW10142283 Whirlpool Refrigerator Screw
9AWP98008545 Whirlpool Screw
9BWPW10308489 Whirlpool Refrigerator Screw
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11223753 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10296804 Whirlpool Refrigerator Screw
14W11034218 Whirlpool Refrigerator Cantilever Shelf
