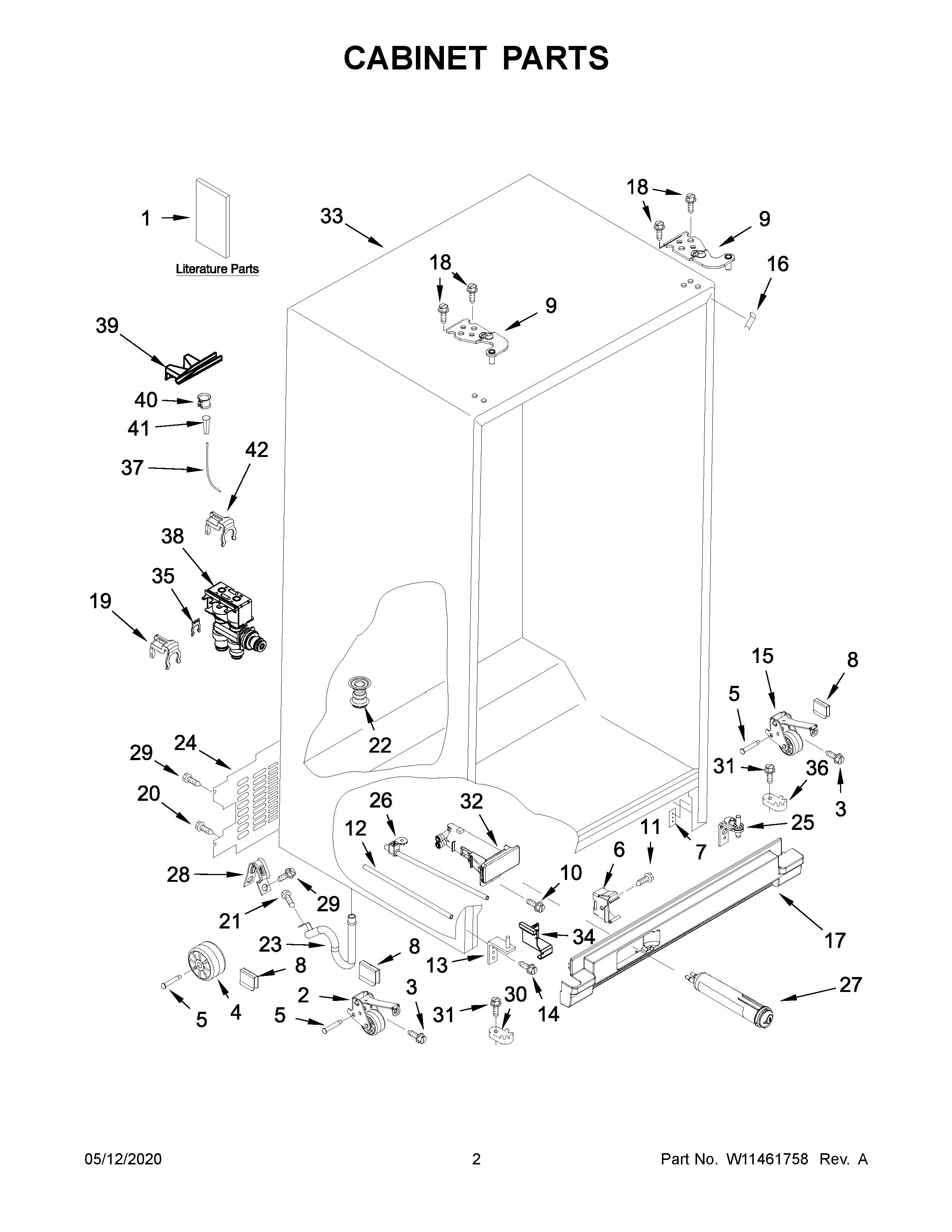

WRS325SDHZ05 02 – CABINET PARTS

WRS325SDHZ05 02 – CABINET PARTS

Written by

in

WRS325SDHZ05 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	USE AND CARE GUIDE
1A	TECH SHEET
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
6	WP2155013 Whirlpool Refrigerator Clip
7A	W10904380 Whirlpool Plate
7	W11036715 Whirlpool Refrigerator Plate
8	W11594405 Whirlpool Axle
9	W11505709 Whirlpool Refrigerator Door Hinge
9A	W11505710 Whirlpool Refrigerator Door Hinge
10	SCREW
11	WP489128 Whirlpool Refrigerator Screw
12	W11162036 Whirlpool Refrigerator Water Tube
13	W11687636 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16B	W11219642 Whirlpool Refrigerator Filler
16A	W11219641 Whirlpool Refrigerator Filler
16	W11219639 Whirlpool Refrigerator Filler
17B	W11282544 Whirlpool Refrigerator Grille
17A	W11282546 Whirlpool Refrigerator Grille
17	W11282545 Whirlpool Refrigerator Grille
18	SCREW, HINGE (WHITE)
19	W11091654 Whirlpool Refrigerator Double Lock WTR Connect
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	W11678840 Whirlpool Ice Door
25	W11399415 Whirlpool Refrigerator Door Hinge
26	W11162040 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	W11234470 Whirlpool Refrigerator Clamp
29	SCREW
30	W11679635 Whirlpool Door Cam
31	WP489483 Whirlpool Screw
32B	HOUSING
32	HOUSING
32A	HOUSING
33	CABINET (NOT A SERVICEABLE PART)
34	W10897565 Whirlpool Refrigerator Bracket
35	W11676611 Whirlpool Ring
35A	W11678575 Whirlpool Ring
36	CAM-DOOR
37	W10823511 Whirlpool Refrigerator Water Tube
38	WPW10179146 Whirlpool Refrigerator Water Inlet Valve
39	W11645360 Whirlpool Chute
40	W10861184 Whirlpool Refrigerator Clamp
41	4387491 Whirlpool Refrigerator Insert
42	W11252188 Whirlpool Connector
