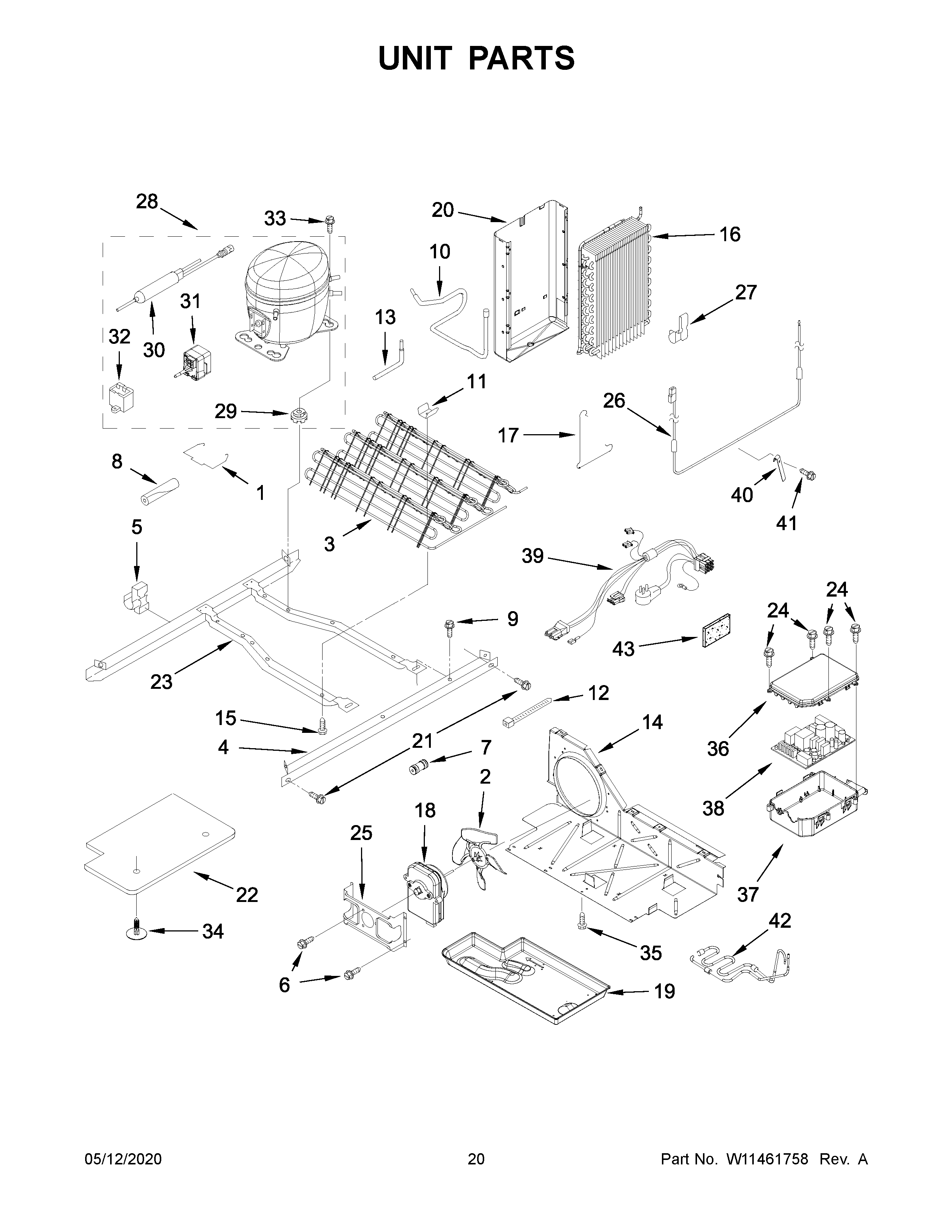

WRS325SDHZ05 11 – UNIT PARTS

WRS325SDHZ05 11 – UNIT PARTS

Written by

in

WRS325SDHZ05 11 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
1	W11661170 Whirlpool Clip
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11632924 Whirlpool Condenser
4	W10900442 Whirlpool Refrigerator Unit Rail
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W11183387 Whirlpool Refrigerator Tube
11	W10683556 Whirlpool Refrigerator Clip
12	WPW10339879 Whirlpool Wire Tie
13	W11676464 Whirlpool Tube
14	W10896764 Whirlpool Refrigerator Air Baffle
15	W11544659 Whirlpool Refrigerator Screw
16	WP2188823 Whirlpool Refrigerator Evaporator
18	W11578915 Whirlpool Condenser Motor
19	W11164129 Whirlpool Refrigerator Evaporator Tray
20	W10194475 Whirlpool Refrigerator Shield
21	489340 Whirlpool Refrigerator Screw
22	W10897560 Whirlpool Refrigerator Unit Cover
23	W10900446 Whirlpool Frame Assembly
24	WPW10171469 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	Clamp
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	WPW10143759 Whirlpool Dryer Filter
31	WPW10197428 Whirlpool Start Device
32	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
33	SCREW
34	489396 Whirlpool Refrigerator Clip
35	WP489464 Whirlpool Refrigerator Screw
36	W10334855 Whirlpool Refrigerator Cover
37	2323186 Whirlpool Refrigerator Housing
38	W11449482 Whirlpool Control Board
39	W11396386 Whirlpool Refrigerator Wire Harness
41	WP489478 Whirlpool Refrigerator Screw
42	W11678305 Whirlpool Tube
43	W11553819 Whirlpool Refrigerator Insulation
